Smart Lawn Connect Kit
Installation Instructions
Lift Control
Panel up

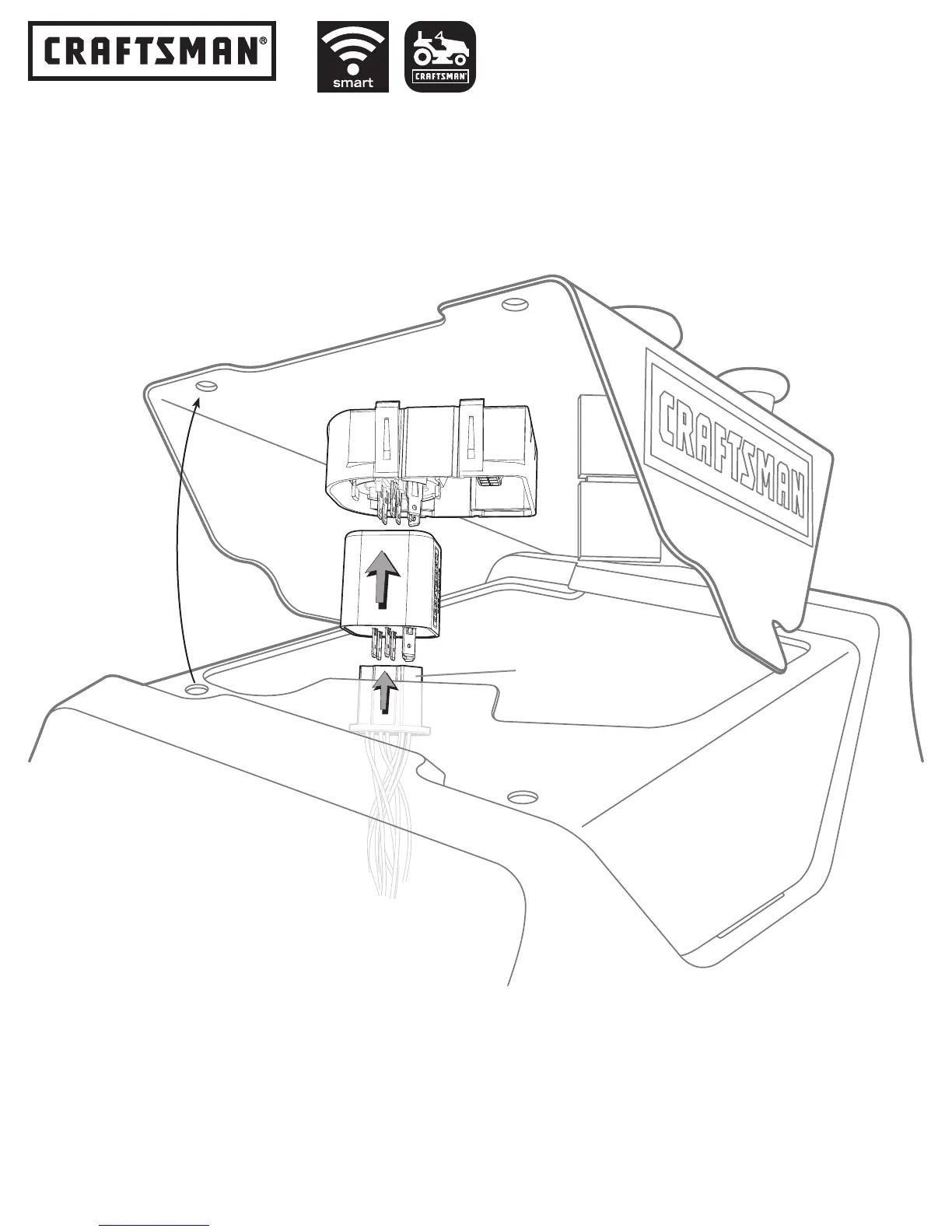

3 The back side of the Ignition Switch and Wire Harness Connector are revealed when the Control Panel is
lifted. The Wire Harness Connector can now be unplugged.
4 Note prong conguration and install the Craftsman Smart Lawn Connect Plug onto the Ignition Switch.
Then plug the Wire Harness Connector into the Craftsman Smart Lawn Connect Plug
(refer to illustration above).
Wire Harness
Connector
Ignition Switch
Craftsman Smart
Lawn Connect Plug
To Next Page
