10
ASSEMBLY & SET-UP

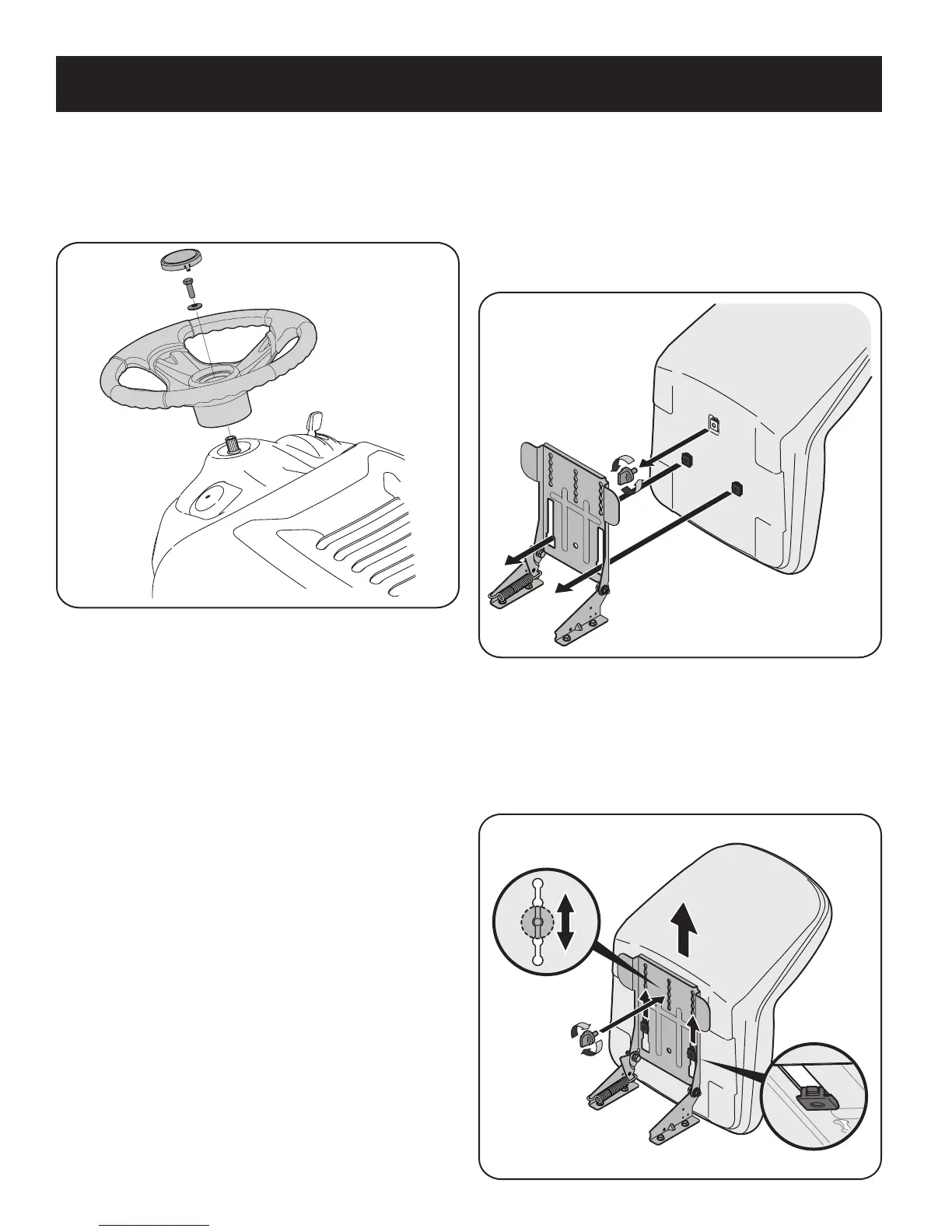

Attaching the Steering Wheel
1. If the steering wheel (a) for your tractor did not come attached, the
hardware for attaching it has been packed within the steering wheel (a),
beneath the steering wheel cap (b). Carefully pry OFF the steering wheel cap
(b) and remove the cupped washer (c) and hex bolt (d). See Figure 4.
Figure 4
2. With the wheels of the tractor pointing straight forward, place the steering
wheel (a) over the steering shaft (e). See Figure 4.
3. Place the cupped washer (c) -- cupped side down -- over the steering wheel
(a) and secure with the hex bolt (d). See Figure 4.
4. Place the steering wheel cap (b) over the center of the steering wheel (a) and
push downward until it “clicks” into place. See Figure 4.
Attaching the Seat
If the seat for your tractor was not attached at the factory, refer to the following steps.
NOTE: For shipping reasons, seats are either fastened to the tractor seat’s pivot
bracket with a cable tie, or mounted backward to the pivot bracket. In either case,
remove the seat from its shipping position.
1. Remove the seat adjustment knob (a) from the bottom of the seat (b). See
Figure 5.
Figure 5
2. Align the seat (b) over the seat pivot bracket (c) as shown in Figure 5 and fit
the seat (b) onto the seat pivot bracket (c) inserting the two tabs on the seat
(b) bottom into the slots on the seat pivot bracket (c).
3. Slide the seat (b) rearward in the seat pivot bracket (c), lining up the center
rear slot in the seat pivot bracket (c) with the remaining hole in the seat (b)
base. See Figure 6.
Figure 6
