1. Assemble handle lift bracket to rear set of holes on
left end of tine shield. Use two 5/16" x 1" carriage
bolts and 5/16" nylock hex nuts. Tighten. See gure 1.

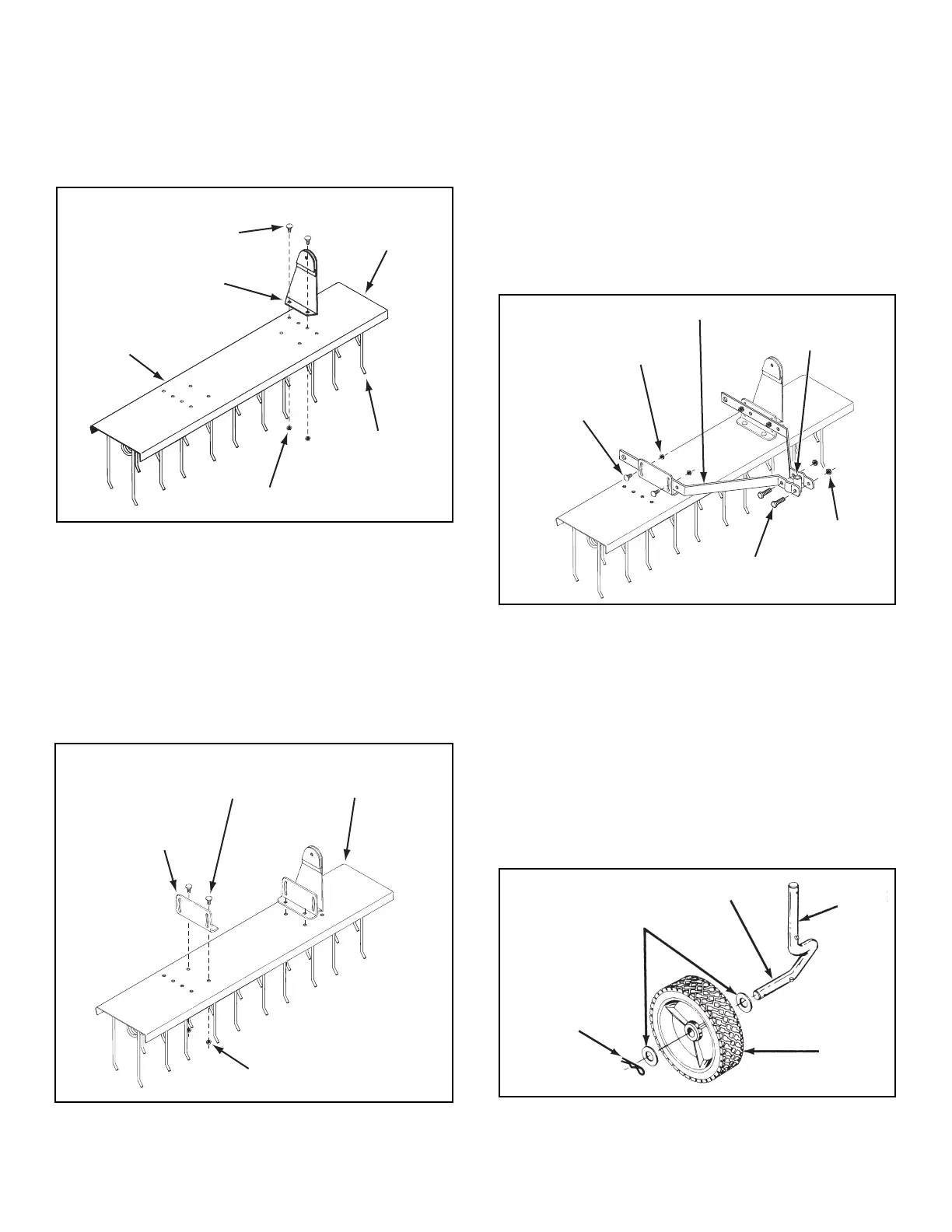

FIGURE 1
2. Assemble angle mounting brackets to tine shield
using four 5/16" x 1" carriage bolts and 5/16" nylock
hex nuts. Tighten. See gure 2.
FIGURE 2
FIGURE 3
5. Apply a light coating of oil to the axle.
6. Assemble a 5/8" washer, the wheel (long end of hub
rst) and another 5/8" washer onto axle. Secure with a
1/8" hairpin cotter. See gure 4.
FIGURE 4
ASSEMBLING DETHATCHER
APPLY OIL
5/8" WASHER
1/8" HAIRPIN
COTTER
WHEEL
AXLE
TINE
SHIELD
5/16" x 1"
CARRIAGE BOLT
HANDLE LIFT
BRACKET
5/16" NYLOCK NUT
TINES POINT
TO FRONT
LEFT END
5/16" x 1"
CARRIAGE BOLT
ANGLE
MOUNTING
BRACKET
5/16" NYLOCK NUT
TINE
SHIELD
3. Assemble mounting arms to inside of angle mounting
brackets using four 5/16" x 1" carriage bolts and 5/16"
nylock hex nuts. Fasten through rear set of holes in
mounting arms. Do not tighten until dethatcher is
mounted to tractor. See gure 3.
4. Loosely assemble front ends of mounting arms
together using two 3/8" x 1-1/4" hex bolts and 3/8"
nylock hex nuts. Place axle bushing between front
ends of mounting arms, centering bushing up and
down. Tighten bolts securely in front ends of
mounting arms. See gure 3.
5/16" x 1"
CARRIAGE BOLT
MOUNTING ARM
5/16" NYLOCK NUT
3/8" NYLOCK
NUT
3/8" x 1-1/4"
HEX BOLT
AXLE BUSHING
