8

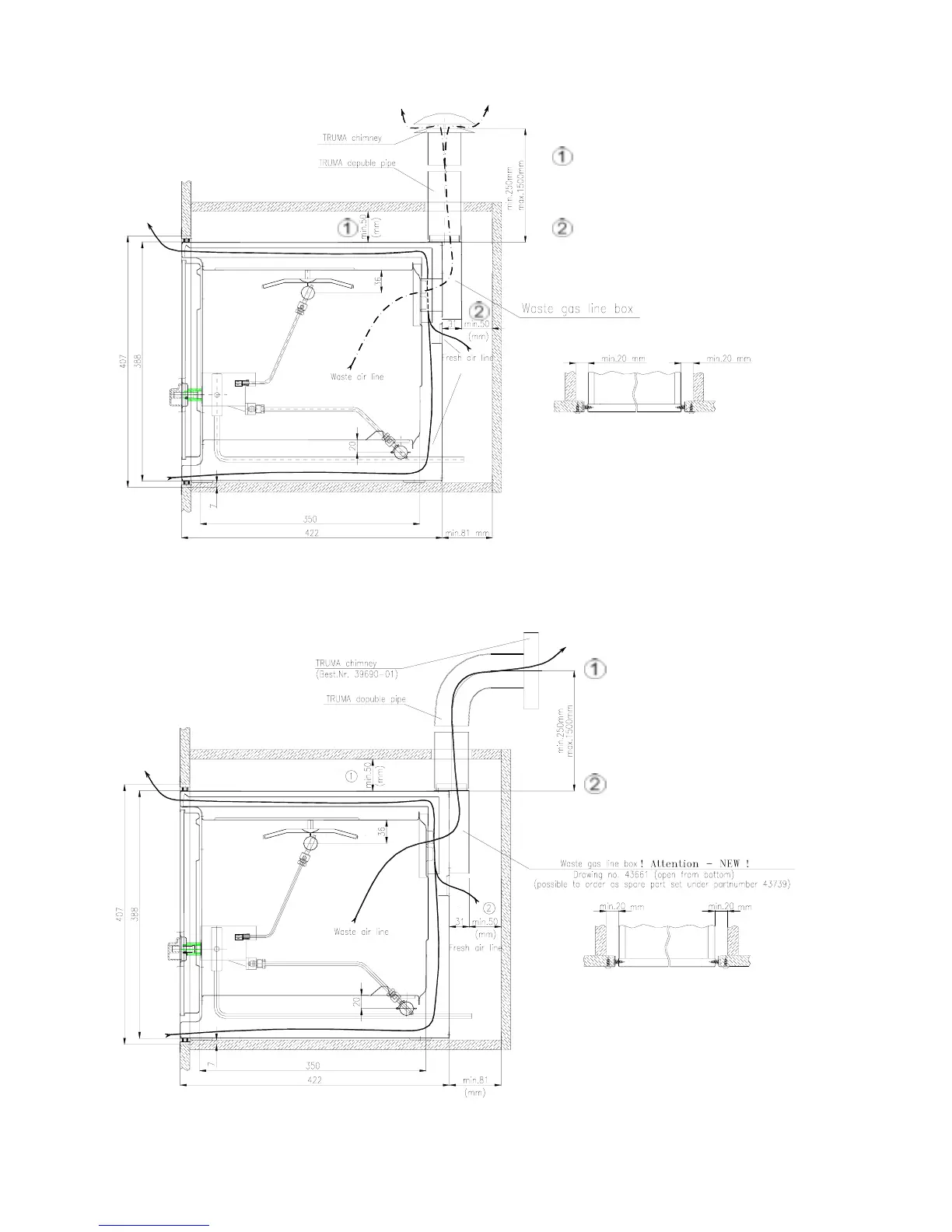

Fig 5
Installation of ovens with chimney vertical and with box for waste gas.
Fig. 6
Installation of ovens with chimney horizontal and with box for waste gas
.
Minimum distamce from
combustible areas backward and
towards right and left sides:
20 mm.
Minimum distance from
combustible areas upward: 50 mm.
Minimum distance of waste gas
line box from combustible areas:
50 mm
Section: the front side horizontally
with building in (see installation
drawing No. 39986)
Section: the front side horizontally
with building in ( see installation
drawing No. 39986)
Minimum distance from combustible
areas backward and towards right and
left sides: 20 mm.
Minimum distance from combustible
areas upward: 50 mm.
Minimum distance of waste gas line
box from combustible areas: 50 mm
