7

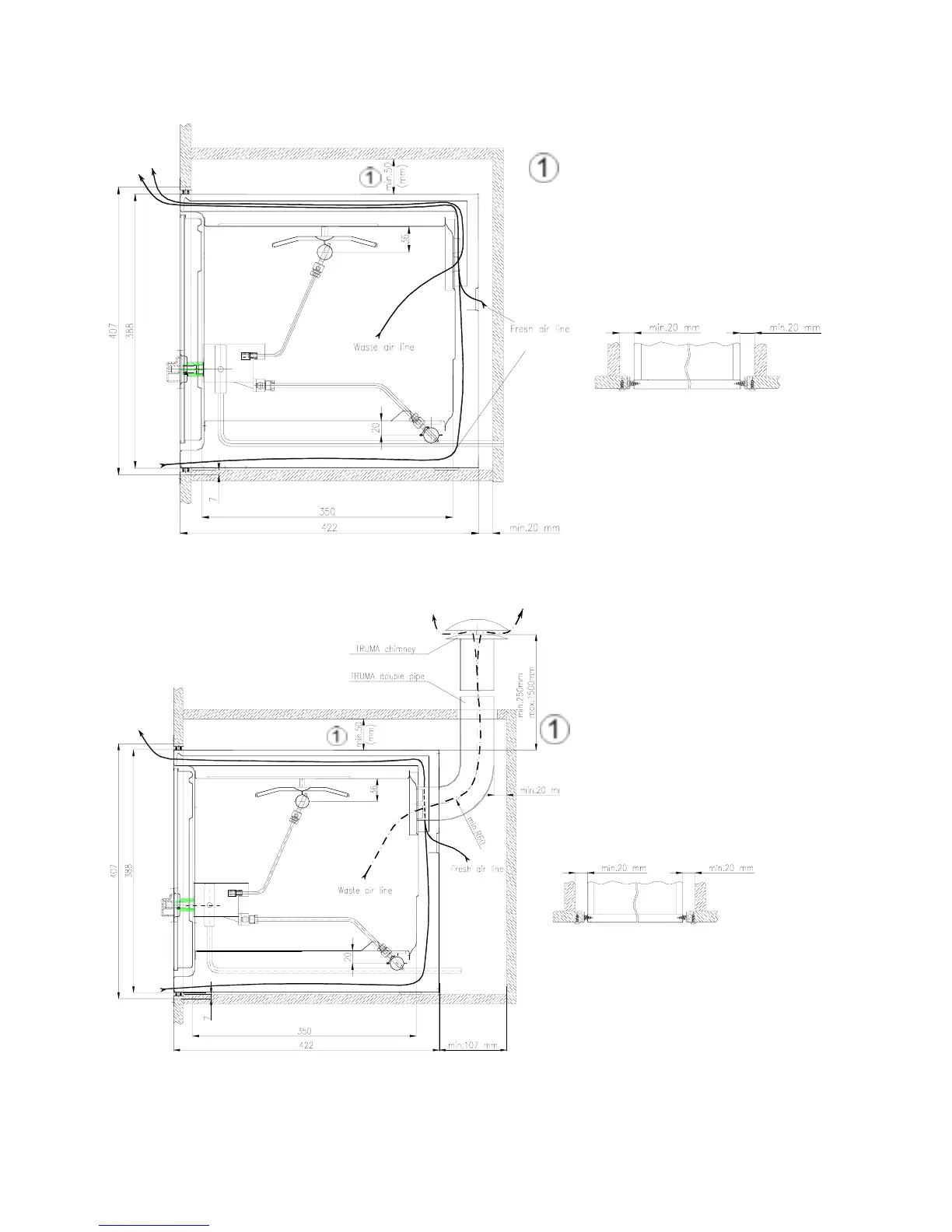

Fig 3
Installation of oven without chimney, front flue of waste gas.
Fig 4
Installation of oven with chimney horizontal – vertical.
Minimum distamce from combustible
areas backward and towards right and
left sides: 20 mm.
Minimum distance from combustible
areas upward: 50 mm.
Section: the front side horizontally
with building in (see installation
drawing No. 39986)
Minimum distamce from
combustible areas backward and
towards right and left sides: 20 mm.
Minimum distance from combustible
areas upward: 50 mm.
Section: the front side horizontally
with building in (see installation
drawing No. 39986)
