24 23 22 21 25

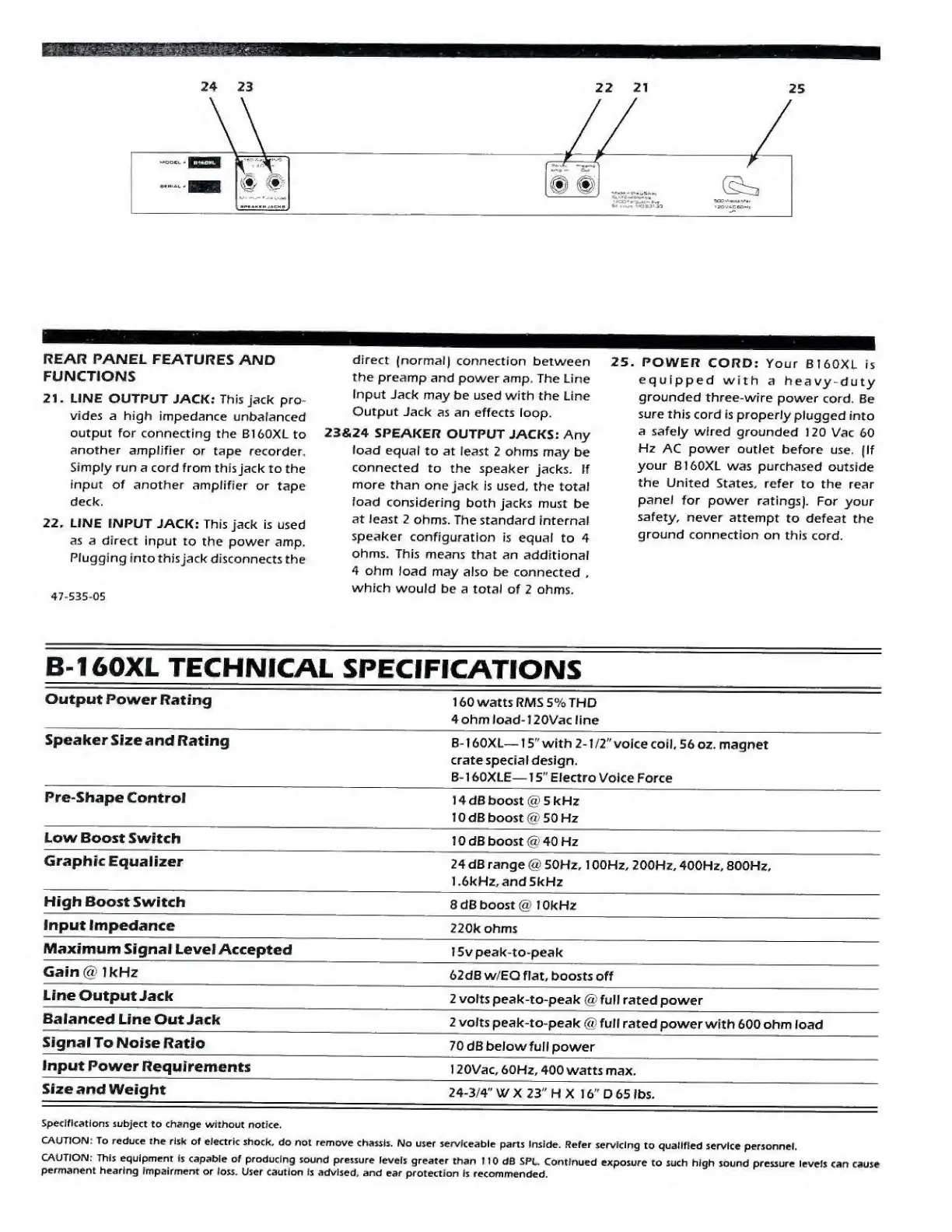

REAR PANEL FEATURES AND
FUNCTIONS
21. LINE OUTPUT JACK: This jack pro-
vides a high impedance unbalanced
output for connecting the B160XL to
another amplifier or tape recorder,
Simply run a cord from this jack to the
input of another ampfifier or tape
deck.
22. LINE INPUT JACK; This jack is used
as a direct input to the power amp.
Plugging into this jack disconnects the
47 - 5 35-05
direct (normal) connection between
the preamp and power amp. The Line
Input Jack may be used with the Line
Output Jack as an effects loop.
23&24 SPEAKER OUTPUT JACKS; Any
load equal to at least 2 ohms may be
connected to the speaker jacks. If
more than one jack is used, the total
load considering both jacks must be
at least 2 ohms. The standard internal
speaker configuration is equal to 4
ohms. This means that an additional
4 ohm load may also be connected ,
which would be a total of 2 ohms.
25. POWER CORD: Your B16QXL is
equipped with a heavy-duty
grounded three-wire power cord, Be
sure this cord is properly plugged into
a safely wired grounded 120 Vac 60
Hz AC power outlet before use, (if
your B160XL was purchased outside
the United States, refer to the rear
panel for power ratings). For your
safety, never attempt to defeat the
ground connection on this cord.
B- 1 6 0 XL TECHNICAL SPECIFICATIONS
Output Power Rating
160 watts RMS S%THD
4 ohm load-120Vac line
Speaker Size and Rating
B-16GXL— 15" with 2-1 IT voice coil, 56 oz, magnet
crate special design.
B-160XLE— T 5" Electro Voice Force
Pre-Shape Control
14 dB boost @5 kHz
10 dB boost @ 50 Hz
Low Boost Switch
10 dB boost @40 Hz
Graphic Equalizer
24 dB range @ 5QHz, 100Hz. 200Hz, 400Hz, 800Hz,
1.6kHz, andSkHz
High Boost Switch
8 dB boost @ T 0kHz
Input Impedance
220k ohms
Maximum Signal Level Accepted
T5vpeak-to-peak
Gain @ T kHz
62dB w/EQ flat, boosts off
Line Output Jack
2 volts peak-to-peak @full rated power
Balanced Line Out Jack
2 volts peak-to-peak @ fuff rated power with 600 ohm load
Signal To Noise Ratio
70 dB below fuff power
Input Power Requirements
120Vac 60Hz, 400 watts max.
Size and Weight
24-3/4'’ W X 23" H X 16" D 65 lbs.
Specifications subject to change without notice,
CAUTION: To reduce the risk of electric shock, do riot remove chassis. No user serviceable pans Inside. Refer servicing to qualified service personnel.
CAUTtON: This equipment Is capable of producing sound pressure levels greater than ItOdB SPL. Continued exposure to such high sound pressure levels can cause
permanent hearing impairment or loss. User caution is advised, and ear protection Is recocnmended.
