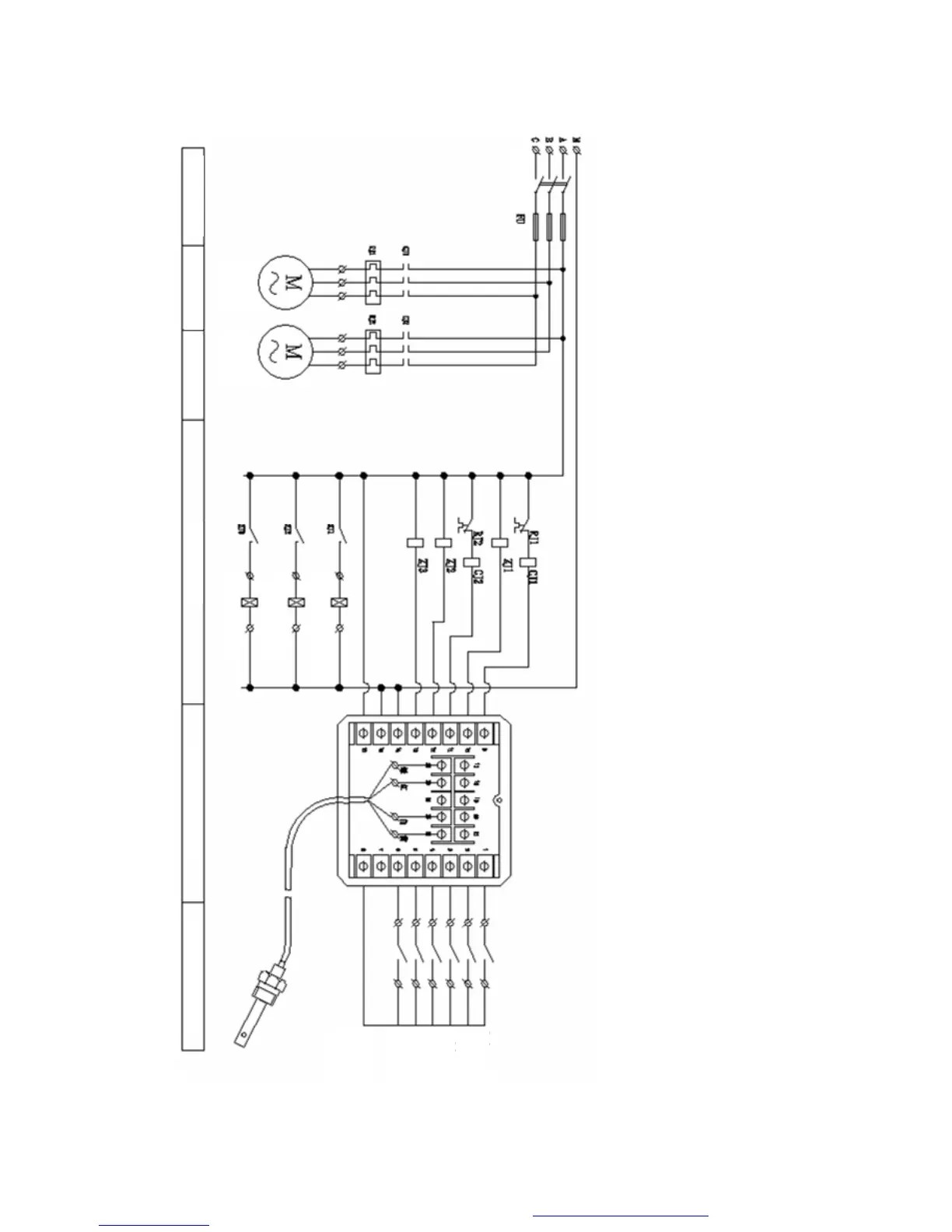

6 Electrical control circuit diagram 4 2313 (for reference)
High
pressure
pump
Low
pressure
pump
High pressure pump
Low pressure pump
Control execution
Controller ROC-2323
Signal control
Inlet magnetic valve
Flush magnetic valve
Detection
common terminal
Reset External control
Low feed of raw water
Low pressure High pressure High water level
Power inlet wire
Master switch
Over limit magnetic valve
