Creative Engineering ROCK-A-FIRE EXPLOSION - Page 132

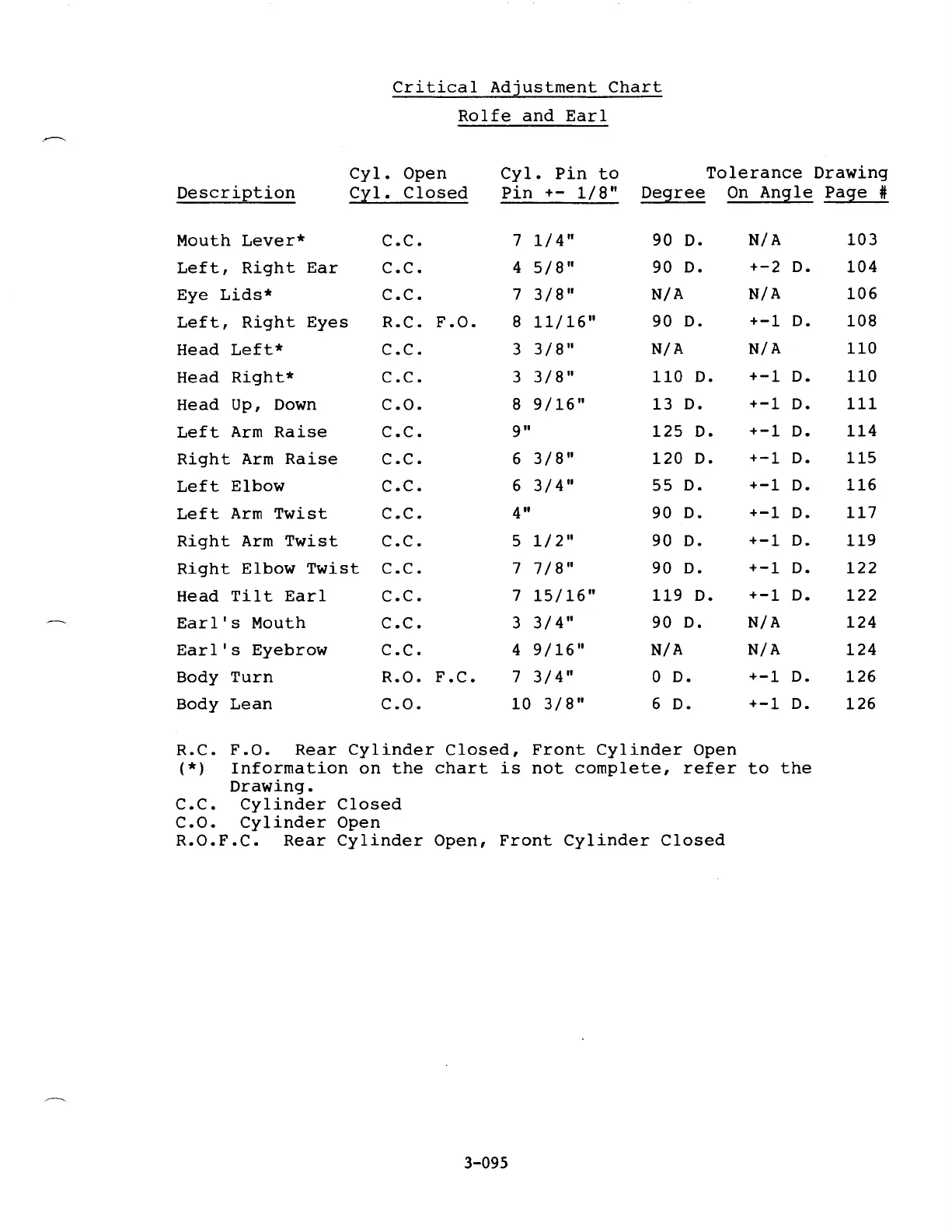

Critical Adjustment Chart
Rolfe and Earl
Description
Cyl. Open
Cyl. Closed
Cyl. Pin to
Pin +- 1/8"
Tolerance Drawing
Degree On Angle Page #
Mouth Lever* C.C.
Left, Right Ear C.C.
Eye Lids* C.C.
Left, Right Eyes R.C. F.O.
Head Left* C.C.
Head Right* C.C.
Head Up, Down C.O.
Left Arm Raise C.C.
Right Arm Raise c.c.
Left Elbow C.C.
Left Arm Twist C.C.
Right Arm Twist C.C.
Right Elbow Twist C.C.
Head Tilt Earl c.c.
Earl's Mouth C.C.
Earl's Eyebrow C.C.
Body Turn R.O. F.C.
Body Lean c.o.
7 1/4"
4 5/8"
7 3/8"
8 11/16"
3 3/8"
3 3/8"
8 9/16"
9"
6 3/8"
6 3/4"
4"
5 1/2"
7 7/8"
7 15/16"
3 3/4"
4 9/16"
7 3/4"
10 3/8"
90 D.
90 D.
N/A
90 D.
N/A
110 D.
13 D.
125 D.
120 D.
55 D.
90 D.
90 D.
90 D.
119 D.
90 D.
N/A
0 D.
6 D.
R.C. F.O. Rear Cylinder Closed, Front Cylinder Open
N/A
+-2 D.
N/A
+-1 D.
N/A
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-1 D.
N/A
N/A
+-1 D.
+-1 D.
(*) Information on the chart is not complete, refer to the
Drawing.
C.C. Cylinder Closed
c.o. Cylinder Open
R.O.F.C. Rear Cylinder Open, Front Cylinder Closed
3-095
103
104
106
108
110
110
111
114
115
116
117
119
122
122
124
124
126
126
