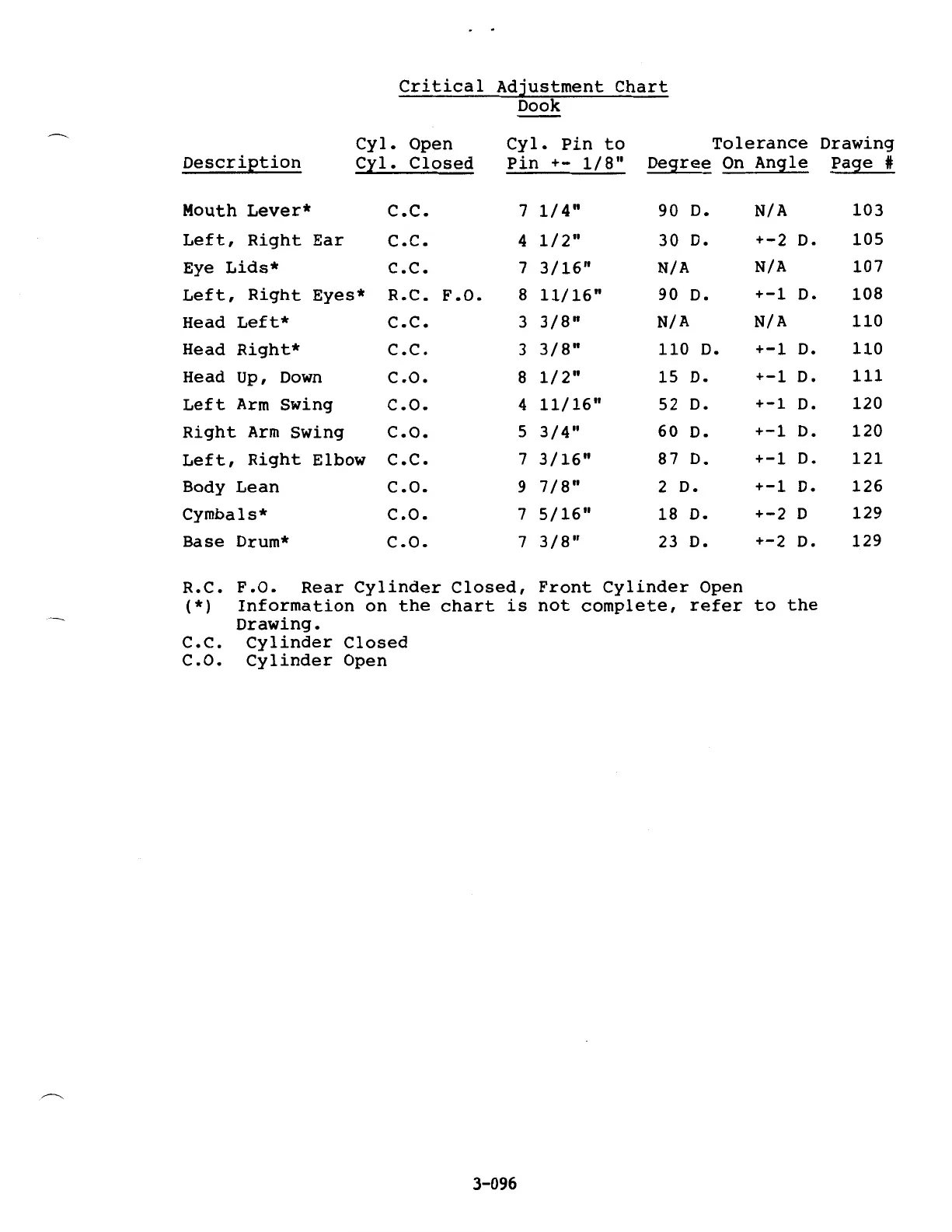

Critical
Adjustment Chart
Dook
Cyl.
Open Cyl. Pin to
Tolerance Drawing
Description
Cyl. Closed
Pin +- 1/8"
Degree On Angle
Page #
Mouth Lever* c.c. 7 1/4" 90
D.
N/A
103
Left, Right
Ear
c.c.
4
1/2"
30 D.
+-2
D.
105
Eye Lids*
c.c.
7
3/16"
N/A
N/A 107
Left, Right Eyes* R.C. F.O.
8
11/16"
90 D.
+-1 D. 108
Head Left*
c.c.
3
3/8"
N/A
N/A
110
Head Right* c.c.
3
3/8"
110 D.
+-1
D.
110
Head
Up, Down c.o.
8
1/2"
15 D.
+-1
D.
111
Left
Arm Swing c.o.
4
11/16" 52
D.
+-1
D.
120
Right Arm Swing
c.o.
5
3/4" 60
D.
+-1 D. 120
Left,
Right
Elbow
c.c.
7 3/16"
87 D.
+-1 D. 121
Body Lean
c.o.
9 7/8"
2 D.
+-1 D.
126
Cymbals*
c.o.
7 5/16" 18
D.
+-2
D
129
Base Drum*
c.o.
7 3/8"
23 D.
+-2 D.
129
R.C.
F.O. Rear Cylinder Closed,
Front Cylinder Open
(*) Information on the chart is
not complete, refer
to the
Drawing.
c.c.
Cylinder Closed
c.o.
Cylinder Open
3-096
