Creative Engineering ROCK-A-FIRE EXPLOSION - Page 134

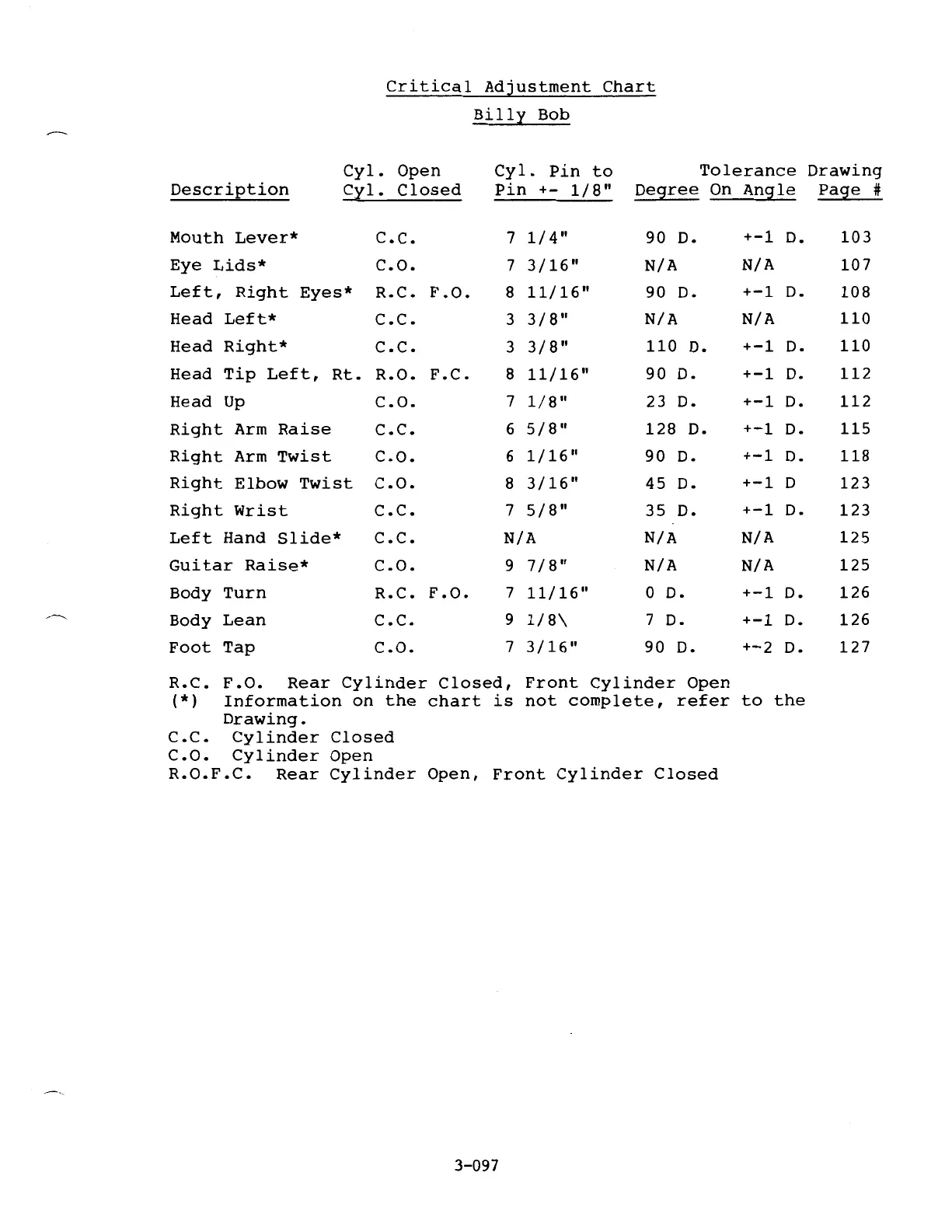

Critical Adjustment Chart
Billy Bob
Cyl. Open
Cyl. Pin to
Tolerance Drawing
Description
Cyl. Closed
Pin +-
1/8"
Degree On Angle
Page
#
Mouth Lever*
c.c.
7
1/4"
90 D.
+-1
D.
103
Eye Lids* c.o.
7 3/16"
N/A
N/A
107
Left,
Right
Eyes* R.C. F.O. 8 11/16"
90 D.
+-1
D. 108
Head Left*
c.c.
3
3/8"
N/A
N/A
110
Head Right* c.c.
3
3/8"
110 D.
+-1
D. 110
Head
Tip Left, Rt.
R.O. F.C.
8
11/16"
90 D.
+-1
D. 112
Head Up c.o.
7
1/8" 23 D.
+-1
D.
112
Right Arm Raise c.c.
6
5/8" 128 D.
+-1
D.
115
Right Arm Twist c.o.
6
1/16" 90 D.
+-1
D. 118
Right Elbow
Twist
c.o.
8
3/16" 45 D.
+-1
D
123
Right Wrist c.c. 7 5/8" 35 D.
+-1 D. 123
Left Hand Slide*
c.c. N/A N/A
N/A
125
Guitar Raise*
c.o.
9
7/8" N/A N/A 125
Body Turn
R.C.
F.O. 7 11/16" 0
D.
+-1
D. 126
~~
Body Lean
c.c.
9 1/8\ 7 D.
+-1
D. 126
Foot
Tap c.o.
7
3/16" 90
D.
+-2
D. 127
R.C. F.O. Rear Cylinder Closed, Front Cylinder Open
( *)
Information on the chart is
not complete,
refer
to the
Drawing.
c.c.
Cylinder Closed
c.o.
Cylinder Open
R.O.F.C. Rear Cylinder Open, Front Cylinder Closed
3-097
