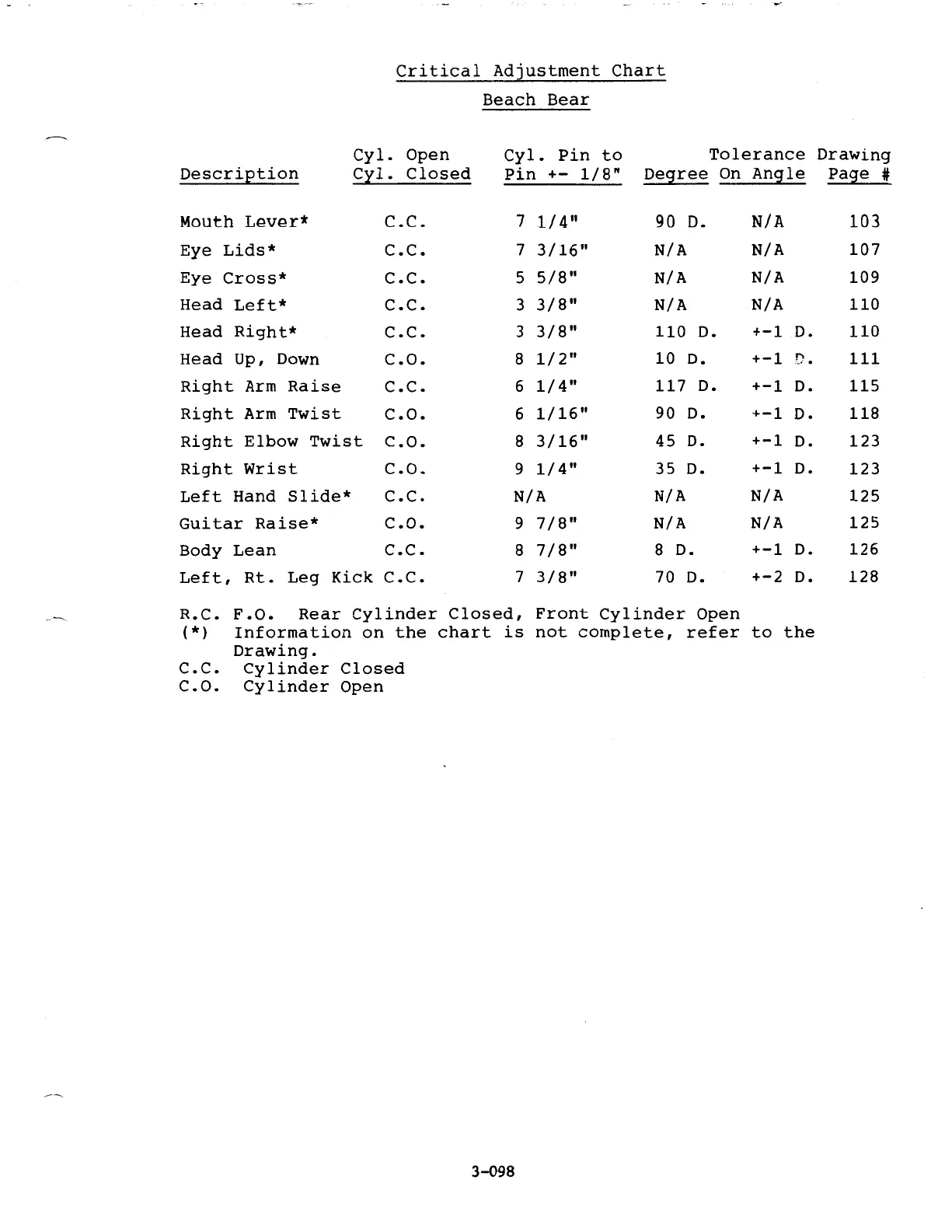

Critical Adjustment Chart
Beach Bear
Description
Cyl. Open
Cyl. Closed
Cyl. Pin to
Pin +- 1/8"
Tolerance Drawing
Degree On Angle Page #
Mouth Lever*
c.c.
7
1/4" 90 D.
N/A
103
Eye Lids* c.c. 7 3/16"
N/A N/A 107
Eye Cross* c.c.
5
5/8" N/A
N/A
109
Head Left*
c.c.
3 3/8"
N/A
N/A
110
Head Right*
c.c.
3
3/8" 110 D.
+-1
D. 110
Head Up, Down c.o. 8 1/2"
10 D.
+-1
f"\
111
· .....
Right Arm Raise c.c. 6 1/4" 117
D.
+-1
D.
115
Right Arm Twist c.o. 6 1/16"
90 D.
+-1
D. 118
Right Elbow Twist c.o. 8 3/16" 45
D.
+-1
D. 123
Right Wrist
c.o. 9 1/4" 35 D.
+-1
D. 123
Left Hand Slide* c.c.
N/A N/A
N/A
125
Guitar Raise*
c.o. 9
7/8" N/A N/A
125
Body Lean
c.c.
8
7/8"
8
D.
+-1
D.
126
Left,
Rt. Leg Kick c.c. 7
3/8" 70 D.
+-2
D. 128
R.C. F.O. Rear Cylinder Closed,
Front Cylinder Open
( *) Information on the chart is not complete, refer to the
Drawing.
c.c.
Cylinder Closed
c.o.
Cylinder Open
3-Q98
