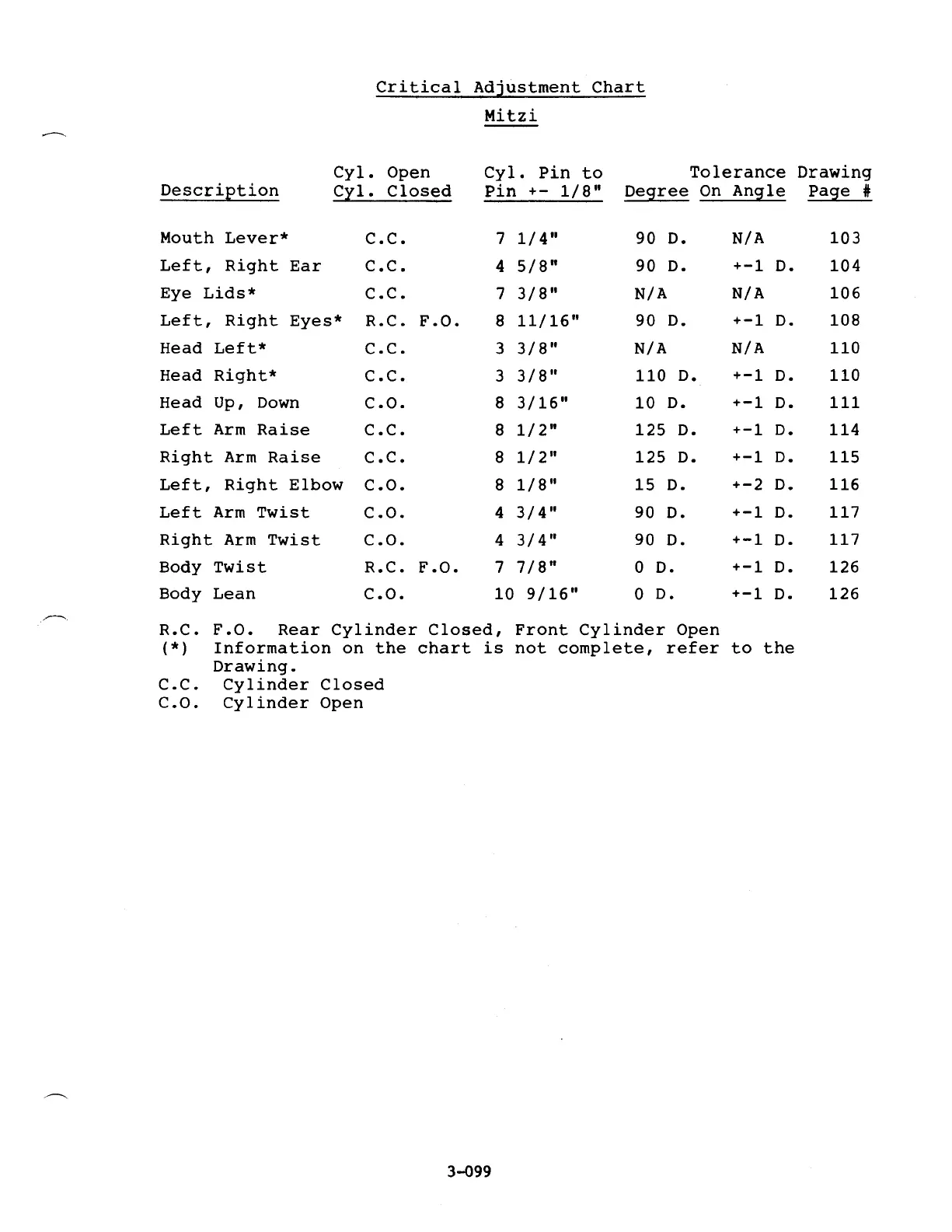

Critical Adjustment Chart
Mitzi
Description
Cyl. Open
Cyl. Closed
Cyl. Pin to
Pin +- 1/8"
Tolerance Drawing
Degree On Angle Page #
Mouth Lever* c.c.
Left, Right Ear c.c.
Eye Lids* c.c.
Left, Right Eyes* R.C. F.O.
Head Left* C.C.
Head Right* c.c.
Head Up, Down c.o.
Left Arm Raise C.C.
Right Arm Raise C.C.
Left, Right Elbow C.O.
Left Arm Twist C.O.
Right Arm Twist C.O.
Body Twist R.C. F.O.
Body Lean C.O.
7 1/4"
4 5/8"
7 3/8"
8 11/16"
3 3/8"
3 3/8"
8 3/16"
8 1/2"
8 1/2"
8 1/8"
4 3/4"
4 3/4"
7 7/8"
10 9/16"
90 D.
90 D.
N/A
90 D.
N/A
110 D.
10 D.
125 D.
125 D.
15 D.
90 D.
90 D.
0 D.
0
D.
R.C. F.O. Rear Cylinder Closed, Front Cylinder Open
N/A
+-1 D.
N/A
+-1 D.
N/A
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-2 D.
+-1 D.
+-1 D.
+-1 D.
+-1 D.
(*) Information on the chart is not complete, refer to the
Drawing.
C.C. Cylinder Closed
C.O. Cylinder Open
3-Q99
103
104
106
108
110
110
111
114
115
116
117
117
126
126
