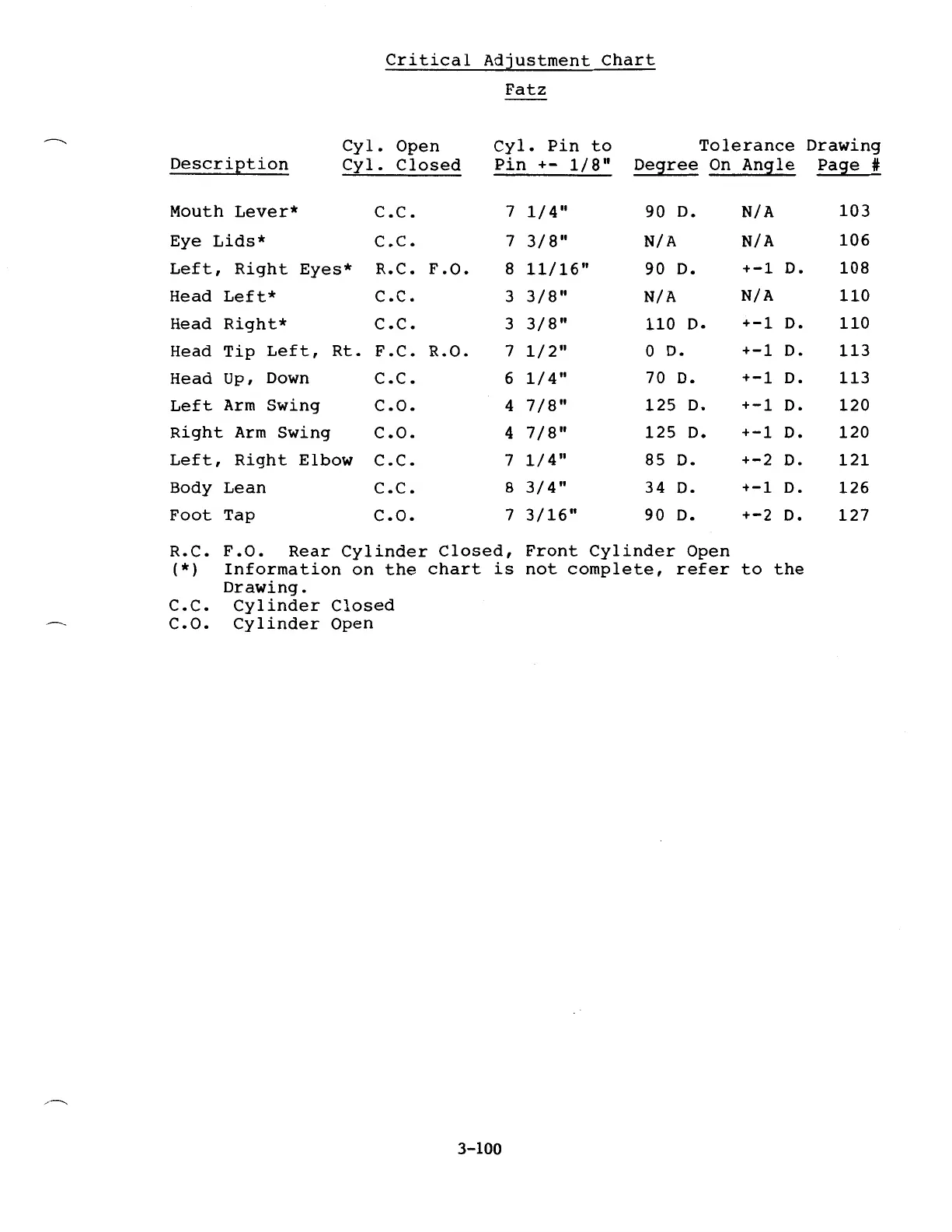

Critical Adjustment Chart
Fatz
Description
Cyl. Open
Cyl. Closed
Cyl. Pin to
Pin +- 1/8"
Tolerance Drawing
Degree On Angle Page #
Mouth Lever* c.c.
Eye Lids* c.c.
Left, Right Eyes* R.C. F.O.
Head Left*
Head Right*
c.c.
c.c.
Head Tip Left, Rt. F.C. R.O.
Head Up, Down c.c.
Left Arm Swing c.o.
Right Arm Swing c.o.
Left, Right Elbow c.c.
Body Lean c.c.
Foot Tap
c.o.
7 1/4"
7 3/8"
8 11/16"
3 3/8"
3 3/8"
7 1/2"
6 1/4"
4 7/8"
4 7/8"
7 1/4"
8 3/4"
7 3/16"
90 D.
N/A
90 D.
N/A
110 D.
0 D.
70 D.
125 D.
125 D.
85 D.
34 D.
90 D.
R.C. F.O. Rear Cylinder Closed, Front Cylinder Open
N/A
N/A
+-1 D.
N/A
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-1 D.
+-2 D.
+-1 D.
+-2 D.
(*) Information on the chart is not complete, refer to the
Drawing.
C.C. Cylinder Closed
C.O. Cylinder Open
3-100
103
106
108
110
110
113
113
120
120
121
126
127
