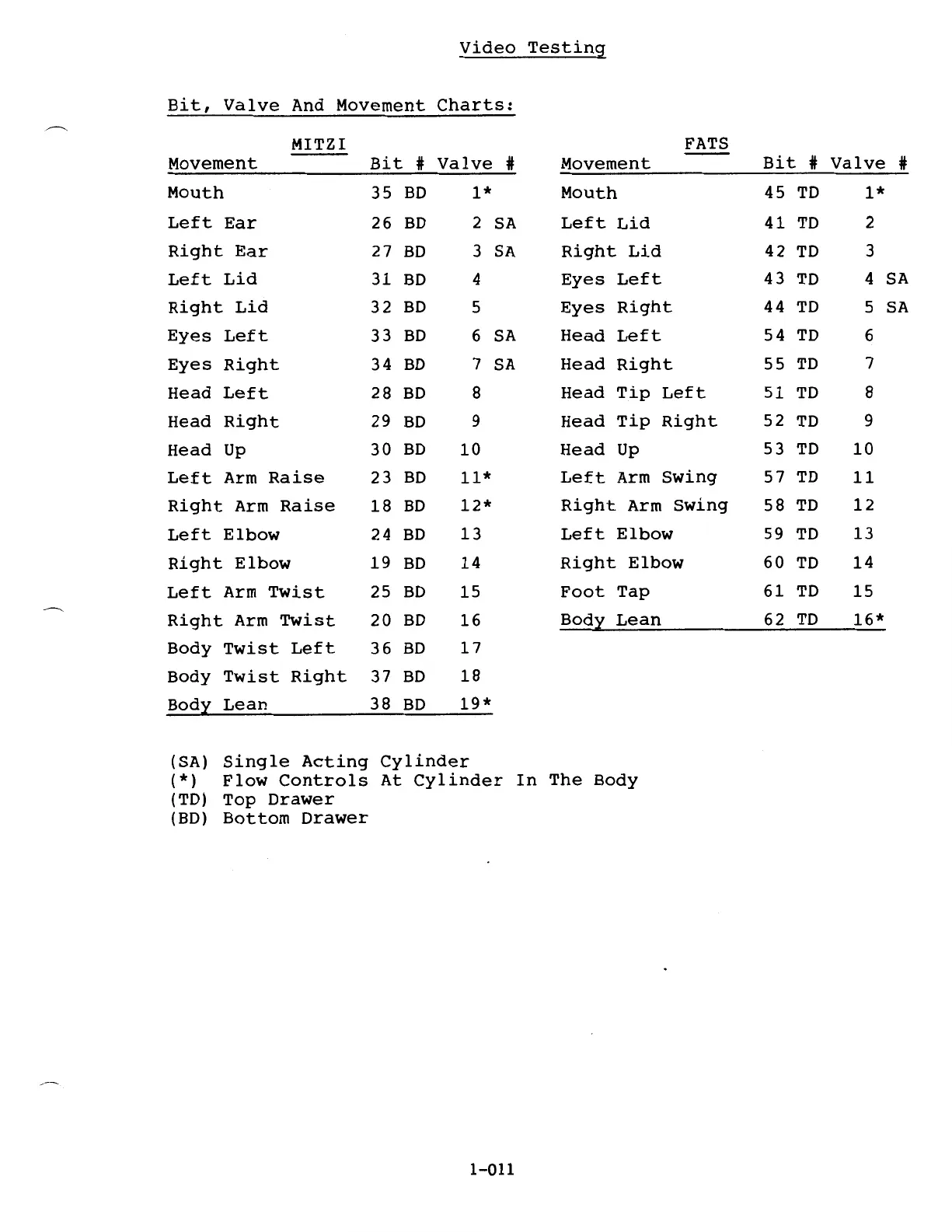

Video Testing
Bit, Valve
And Movement Charts:
MITZI
FATS
Movement
Bit #
Valve
#
Movement
Bit # Valve
#
Mouth
35 BD 1* Mouth 45
TO 1*
Left Ear 26 BD 2 SA Left Lid 41
TO
2
Right Ear 27 BD
3
SA Right Lid 42
TO 3
Left Lid
31 BD 4 Eyes Left
43 TO 4 SA
Right Lid 32 BD 5 Eyes Right
44 TO 5 SA
Eyes Left 33 BD 6 SA Head Left
54 TO 6
Eyes Right 34 BD 7 SA Head
Right 55 TO
7
Head Left 28 BD 8
Head Tip Left 51
TO
8
Head Right 29 BD 9
Head Tip
Right
52
TO 9
Head
Up
30 BD
10 Head Up 53
TO 10
Left Arm Raise 23 BD
11* Left
Arm Swing 57
TO
11
Right Arm Raise 18 BD 12*
Right Arm Swing 58
TO 12
Left Elbow 24 BD 13
Left Elbow
59 TO 13
Right Elbow 19 BD 14
Right Elbow 60
TO 14
Left Arm Twist 25 BD 15
Foot Tap 61 TO 15
Right Arm Twist 20 BD
16
Bodx:
Lean 62 TO 16*
Body Twist Left 36 BD
17
Body
Twist Right 37 BD
18
Body
Lean 38 BD
19*
(SA) Single Acting Cylinder
( *) Flow Controls
At Cylinder In The Body
(TO)
Top Drawer
(BD) Bottom Drawer
1-011
