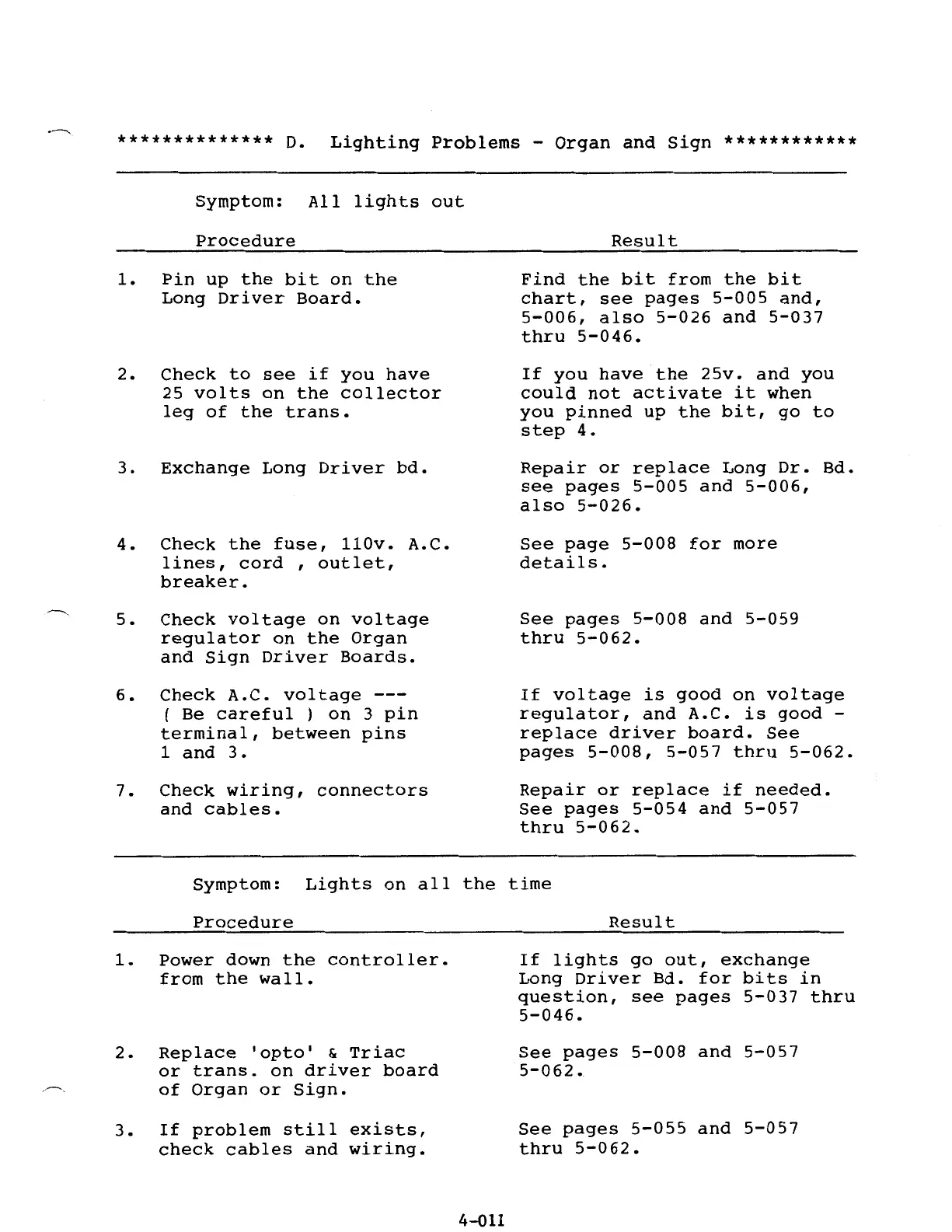

Creative Engineering ROCK-A-FIRE EXPLOSION - Page 235

************** D. Lighting Problems - Organ and Sign ************
Symptom: All lights out
Procedure Result
1. Pin up the bit on the
Long Driver Board.
2. Check to see if you have
25 volts on the collector
leg of the trans.
3. Exchange Long Driver bd.
4. Check the fuse, 110v. A.C.
lines, cord , outlet,
breaker.
5. Check voltage on voltage
regulator on the Organ
and Sign Driver Boards.
6. Check A.C. voltage ---
( Be careful ) on 3 pin
terminal, between pins
1 and 3.
7. Check wiring, connectors
and cables.
Find the bit from the bit
chart, see pages 5-005 and,
5-006, also 5-026 and 5-037
thru 5-046.
If you have the 25v. and you
could not activate it when
you pinned up the bit, go to
step 4.
Repair or replace Long Dr. Bd.
see pages 5-005 and 5-006,
also 5-026.
See page 5-008 for more
details.
See pages 5-008 and 5-059
thru 5-062.
If voltage is good on voltage
regulator, and A.C. is good -
replace driver board. See
pages 5-008, 5-057 thru 5-062.
Repair or replace if needed.
See pages 5-054 and 5-057
thru 5-062.
Symptom: Lights on all the time
Procedure Result
1. Power down the controller.
from the wall.
2. Replace 'opto' & Triac
or trans. on driver board
of Organ or Sign.
3. If problem still exists,
check cables and wiring.
4-Qll
If lights go out, exchange
Long Driver Bd. for bits in
question, see pages 5-037 thru
5-046.
See pages 5-008 and 5-057
5-062.
See pages 5-055 and 5-057
thru 5-062.
