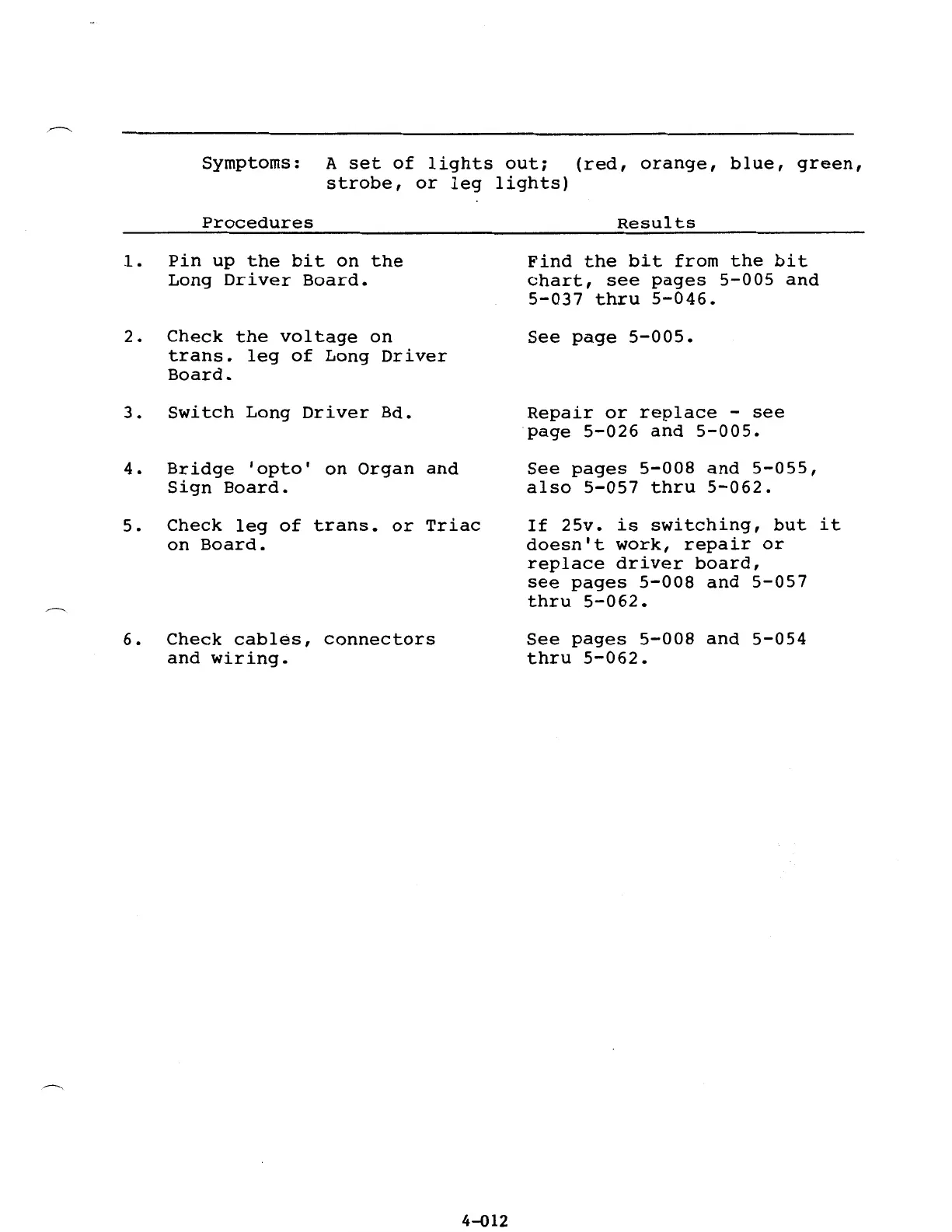

Creative Engineering ROCK-A-FIRE EXPLOSION - Page 236

Symptoms: A set of lights out; (red, orange, blue, green,
strobe, or leg lights)
Procedures Results
1. Pin up the bit on the
Long Driver Board.
2. Check the voltage on
trans. leg of Long Driver
Board.
3. Switch Long Driver Bd.
4. Bridge 'opto' on Organ and
Sign Board.
5. Check leg of trans. or Triac
on Board.
6. Check cables, connectors
and wiring.
4-Ql2
Find the bit from the bit
chart, see pages 5-005 and
5-037 thru 5-046.
See page 5-005.
Repair or replace - see
page 5-026 and 5-005.
See pages 5-008 and 5-055,
also 5-057 thru 5-062.
If 25v. is switching, but it
doesn't work, repair or
replace driver board,
see pages 5-008 and 5-057
thru 5-062.
See pages 5-008 and 5-054
thru 5-062.
