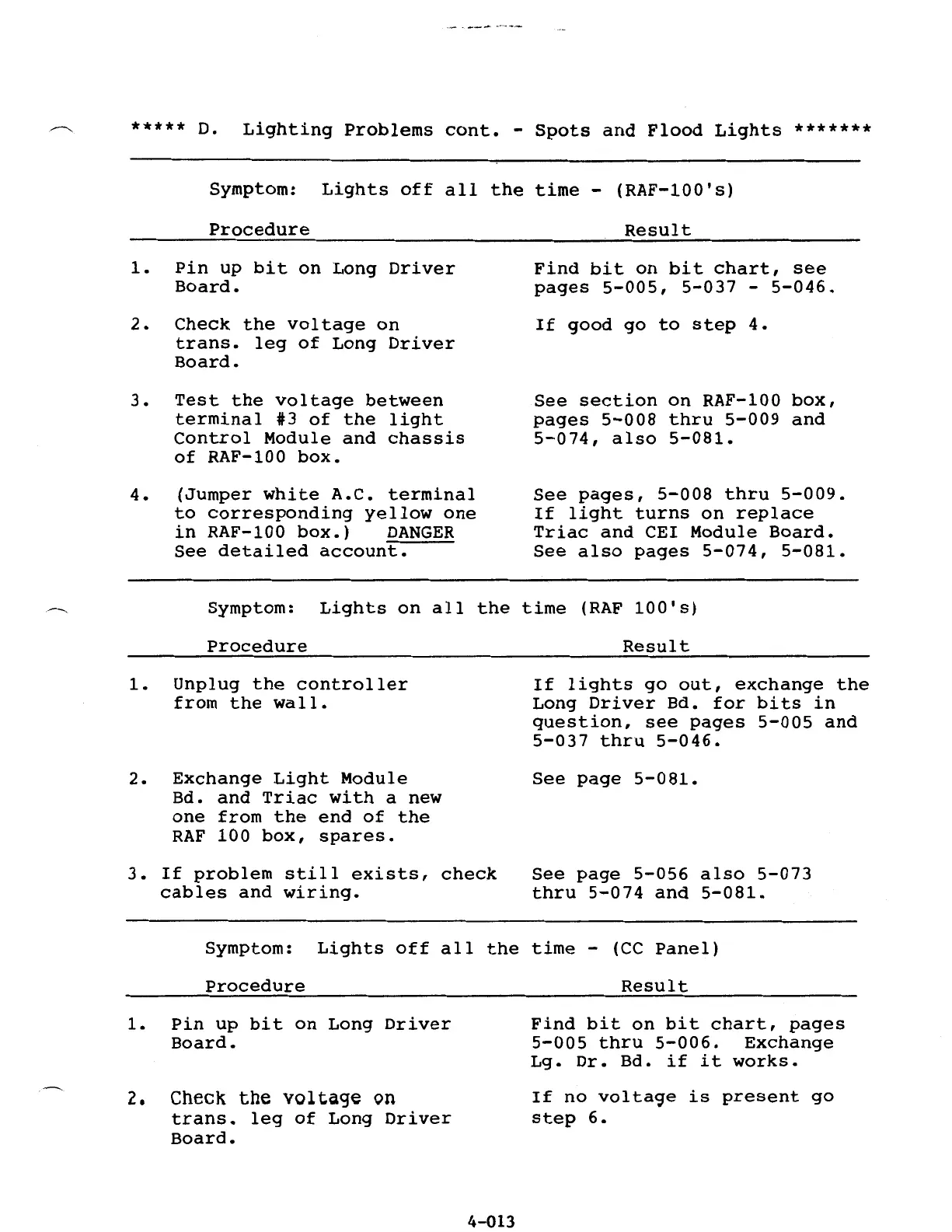

***** D. Lighting Problems cont. - Spots and Flood Lights *******
Symptom: Lights off all the time - (RAF-100's)
Procedure Result
1. Pin up bit on Long Driver
Board.
2. Check the voltage on
trans. leg of Long Driver
Board.
3. Test the voltage between
terminal #3 of the light
Control Module and chassis
of RAF-100 box.
4. (Jumper white A.C. terminal
to corresponding yellow one
in RAF-100 box.) DANGER
See detailed account.
Find bit on bit chart, see
pages 5-005, 5-037 - 5-046.
If good go to step 4.
See section on RAF-100 box,
pages 5-008 thru 5-009 and
5-074, also 5-081.
See pages, 5-008 thru 5-009.
If light turns on replace
Triac and CEI Module Board.
See also pages 5-074, 5-081.
Symptom: Lights on all the time (RAF 100's)
Procedure Result
1. Unplug the controller
from the wall.
2. Exchange Light Module
Bd. and Triac with a new
one from the end of the
RAF 100 box, spares.
3. If problem still exists, check
cables and wiring.
If lights go out, exchange the
Long Driver Bd. for bits in
question, see pages 5-005 and
5-037 thru 5-046.
See page 5-081.
See page 5-056 also 5-073
thru 5-074 and 5-081.
Symptom: Lights off all the time - (CC Panel)
Procedure Result
1. Pin up bit on Long Driver
Board.
2. Check the voltage on
trans. leg of Long Driver
Board.
4-013
Find bit on bit chart, pages
5-005 thru 5-006. Exchange
Lg. Dr. Bd. if it works.
If no voltase is present go
step 6.
