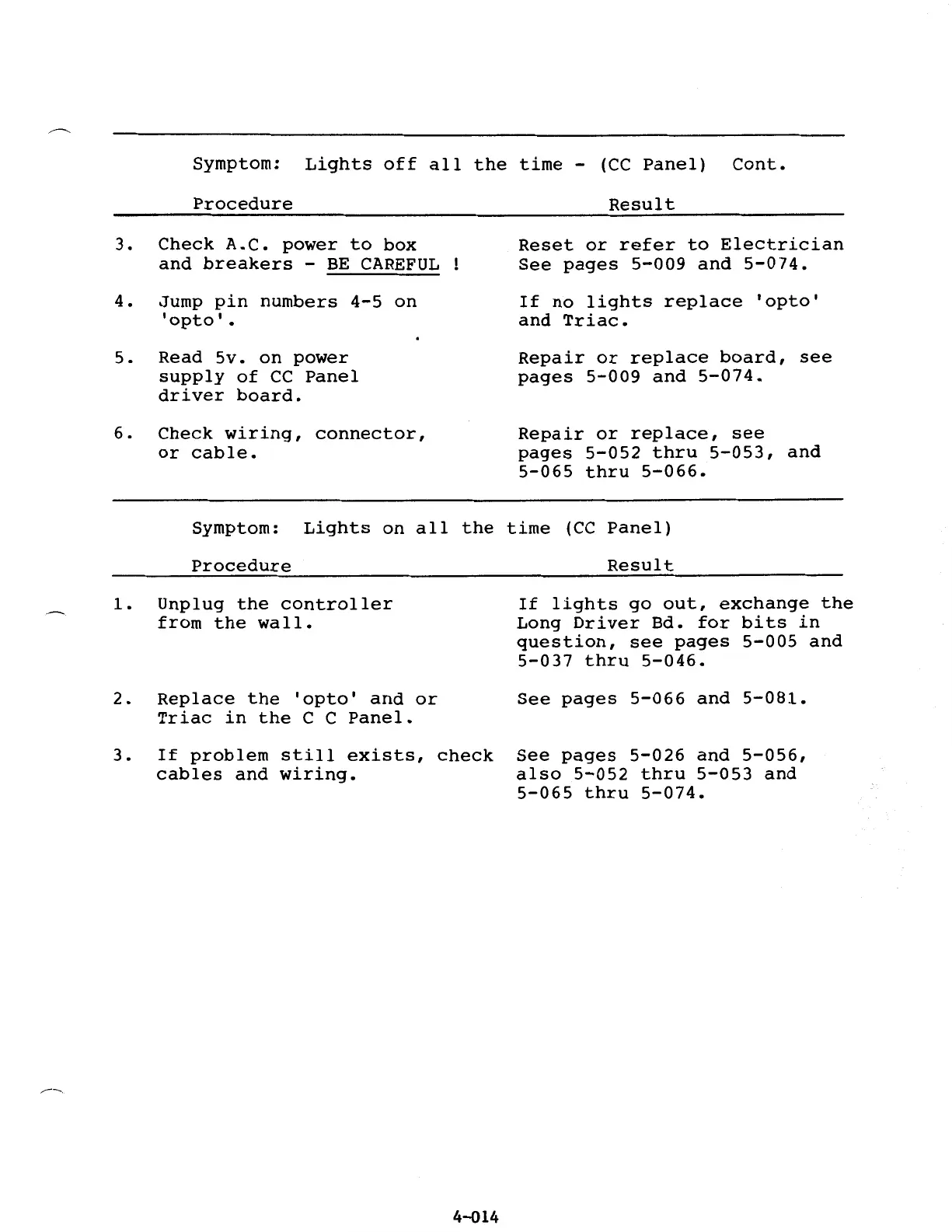

Creative Engineering ROCK-A-FIRE EXPLOSION - Page 238

Symptom: Lights off all the time - (CC Panel) Cont.
Procedure
3. Check A.C. power to box
and breakers - BE CAREFUL
4. Jump pin numbers 4-5 on
'opto'.
5. Read 5v. on power
supply of CC Panel
driver board.
6. Check wiring, connector,
or cable.
Result
Reset or refer to Electrician
See pages 5-009 and 5-074.
If no lights replace 'opto'
and Triac.
Repair or replace board, see
pages 5-009 and 5-074.
Repair or replace, see
pages 5-052 thru 5-053, and
5-065 thru 5-066.
Symptom: Lights on all the time (CC Panel)
1.
2.
3.
Procedure Result
Unplug the controller
from the wall.
Replace the 'opto' and or
Triac in the C C Panel.
If problem still exists, check
cables and wiring.
4-Q14
If lights go out, exchange the
Long Driver Bd. for bits in
question, see pages 5-005 and
5-037 thru 5-046.
See pages 5-066 and 5-081.
See pages 5-026 and 5-056,
also 5-052 thru 5-053 and
5-065 thru 5-074.
