Creative Engineering ROCK-A-FIRE EXPLOSION - Page 294

p 1
p 2
1
BROWN
1
2
RED
2
3
ORANGE
3
4 YELLOW
4
5
GREEN
5
6
BLUE
6
7
VIOLET
7
8
GREY
8
9
WHITE 9
10
BLACK
10
11
TAN
11
12
WHITE/RED
12
13
PINK
13
14 WHITE/YELLOW 14
15
WHITE/GREEN
15
16
WHITE/BLUE
16
17
RED/BLACK
17
18
RED[YELLOW 18
23 RED/GREEN 23
----------------------==~===-----------------------
24--------------------~WH~I~T~EL~B~L~A=CK~------------------~24
P1 & P2 ARE CINCH/AMPHENOL
57-30240
5-050

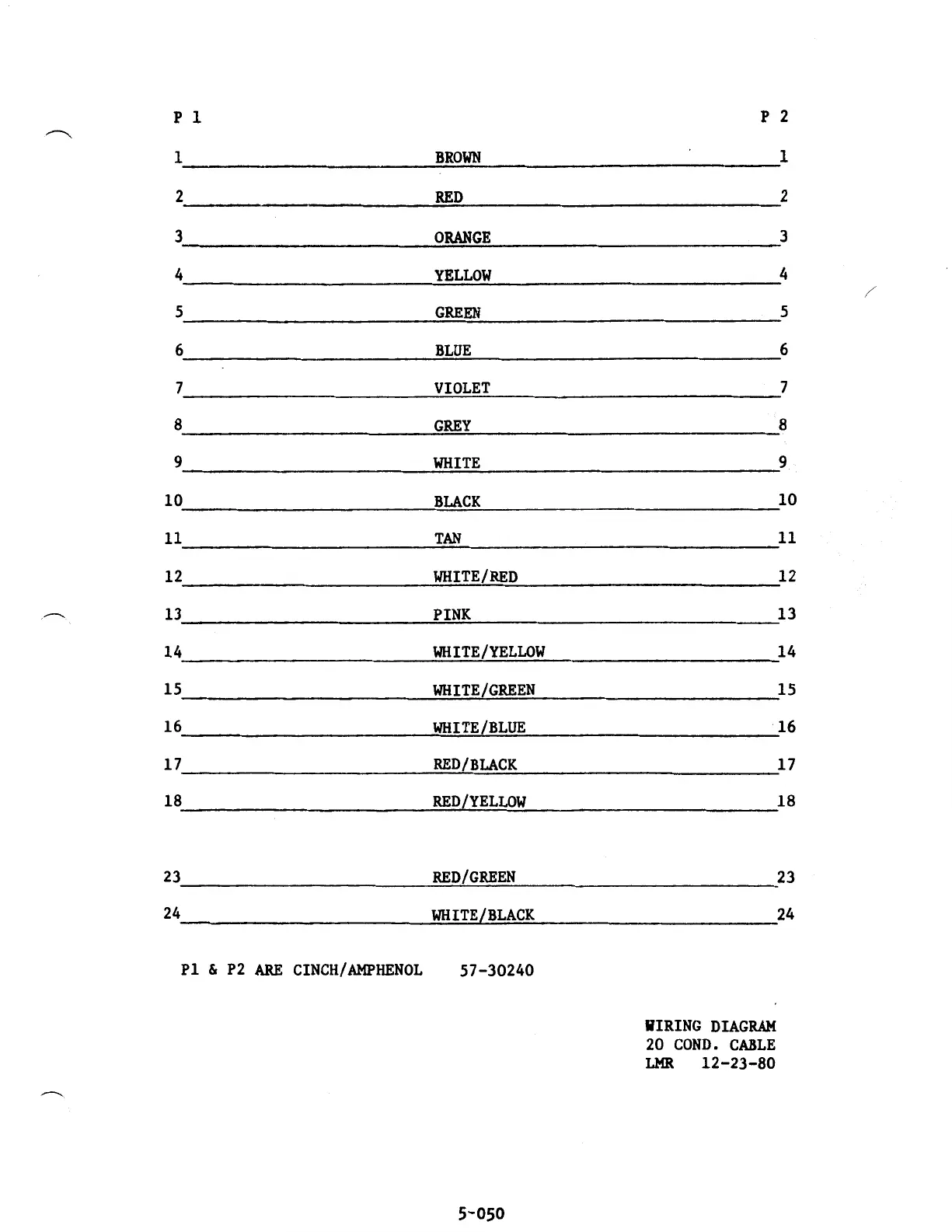

WIRING DIAGRAM
20 COND. CABLE
LMR. 12-23-80
/
