Creative Engineering ROCK-A-FIRE EXPLOSION - Page 295

p 1
P22
1
BROWN
1
2
RED
2
3
ORANGE
3
4
YELLOW
4
5
GREEN
5
6
BLUE
6
7
VIOLET
7
8
GREY
8
9
WHITE
9
10
BLACK
10
11
WHITE/BROWN
11
12
WHITE/RED
12
13
WHITE/ORANGE
13
14
WHITE/YELLOW
14
15
WHITE/GREEN
15
16
WHITE/BLUE
16
17
WHITE/VIOLET
17
18
WHITE/GREY
18
19
WHITE/BLACK/PINK
19
20
WHITE/BLACK
20
21
TAN
21
22
RED/BLACK
22
23
RED/YELLOW
23
24
RED/GREEN
24
"
PINK
7
P1 & P2 ARE TYPE 57-30240 CONNECTORS

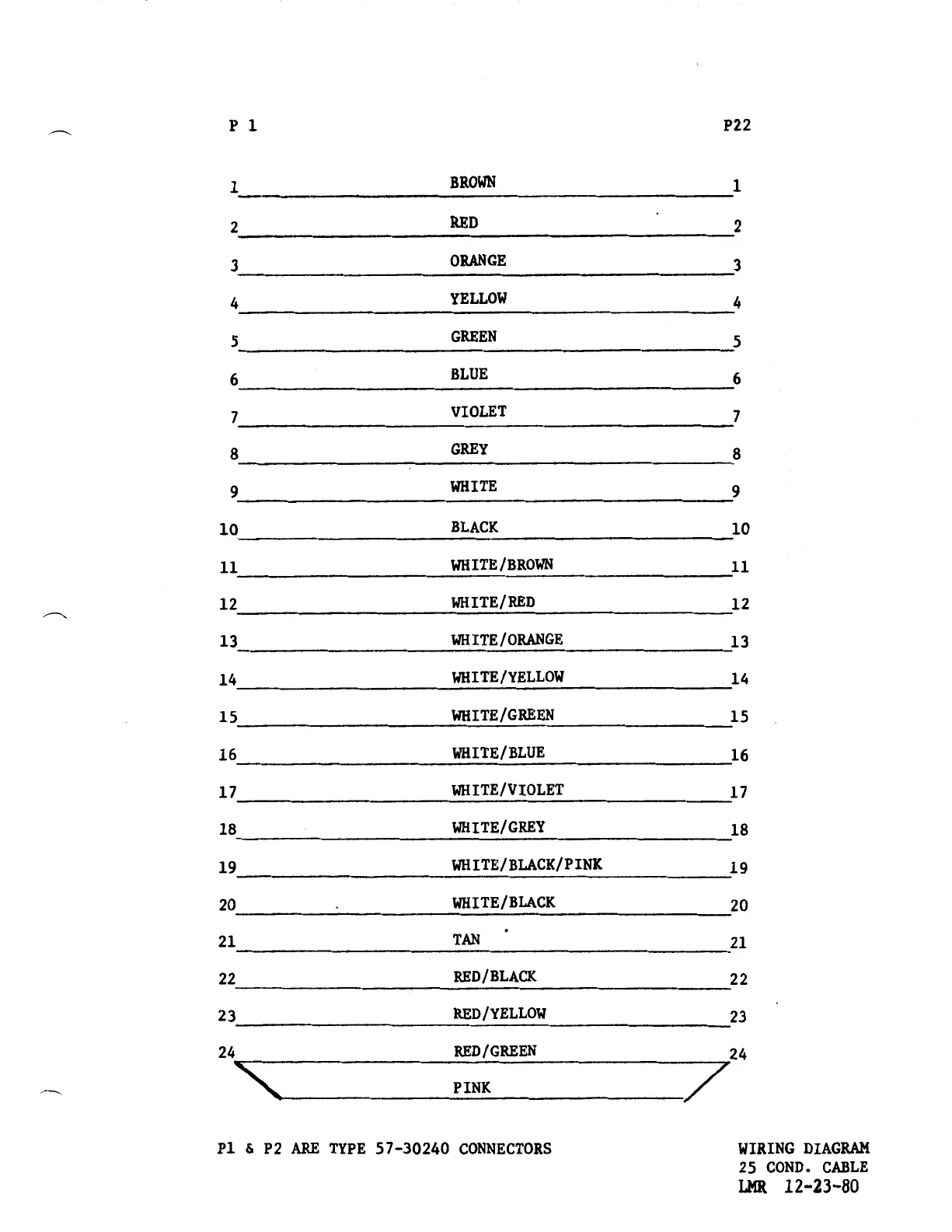

WIRING DIAGRAM
25 COND. CABLE
LMR 12-ZJ-80
