Creative Engineering ROCK-A-FIRE EXPLOSION - Page 296

p 1
p 2
1
BROWN
1
2
RED
2
3
ORANGE
3
4
YELLOW
4
5
GREEN
5
6
BLUE
6
7
VIOLET
7
8
GREY
8
23. _________________________ WH __ IT_E __________________________ 23
24, _________________________ B_LA_C_K __________________________ 24
P1 & P2 ARE TYPE 57-30240 CONNECTORS
5-052

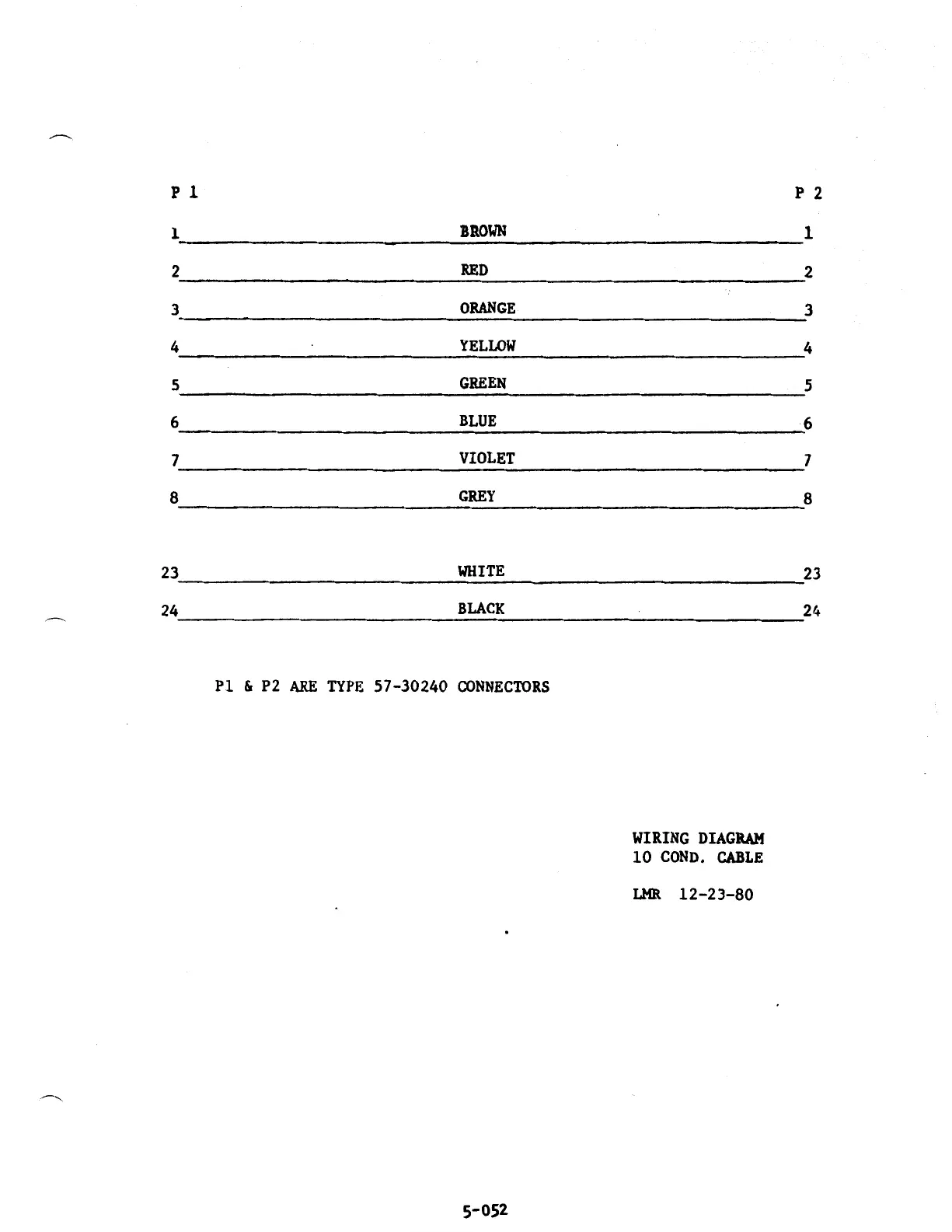

WIRING DIAGRAM
10 COND. CABLE
LMR 12-23-80
