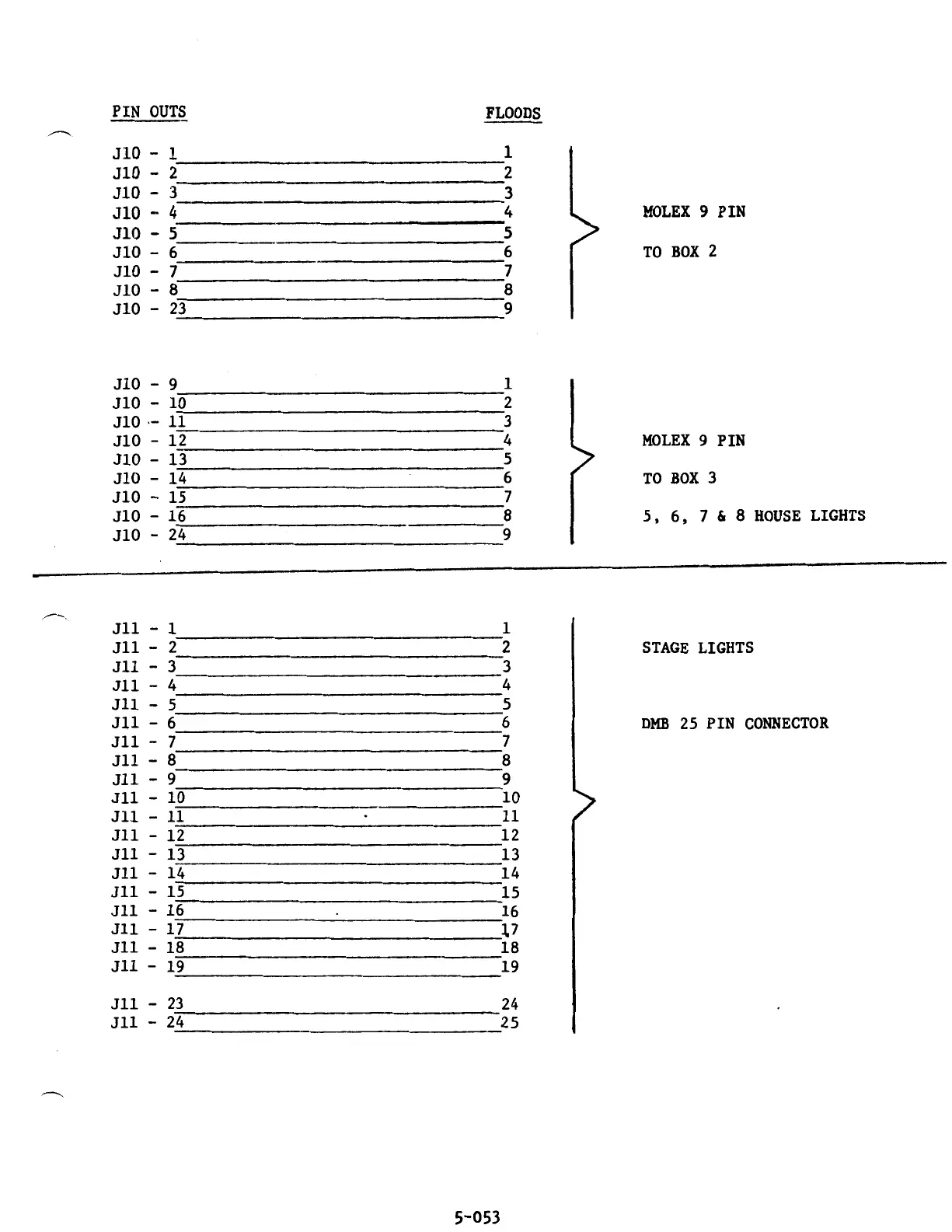

PIN OUTS
FLOODS
JlO - 1
1
JlO - 2
2
JlO - 3 3
JlO - 4
4
JlO - 5
5
JlO - 6
6
J10 - 7
7
J10 - 8
8
J10 - 23
9
J10 - 9 1
J10 - 1-::-0--------------2
J10 ·- 11 3
J10 - 12 4
J10 - 13 5
J10 - 14 6
J10 - 15 7
J10 - 16 8
J10 - 24 9
Jll - 1
1
Jll - 2
2
Jll - 3
3
Jll - 4
4
Jll - 5
5
Jll - 6
6
Jll - 7
7
Jll - 8
8
Jll - 9
9
Jll - 10
10
Jll - 11
11
Jll - 12
12
Jll - 13
13
Jll - 14
14
Jll - 15
15
Jll - 16
16
Jll - 17
1.7
Jll - 18 18
Jll - 19 19
Jll - 23 24
Jll - 24
25
5-053
MOLEX 9 PIN
TO BOX 2
MOLEX 9 PIN
TO BOX 3
5, 6, 7 & 8 HOUSE LIGHTS
STAGE LIGHTS
DMB 25 PIN CONNECTOR
