Creative Engineering ROCK-A-FIRE EXPLOSION - Page 301

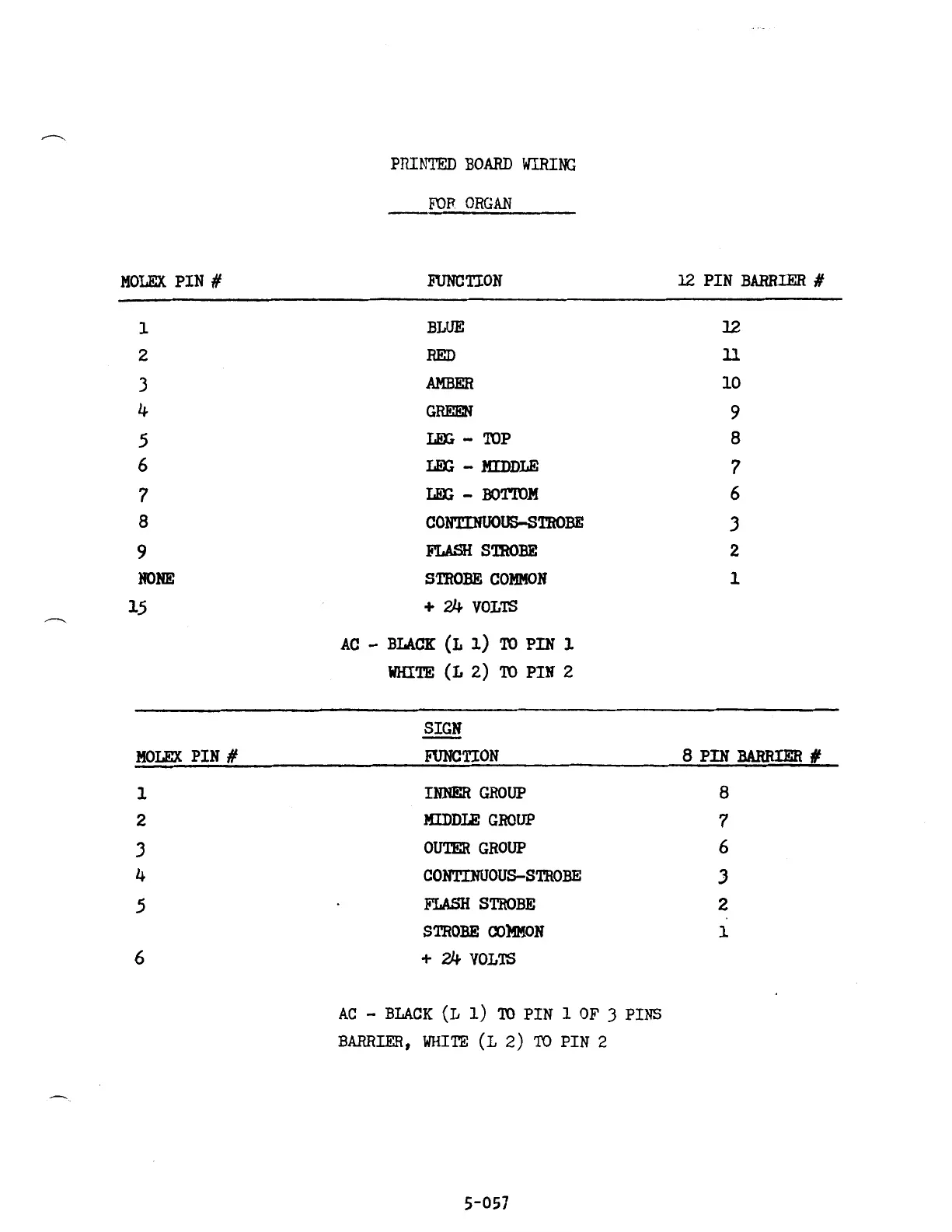

PRINTED BOARD WIRING
FUR ORGAN
MOLEX PIN #
FUNCTION 12 PIN BARRIER #
1
BLUE
12
2 RED
11
3
AMBER
10
4 GREEN
9
5
un- 'IUP
8
6
I.m;- MIDDLE
7
7
un - BOT.ro.M
6
8
CONTINUOUS-STROBE
3
9
FLASH S'DlOBE 2
NONE STROBE COMMON 1
15
+ 2J.1. VOLTS
AC - BLACK (L 1) 'lU PIN 1
WHITE (L 2) 'lU PIN 2
SIGN
MOLEX PIN #
FUNCTION
8 PIN BARRIER #
1 INNER GROUP 8
2
MIDDlE GROUP
7
3
OtrmR GROUP
6
4
CONTINUOUs-STROBE
J
5
FLASH STROBE
2
STROBE OO:MMON
1
6
+ 24 VOL'IS
AC - BLACK (L 1) TO PIN 1 OF 3 PINS
BARRIER, WHITE (L 2) TO PIN 2
5-057
