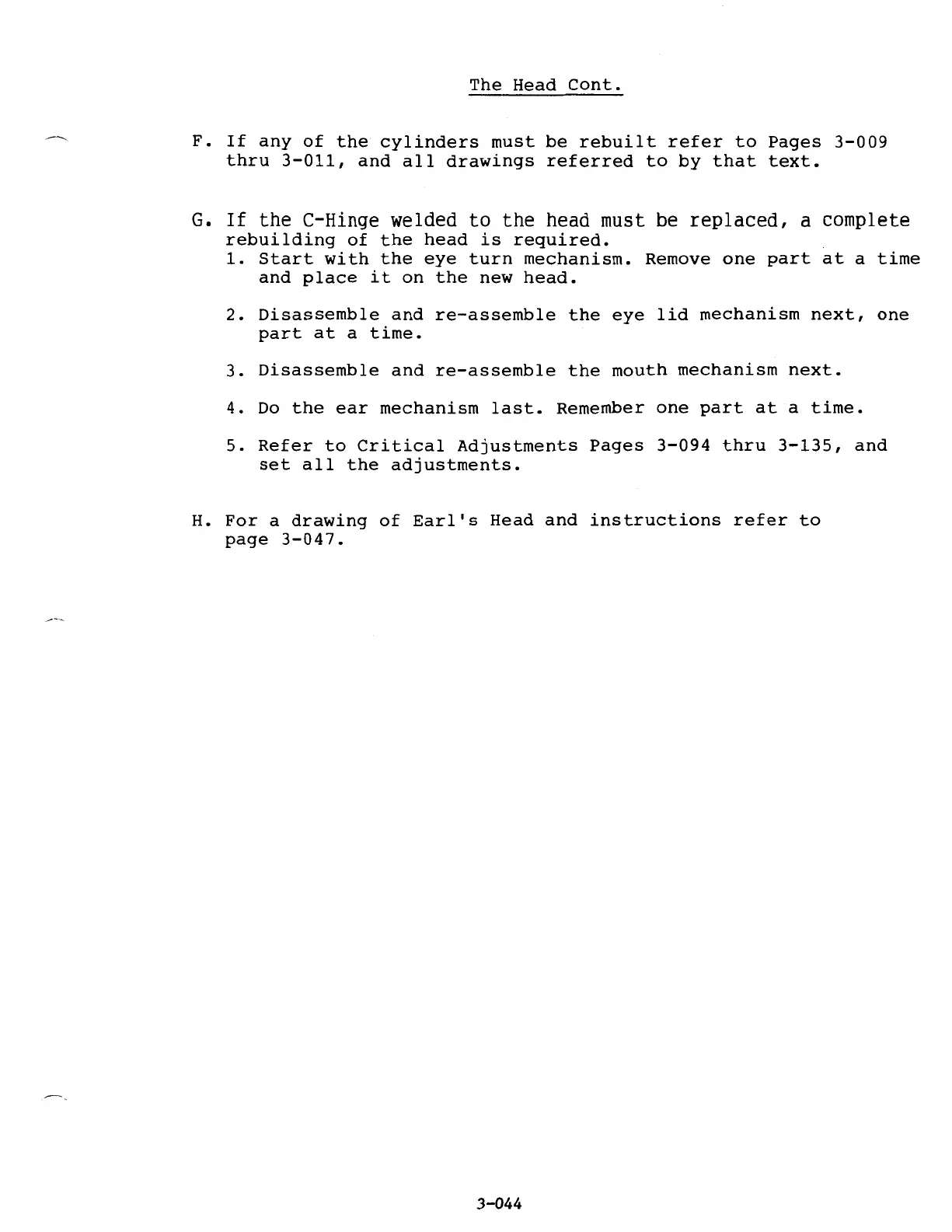

The

Head

Cont.

F.

If

any

of

the

cylinders

must

be

rebuilt

refer

to

Pages

3-009

thru

3-011,

and

all

drawings

referred

to

by

that

text.

G.

If

the

C-Hinge welded

to

the

head must be

replaced,

a complete

rebuilding

of

the

head

is

required.

1.

Start

with

the

eye

turn

mechanism.

Remove

one

part

at

a

time

and

place

it

on

the

new

head.

2.

Disassemble

and

re-assemble

the

eye

lid

mechanism

next,

one

part

at

a

time.

3.

Disassemble

and

re-assemble

the

mouth

mechanism

next.

4.

Do

the

ear

mechanism

last.

Remember

one

part

at

a

time.

5.

Refer

to

Critical

Adjustments

Pages

3-094

thru

3-135,

and

set

all

the

adjustments.

H.

For

a

drawing

of

Earl's

Head

and

instructions

refer

to

page

3-047.

3-044
