Creative Engineering ROCK-A-FIRE EXPLOSION - Page 82

!>E'E BILLY
soe·~ REAR
MOliTN fJ6-J
E!6 Z.
I
'
II
+
"
I
Jf MOUNT
PIN FbR fY£
LID CYL IN DE'R
EYE TIIRN NtECN.
15 NOT SHIJWN

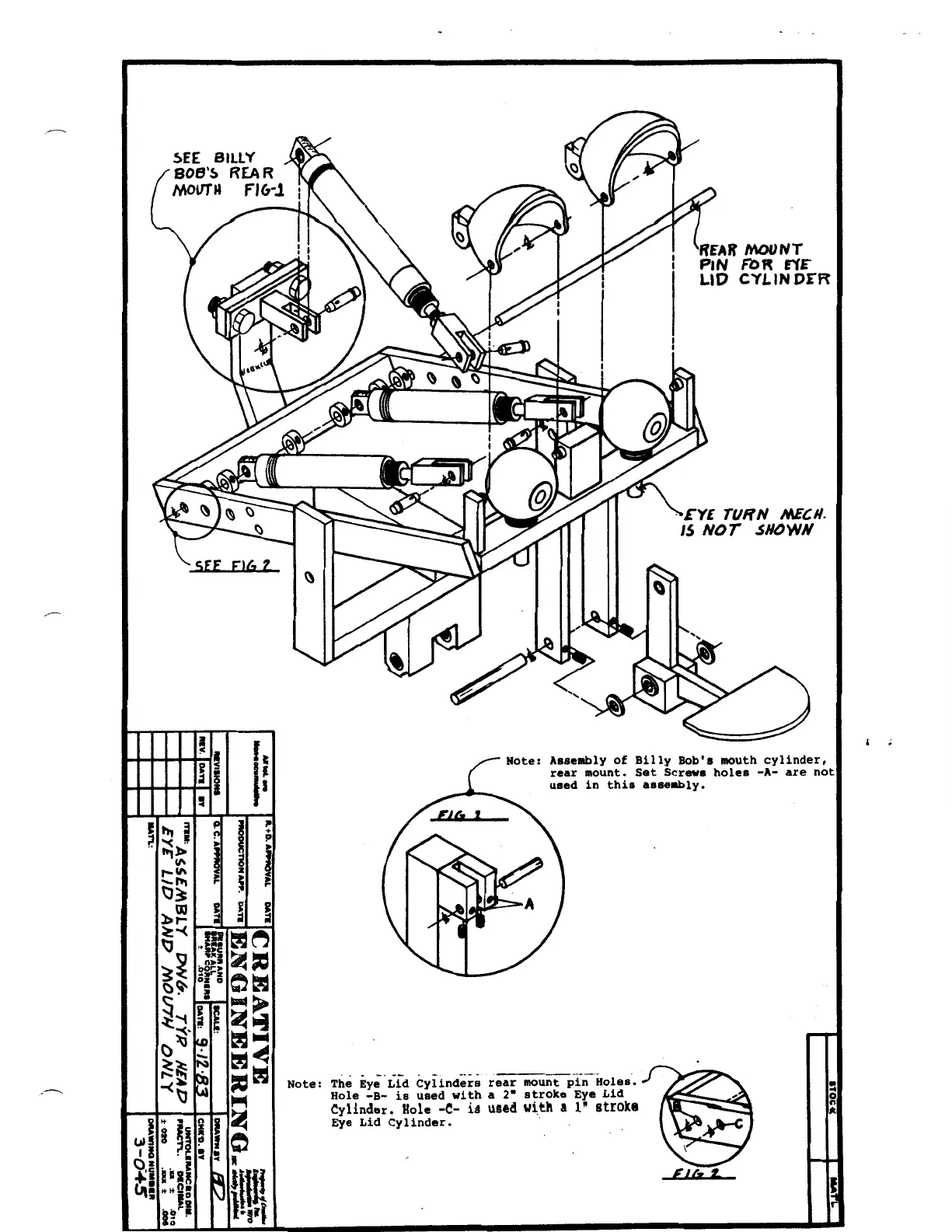

AsseMbly of Billy Bob's mouth cylinder,
rear mount. Set Screws holes -A- are not
used in this asseably.
Note: The Eye Lid Cylinders rear mount pin Holes.
Hole -B- is used with a 2• stroke Eye Lid
Cylinder. Hole -e- ia used w~th a 1~ stroke
Eye Lid Cylinder. ·
