S111 - BAKSET SWING
pg 6 of 8 02.04.2024 LE REV 1
INSTALLATION INSTRUCTIONS
1
2

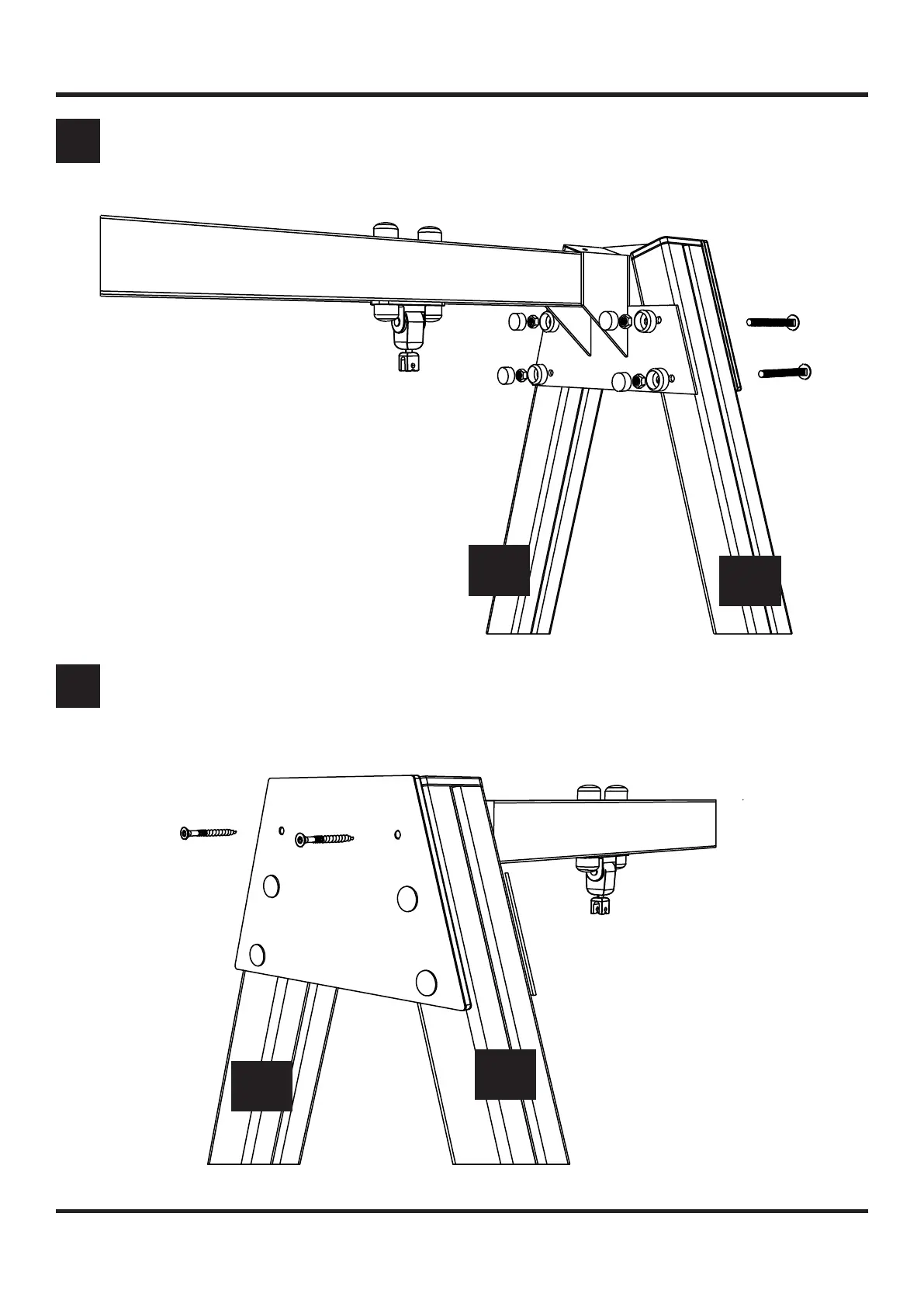

ATTACH PLAYTEC COVER TO TIMBERS S1
ATTACH PLAYTEC COVER AND S1 TIMBERS TO SUPPORT THE BEAM
USING M8X80 WOODSCREWS [X4]
USING M12X160 BOLTS [X8], M12 NYLOCS [X8] AND END CAPS [X8]
S1
S1
S1
S1
