3
❒

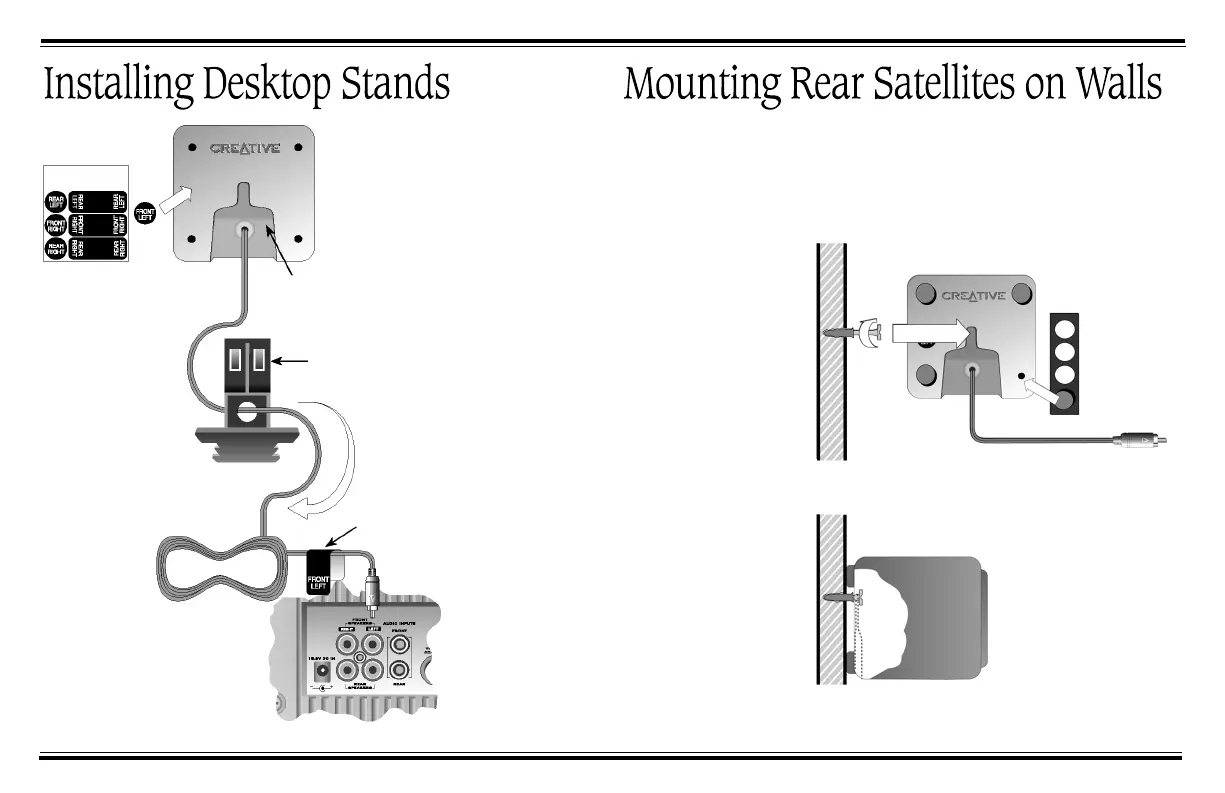

Mount the rear satellites only on
walls that are structurally sound.
❒
Position the satellites behind you
and slightly above ear level.
1
Drill a hole about 0.5 cm (¼
inch) deep into wall.
2
Tap plastic anchor into hole
until it is flush with wall.
3
Screw a M5 x 25 mm screw
into anchor, leaving about
0.5 cm (¼ inch) protruding.
4
Apply rubber
pads on the
back of each
rear satellite.
5
Slip keyhole slot of each
rear satellite onto protruding
screw.
2
Thread satellite cable through
hole in desktop stand.
3
Insert attachment arm into socket
at back of satellite.
Attachment arm.
1
Apply identification label
to back of satellite.
4
Apply Identification
label to cable.
FPS1500.fm Page 3 Monday, July 10, 2000 3:47 PM
