SOUND BLASTER X7 PRODUCT EXPERIENCE GUIDE 6 SOUND BLASTER X7 PRODUCT EXPERIENCE GUIDE 7

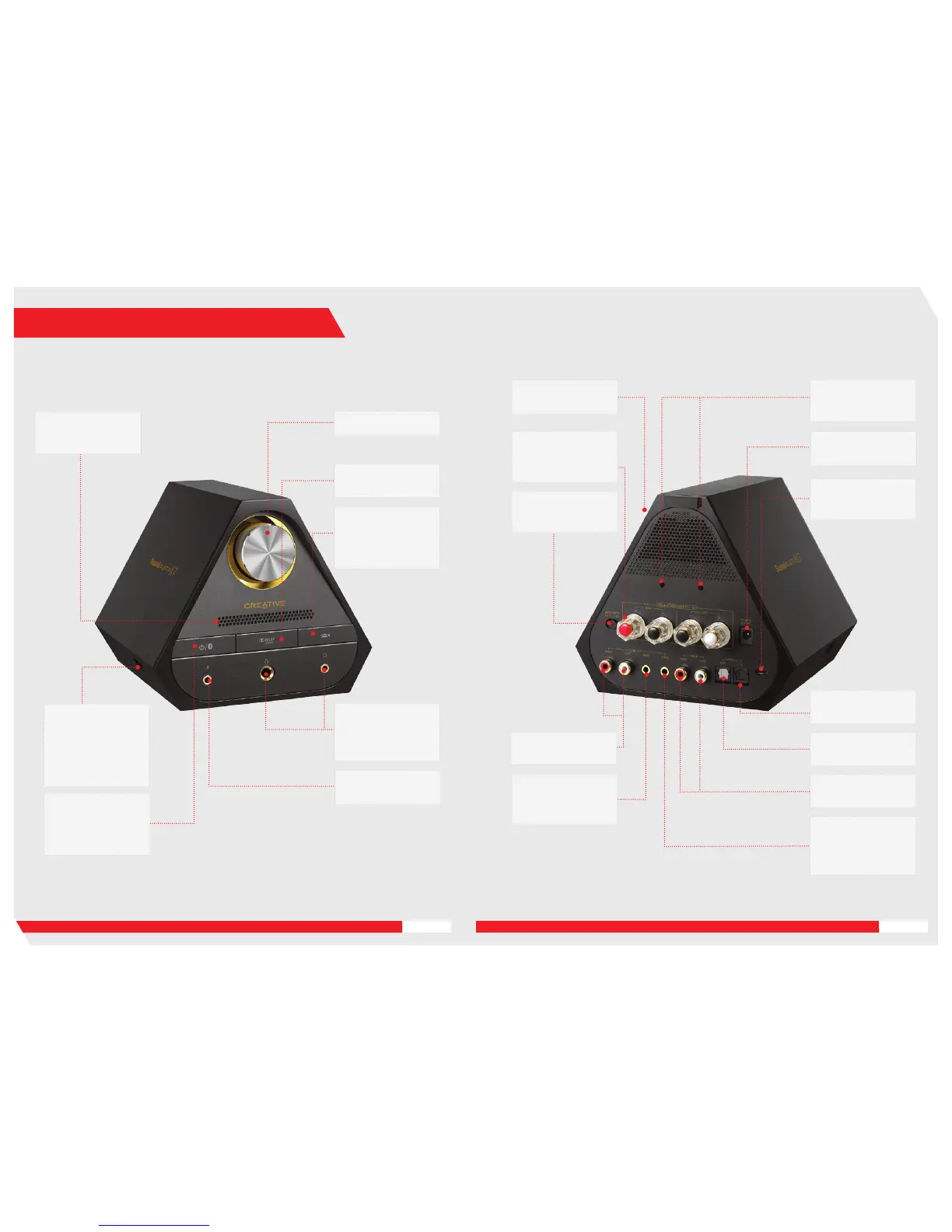

ARCHITECTURE, CONTROLS & CONNECTORS
USB Host Port
• Connect to select smartphones
or tablets for high-fidelity
audio playback
• Connect to iOS devices using
Lightning connector for
recording
• Charge select mobile phones
and devices!
Headphone Stand Slots
• Insert the supplied
headphone stand to hang
your headphones on
3.5mm Center / Subwoofer
Line Out Jack
• Connect to Centre and
Subwoofer inputs on
powered analog speakers or
A/V receiver
Dual Headphone Jacks
• Connects to ¼” (6.5mm)
studio-grade headphones
and
1
/
8
” (3.5mm) headphones
for simultaneous audio
listening
SBX / Call Button &
Inditcator
• Turn on SBX Pro Studio for
intelligent audio processing
• Activate the voice assistant*
on your smart device
Volume Control Knob
• Adjusts the volume level
Beamforming CrystalVoice
Microphones
• For crystal clear voice
communications
Mic In jack
• Connect to a microphone
for recording
Power /
Bluetooth
®
Button & Indicator
• Press to switch on
• Press and hold 2 sec for
Bluetooth
pairing
• Press again to switch off
Key Features
• 1x
Bluetooth
4.1 Module supporting HFP with HD Voice and A2DP with AAC, aptX and aptX-Low Latency
• 1x USB 2.0 Host port allows direct streaming of high quality, lossless audio from Android and iOS devices
• 4x swappable op-amps for customizable tonality
NFC Sensor
• Just tap for one-touch
Bluetooth
pairing
DC-In Port
• Connect to the supplied 24V
2.91A AC/DC power adapter
Impedance Switch
• Select impedance of
connected passive speakers
(4Ω – 8Ω)
2-way Binding Post
Terminals
• Connect to passive speakers
via bare wires or banana
plugs
Front RCA Line Out Jack
• Connect to powered analog
speakers or A/V receiver
Dolby Digtal Indicator
• Lights up in white when Dolby
Digital decoding is activated
USB Port
• Listen to high-resolution
digital audio playback from
PC/Mac
3.5mm Rear Line Out Jack
• Connect to Rear Left
or Rear Right inputs on
powered analog speakers or
A/V receiver
Optical S/PDIF In Jack
• Connect to a game console
or TV via optical cable
Optical S/PDIF Out Jack
• Connect to recording devices
with optical connectors
RCA Line In Jack
• Connect to line level audio
sources.
* For iPhone 4S and above and certain Android/Windows phones only
Sound Blaster X7: An Overview
