Installing your Cooker Hood
9
Fitting the Decor Panel:
The hood is designed to be fully integrated
into the kitchen by fitting a decor panel onto
the visor to match the adjoining kitchen
cabinets.
To fit the decor panel remove the complete
visor assembly from the hood.
First open grille (Fig.12 A) turning the locks
(Fig.12 B).
Remove the visor by first turning the two
locking knobs (Fig.13) in clockwise direction.
Place the template supplied on the rear side
of the decor panel,ensuring that the arrow
aligns the upper edge of the panel (Fig.14).
Drill the holes where indicated on the tem-
plate and fit the door to the decor panel by
means of screws (Fig.15 D).

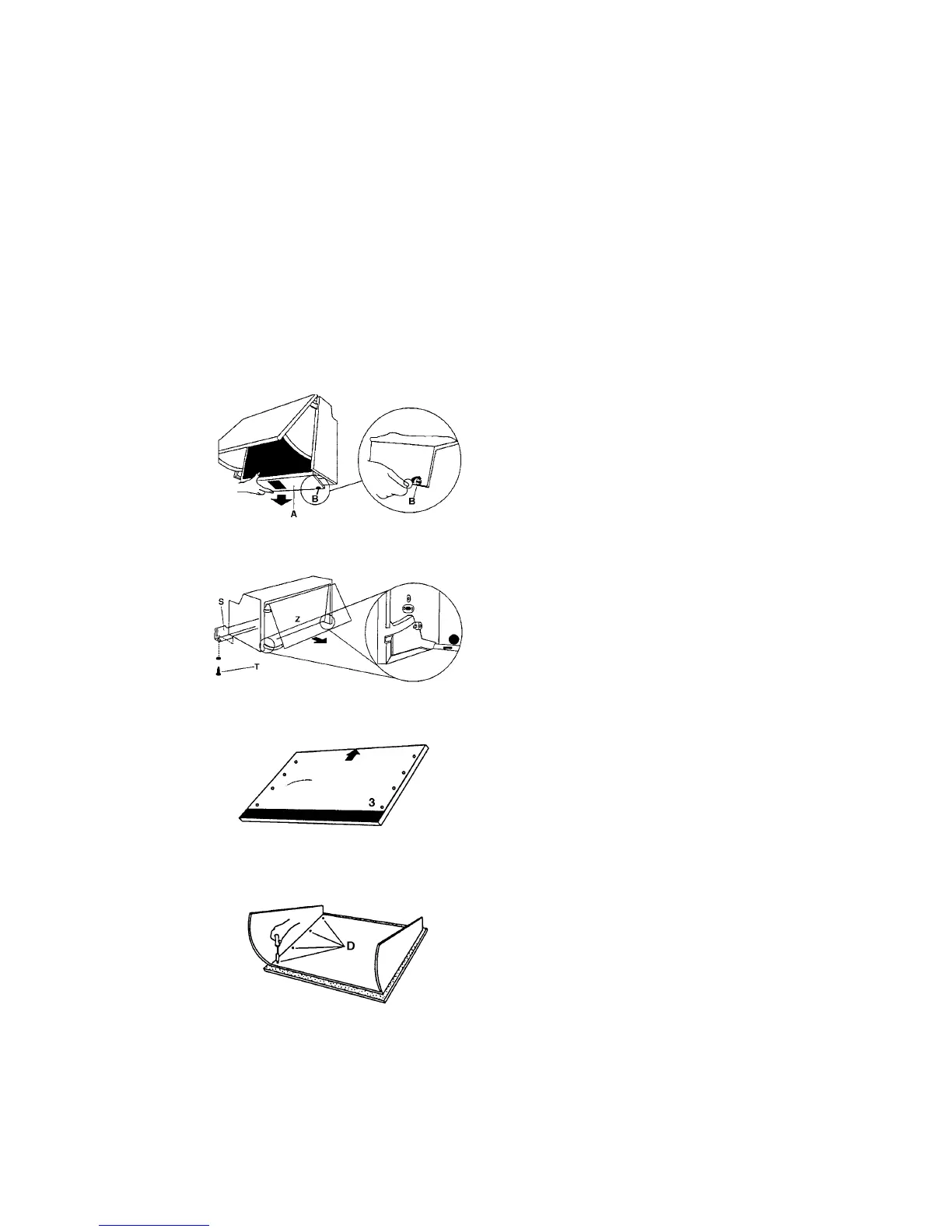

Fig.12
Fig.13
Fig.14
Fig.15
