Creda E920E - Installation; Physical Fitting of the Hob

Installation
15

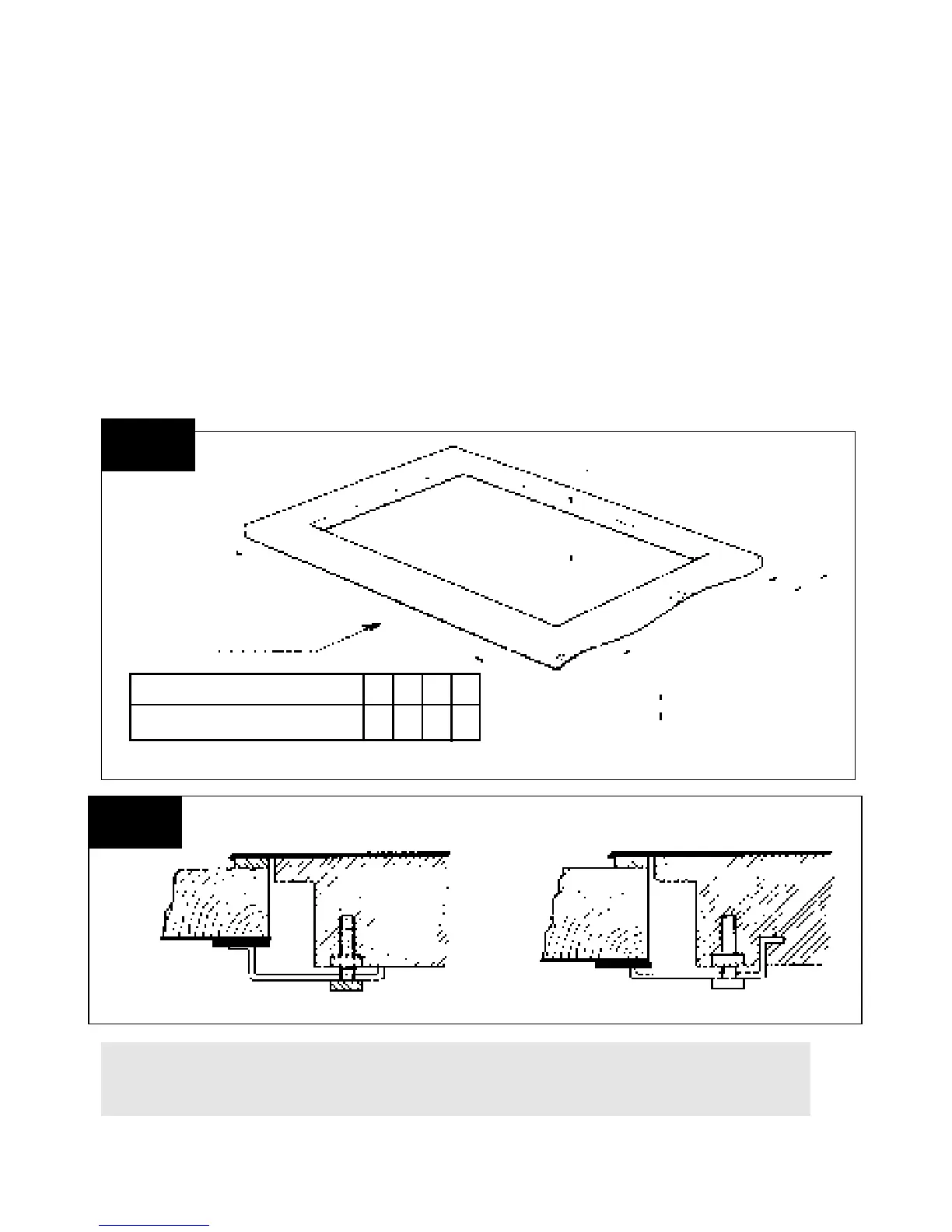

Fig. 1
IMPORTANT
Minimum unobstructed depth
C
Worktop thickness
Preferred 30-40mm
19mm minimum
recommended
D
A
B
Front edge
of worktop
Note: Do not over tighten the hob clamps as distortion of the hob may occur.
FITTING THE HOB
Unpack the hob from the carton.
Remove the bag containing the sealing tape, fixing brackets and screws.
Fit the sealing tape to the underside of the hob close to the edge.
Lower the hob into the worktop ensuring the mains lead is fed into the base unit and is not
trapped under the flanges.
Fix the hob to the worktop using the fixing brackets and screws(see Fig 2) ensuring that the two
insulating pads are fitted between the brackets and the worktop (see Fig 2).The brackets can either
be hooked into the base panel slots or used to form a bridge between the panel and the worktop.
NB Do not over tighten the hob clamps as distortion of the hob may occur.
Connect the hob to the electrical supply (see INSTALLATION).
Ensure that the hob is functioning correctly prior to use. Instruct the user in the operation of the
hob.
Dimensions mm
A
490 560
50
min
55
B
C
D
Fig. 2
30mm
worktop
Inside base of hob
Outside base of hob
40mm
worktop
FIXING CLAMP (all Models)
