Creda S860G - Characteristic of the Burners and Nozzles; Characteristics of Burners and Nozzels

12

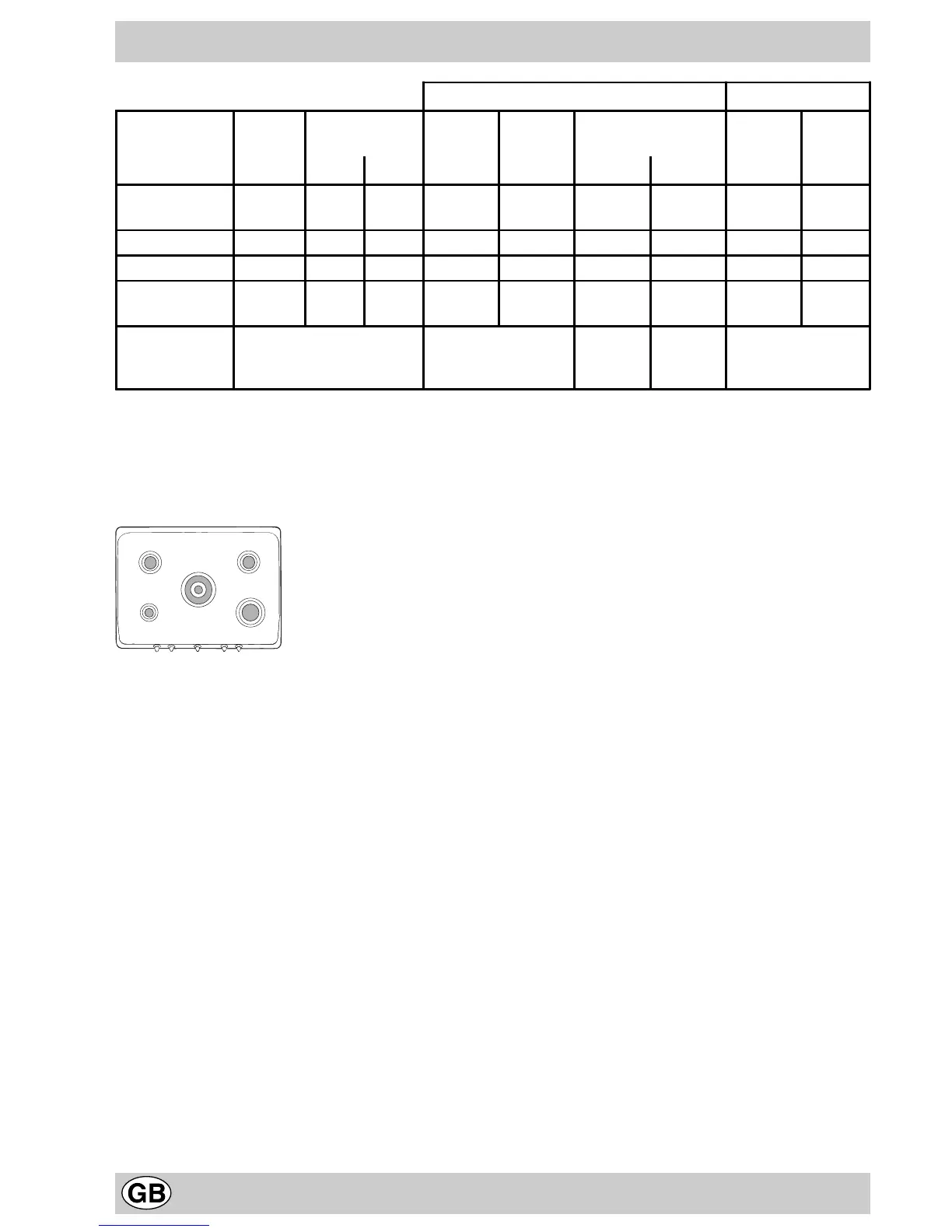

Characteristic of the burners and nozzles
Table 1
Liquid Gas Natural Gas
Burner Diameter
(mm)
Thermal power
kW (p.c.s.*)
By-Pass
1/100
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Flow*
l/h
Nomin. Ridot. (mm) (mm) *** ** (mm)
Reduced Fast
(RR)
100 2,60 0,70 41 80 189 186 110 248
Semi Fast (S) 75 1,90 0,40 30 70 138 136 106 181
Auxiliary (A) 55 1,00 0,40 30 50 73 71 79 95
Triple Crown
(TC)
130 3,60 1,30 57 94 262 257 137 343
Supply
Pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
* At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50.37 MJ/kg.
*** Butane P.C.S. = 49.47 MJ/kg.
Natural P.C.S. = 37.78 MJ/m
3
(1) re. Models with the security device (Ref. F).
S
A
RR
S
TC
S 860 G
