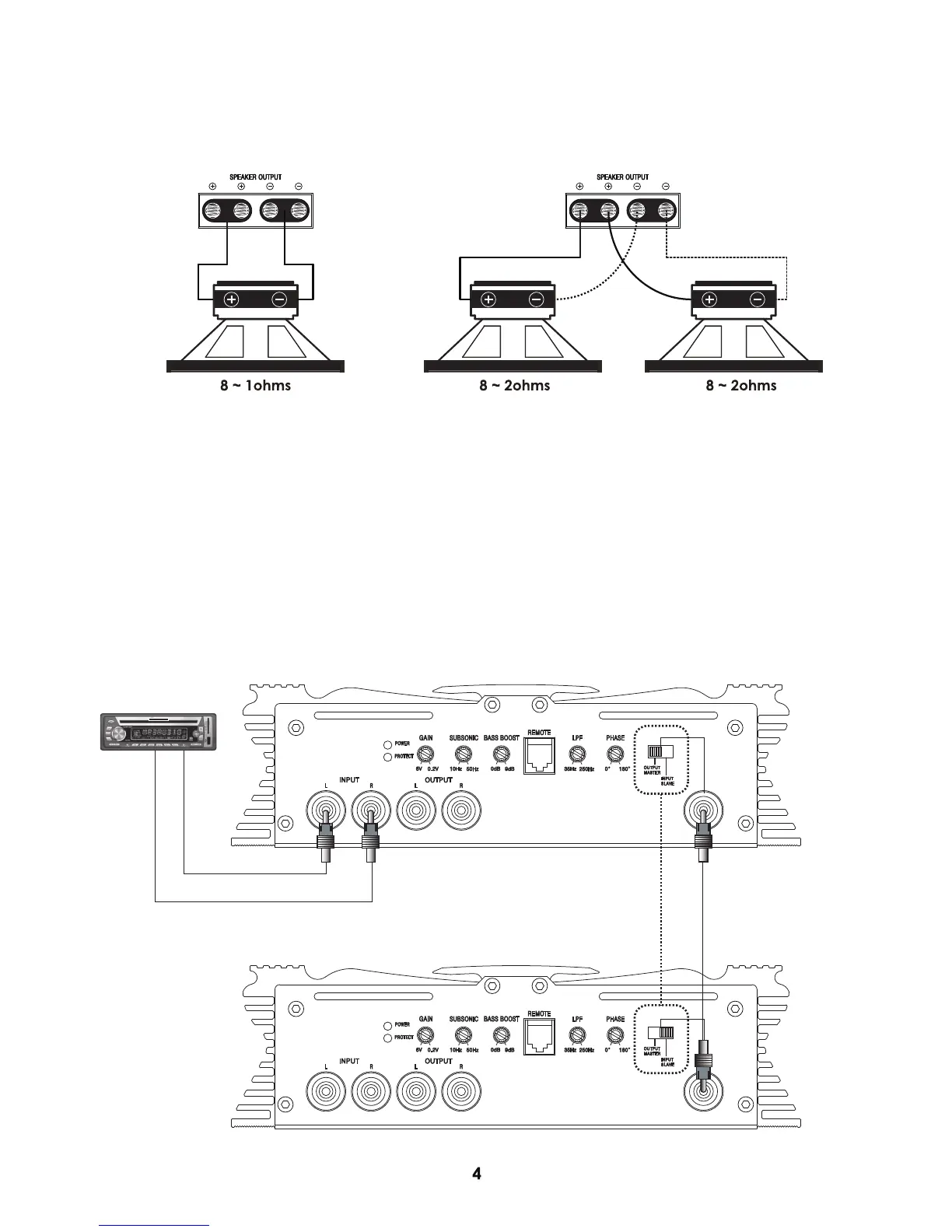

SPEAKER OUTPUT
This terminal connects the Crescendo BC amplifiers to your speakers . Minimum speaker cable should be
12 gauge or larger since our amplifiers put out epic power.
Connect the speakers by checking the impedance as 1 ohm for single unit or 2 ohm for link connection.
LINK CONNECTION
INPUT CONNECTION ;
Step 1. Connect the master amplifier to the head-unit and set its output master / input slave
switch to output master.
Step 2. Set slave amplifier output master / input slave switch to slave input.
Step 3. Connect RCA cable from the master to slave amplifier as shown in the diagram.
+12V SOURCE
Fully adjusted signal is
transferred from master
to slave amp via Rca cable
MASTER AMPLIFIER
SLAVE AMPLIFIER
