Regulators repair and maintenance
January 2008 Rev. ELL. OCTO /A Ed. B / 09 45
2nd stage ELLIPSE Black

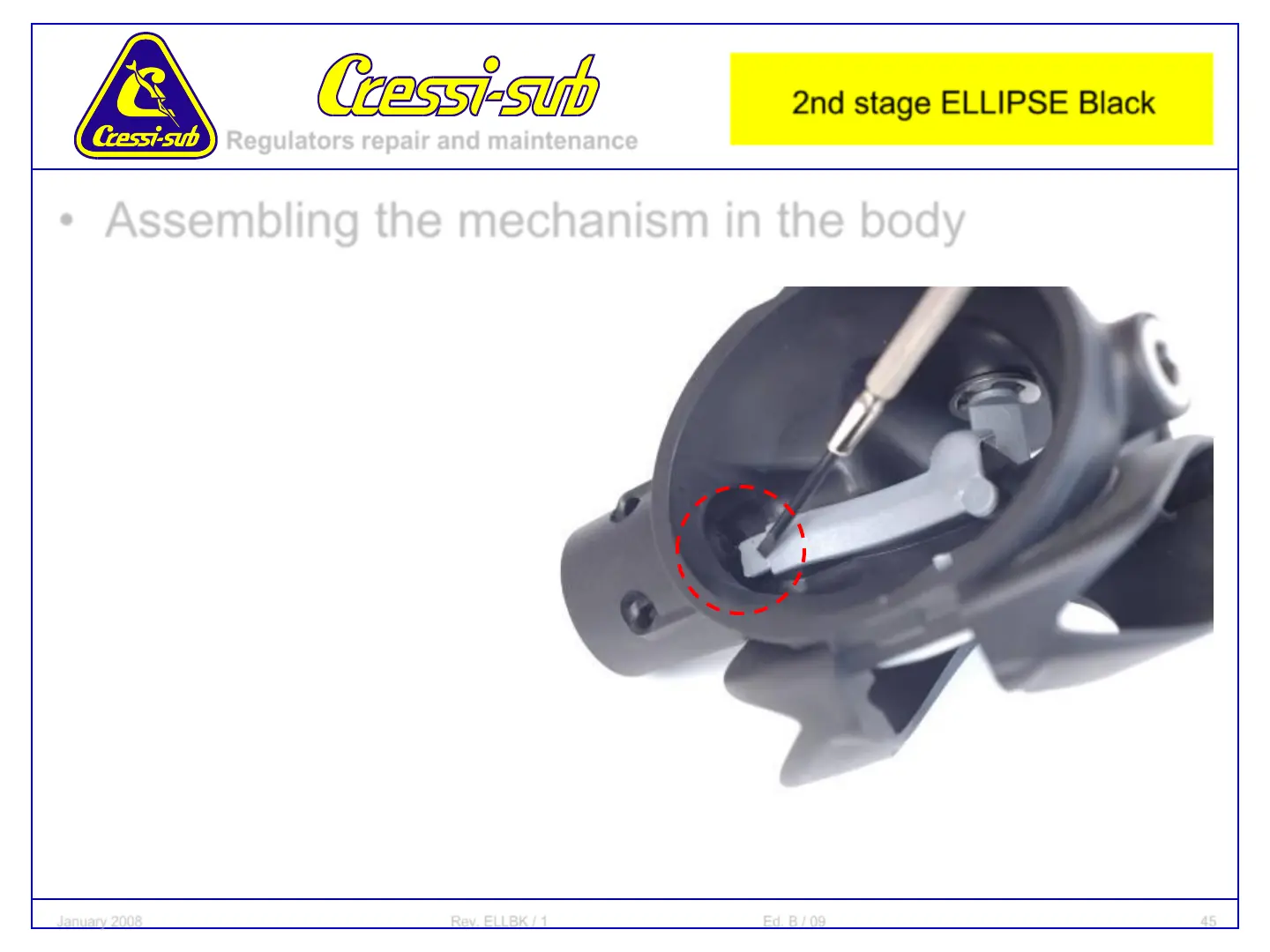

• Insert the previously
assembled and
lubricated 2nd stage
mechanism into the
regulator’s case:
make sure the air
outlet hole under the
lever’s washer is
placed against the
injector’s top, inside
the body.
• Assembling the mechanism in the body
