Regulators repair and maintenance
Regulators repair and maintenance
1
1
st
st
stage MC5 DIN
stage MC5 DIN

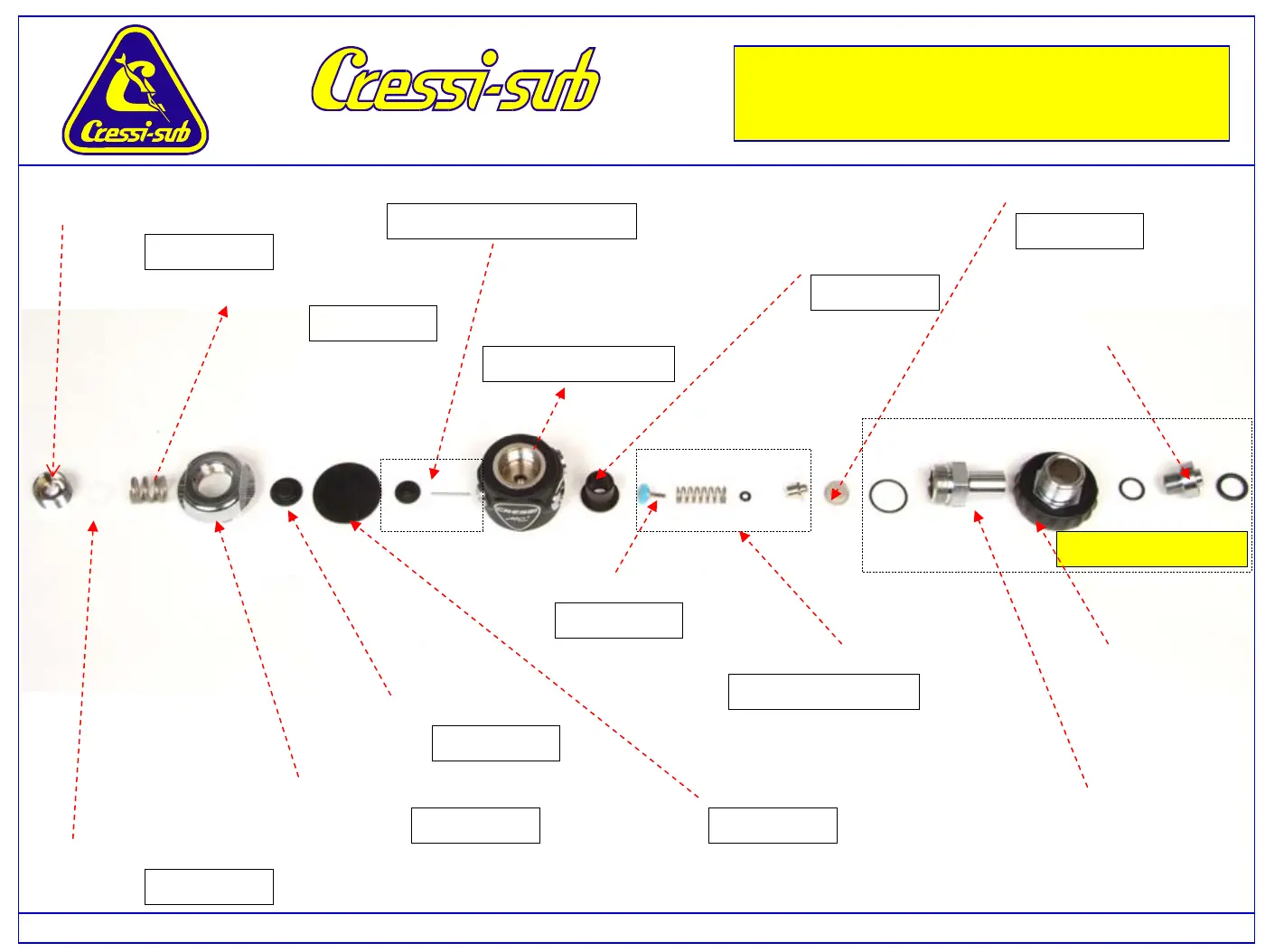

Setting spring
Piattello guida molla
HZ 800081
HZ 800081
HZ 800080
HZ 800080
1st stage body
Setting screw
Spring smoother
Diaphragm blocking disk Diaphragm
Pin pushing tool – pin
HZ 800065
HZ 800064
HZ 800063 HZ 800082
HZ 800062 / HZ 800061
16K = HZ 800060
HP piston jacket
HZ 800059
Complete HP valve
10K = HZ 800058
HP piston
HZ 800085
Filter
HZ 800056
DIN filter body
26K = HZ 800067
DIN wheel
DIN 300 connection
