CRESTRON GREEN LIGHT™ Architectural Dimming
Wiring
NOTE: All wiring must be installed in accordance with all local and national electrical codes.
NOTE: Refer to the torque settings specified on pages 6, 7 and 8.
CRESTRON GREEN LIGHT cabinets are shipped with GLX modules installed and prewired to the branch circuit
breakers. The following must be performed after installation:

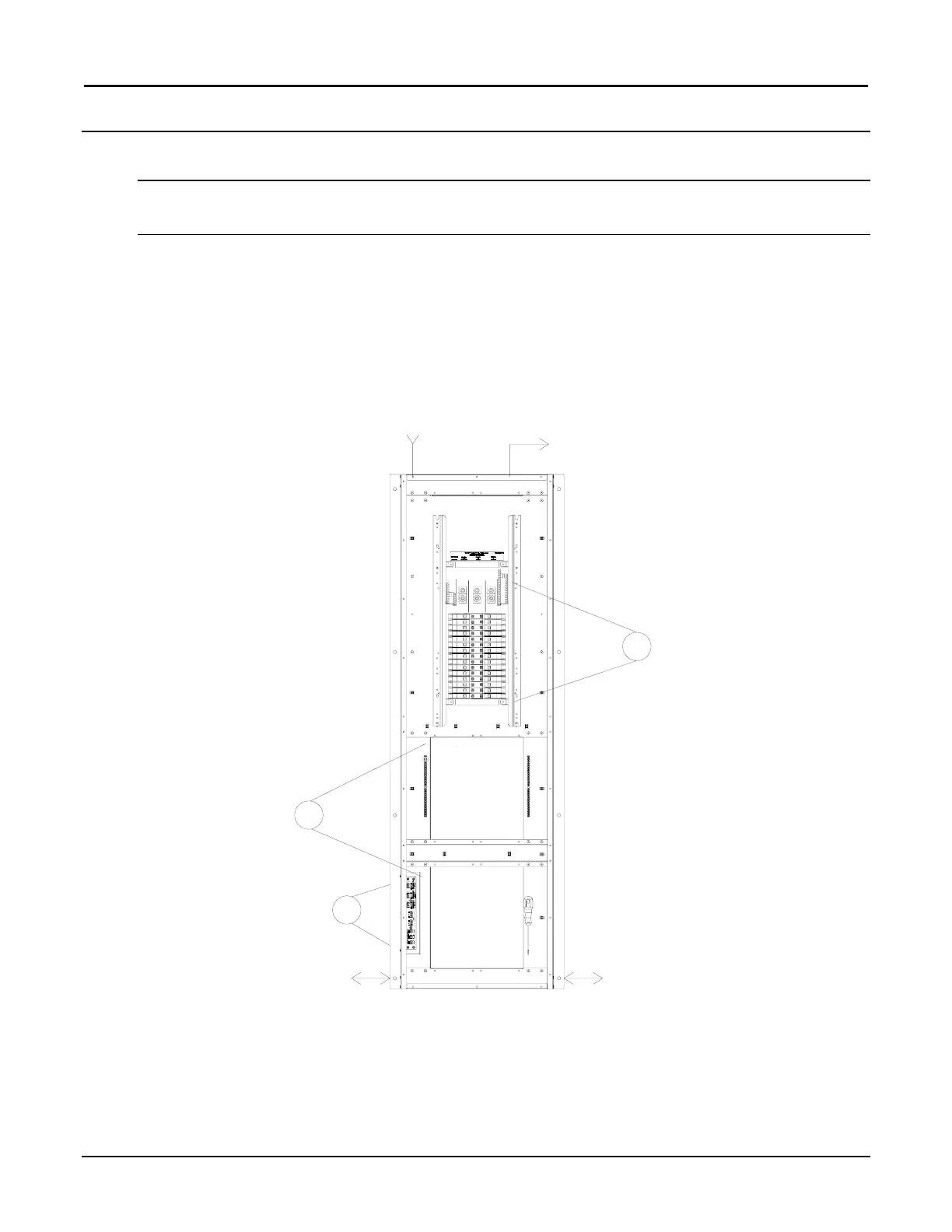

• Connect incoming feed conductors to the breaker panel (section A of the following diagram)
• Connect load wiring to GLX module outputs (section B of the following diagram)
• Connect control wiring (section C of the following diagram)
FEED:
3-PHASE 4-WIRE
MAIN LUG ONLY
TO LOADS:
2W + GND 16A (MAX)
CLASS 2
WIRING ONL
Y
CLASS 2
WIRING ONLY
A
B
C
