Crestron PAC2 Professional Automation Computer
Physical Description
The PAC2 automation control system is housed in a gray and black enclosure with
labeling on the top and front panels. The dimensions are shown in the illustrations on
the next page.

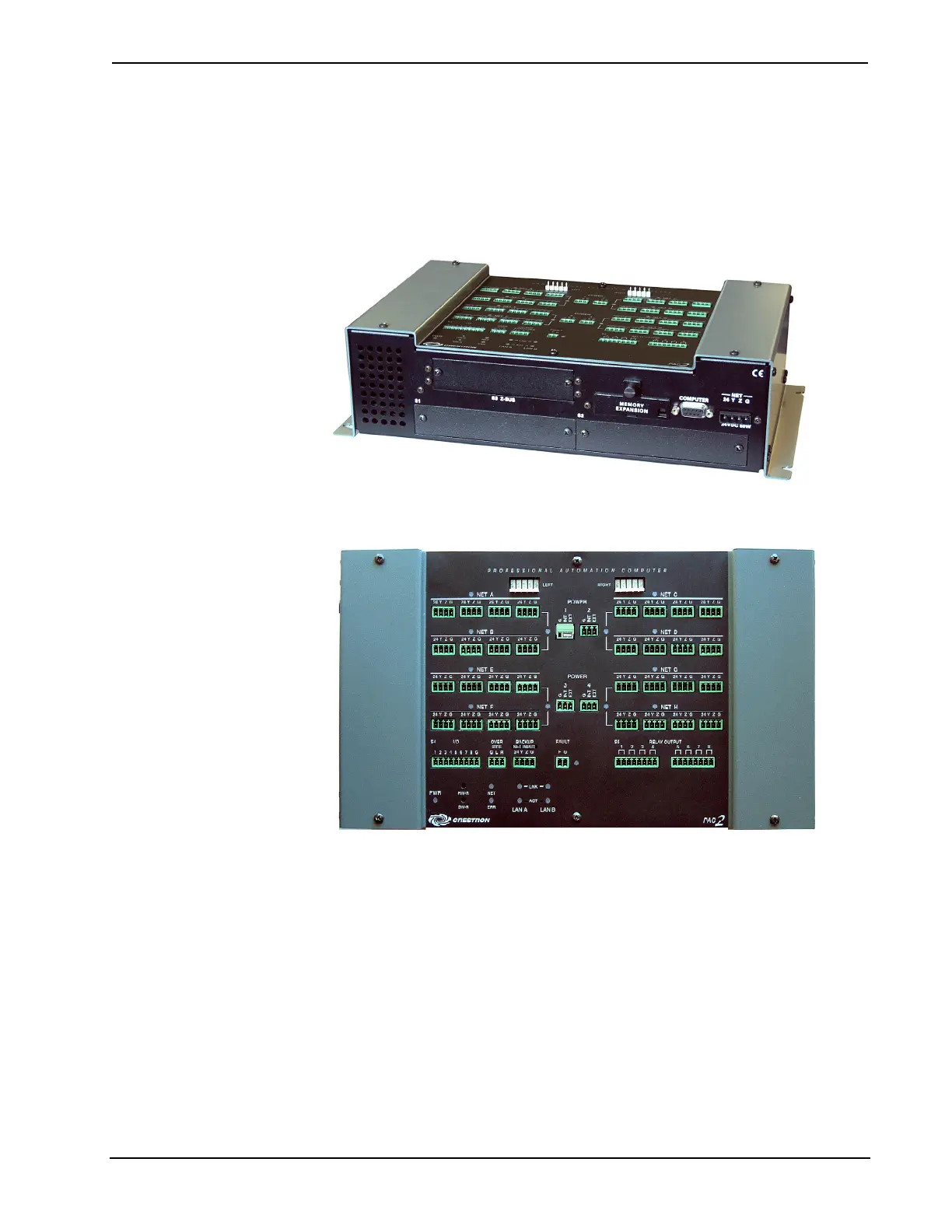

PAC2 Physical View without Optional Y and Z Bus Cards
PAC2 Top View with Optional Jumpered 3-Pin Mini Connector Installed in POWER 1 Port
Operations Guide – Doc. 5941 Professional Automation Computer: PAC2 • 5
