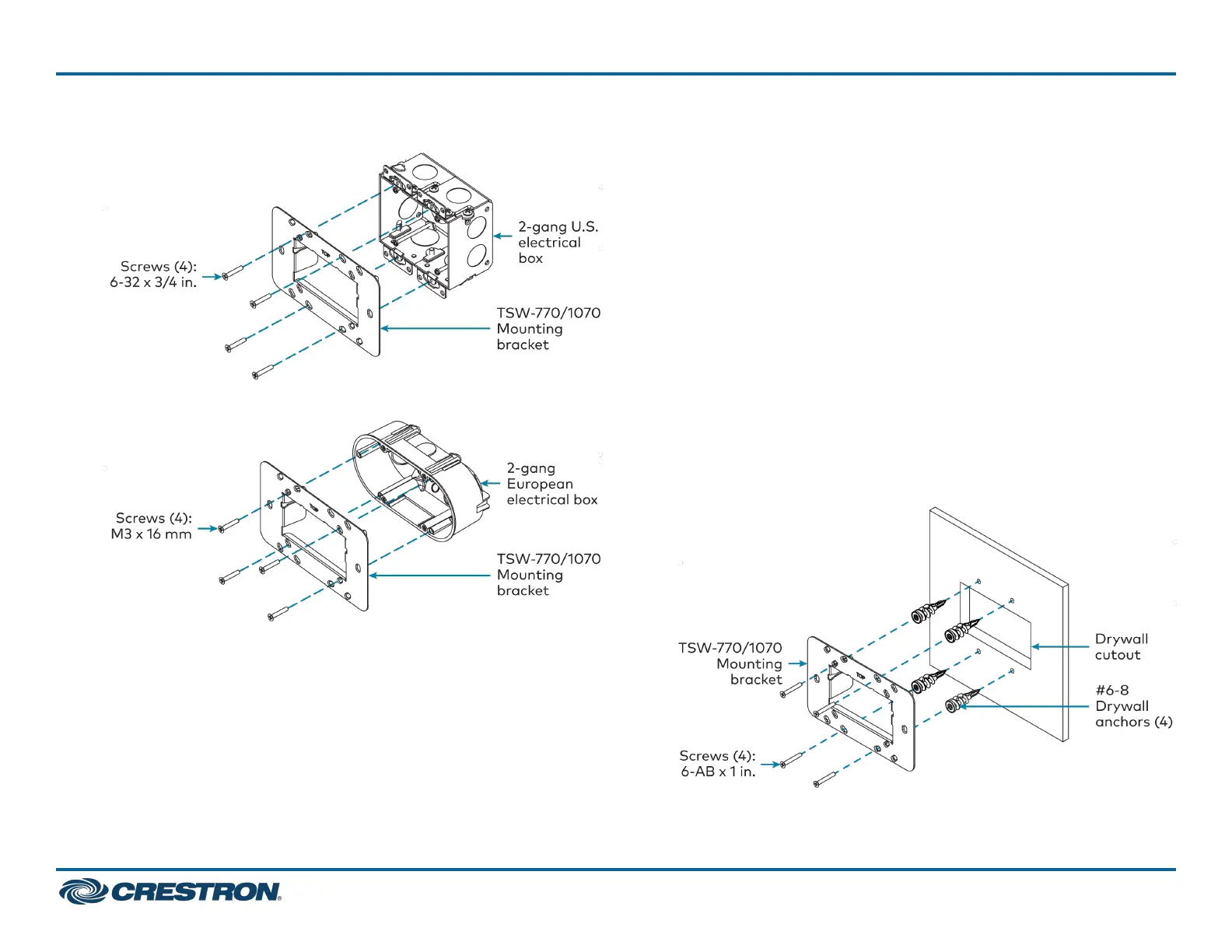

For U.S. installations, use the four 6-32x3/4in.screws.

For European installations, use the four M3x16mmscrews.

For U.K. installations(notpictured),usethetwoM3.5x25mm

screws to attach the mounting bracket to the electrical box. Insert

the screws through the center openings in the left and right sides of

the mounting bracket.

Drywall Mounting

Mounting hardware is provided with the touch screen for drywall

installations without an electrical box. Using this hardware will ensure

that the bracket is completely flush with the touch screen to provide

maximum magnetic force.

To install the mounting bracket into drywall:

1. Using the inside of the mounting bracket as a template, cut a

2–1/8 x 3-5/8 in. (54 x 92 mm)holeintothedrywall.Ensurethe

template is level prior to cutting the hole.

2. Align the mounting bracket with the cutout and ensure it is level.

3. Use one of the anchors to make a center mark in the drywall through

the four 2-gang openings in the template. Refer to the image below

for the required mounting holes.

4. Screw the four anchors into the drywall using the center marks as a

reference.

5. Attach the mounting bracket to the anchors using the four 6-ABx

1in.screwsasshownintheimagebelow.

TSW-570, TSW-770, and TSW-1070

QuickStart

5 in., 7 in., and 10.1 in. Wall Mount Touch Screens
