CRL SM5C - Replacement Parts and Wheels for SM5 C

UNIT CAT. NO. DESCRIPTION
1 47013250 REAR PAD RUBBER
1 47013251 REAR PAD BASE
1 47013252 REAR PAD WITH GLUE ON
1 47013253 FRONT PAD RUBBER
1 47013254 FRONT PAD BASE
1 47013255 TIMING BELT
1 47013256 MOTOR, GRIND/POLISH 2.2KW, 2840 RPM
1 47013257 MOTOR, ARRIS 1.5KW, 2840 RPM
1 47013258 MOTOR, POLISH #5 ONLY 1.5KW, 1400 RPM
1 47013259 SPINDLE WHEEL SUPPORT 130 MM
1 47013260 SPINDLE WHEEL SUPPORT 150 MM
1 SET 47013261 WATERPROOF BELLOWS, O-RINGS, SLINGER
1 47013262 WATER NOZZLE
1 47013263 WATER CONTAINMENT BRUSH 1350 X 85MM -SM5C
1 47013264 WATER CONTAINMENT BRUSH 1150 X 85MM -SM4C
1 47013265 WATER DIVIDER GATE 165 X 85MM
1 47013266 WATER PUMP, 220V -60HZ
1 47013267 AMP GUAGE
1 47013268 AC CONTACTOR 6A
1 47013269 AC CONTACTOR 9A
1 47013270 AUXILIARY CONTACTOR
1 47013271 OVERLOAD RELAY (3US5040-1J)
1 47013272 OVERLOAD RELAY, 1.0-1.6A
1 47013273 OVERLOAD RELAY, 4.0-6.3A
1 47013274 FUSE -6A
1 47013275 INDICATOR LAMP, G23
1 47013276 BUTTON(SWITCH), E-STOP
1 47013277 BUTTON(SWITCH), SELF LOCK, CONVEYOR, FRWD/REV
1 47013278 BUTTON(SWITCH), POWER, START/STOP
1 47013279 BUTTON(SWITCH), POWER, ON/OFF, MOTOR
SM5C WHEELS
GRIT CAT. NO. DESCRIPTION DIMENSIONS POS.
150 39942002 FLAT EDGE CUP DIAMOND 150X50MM POS 1
180 39942101 ARRIS RESIN DIAMOND 130X50MM POS 2
180 39942101 ARRIS RESIN DIAMOND 130X50MM POS 3
40 39942403 POLISHING WHEEL 150X70MM POS 4
CE 39942402 POLISHING WHEEL 150X70MM POS 5
Users Manual for SM5C Straight Line Edging Machgine
(866) 583-1377 Sommer & Maca Machinery Division of C. R. Laurence Co. • crlaurence.com • (800) 421-6144

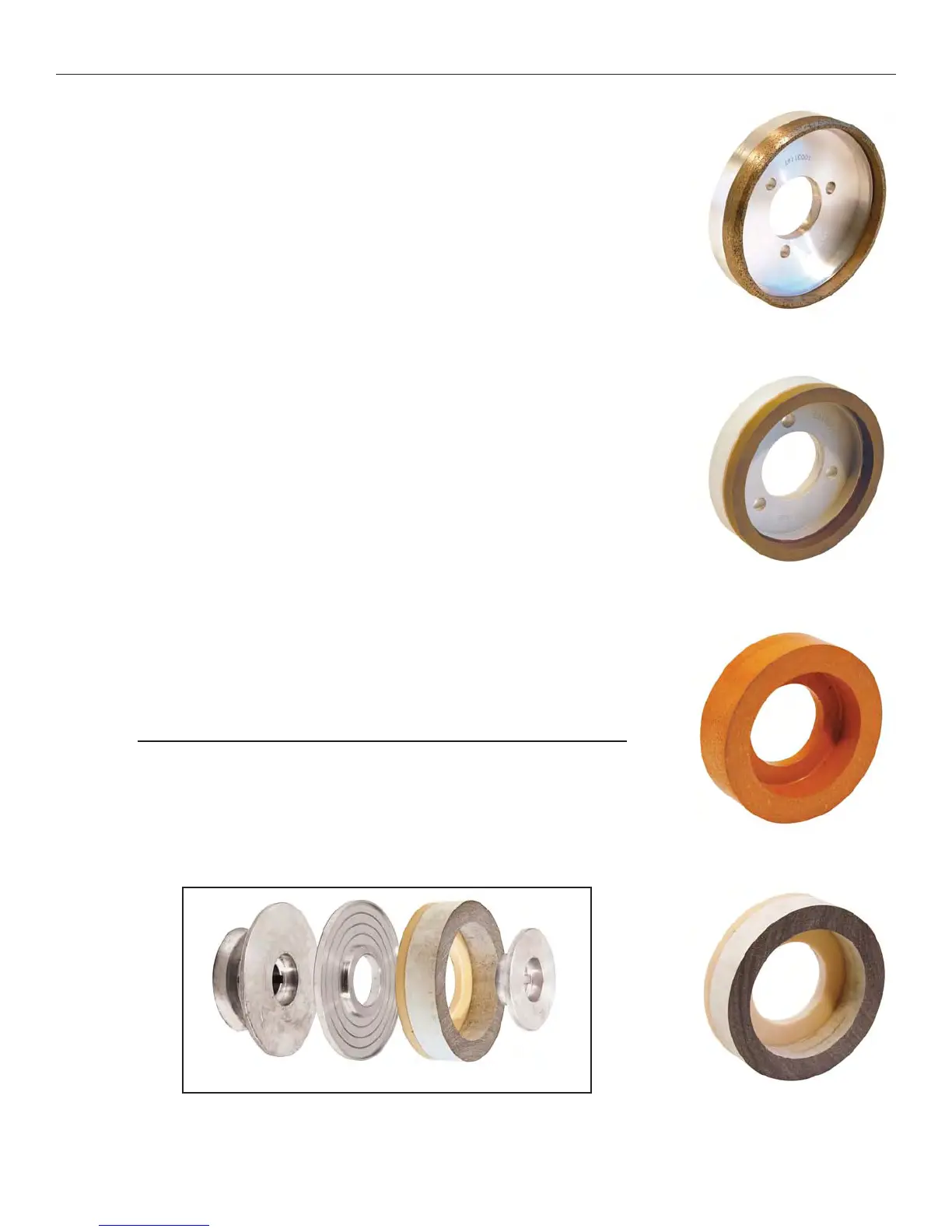

Replacement Parts and Wheels for SM5C
39942002
39942101
39942403
39942402
Spindle Hub (Tray) Spindle Wheel Support Polish Wheel Bushing
POLISH WHEEL ASSEMBLY ARRANGEMENT
