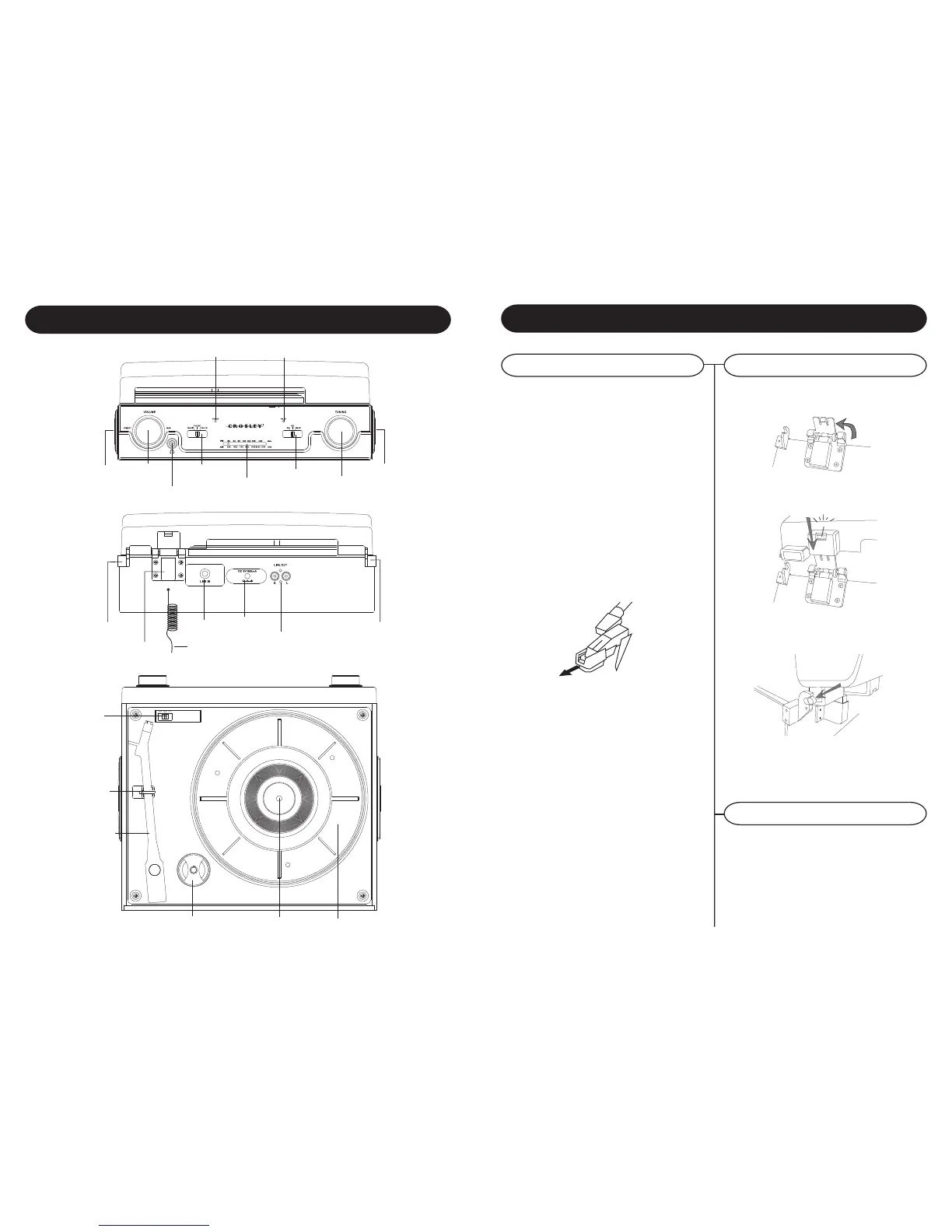

5
1 Remove packing materials from unit.
Note: Save all packing materials.
2 Remove plastic bag covering radio.
3 Remove AC Adaptor from packing.
4 Untie antenna wire on back of radio.
5 Remove black tie-wrap from under the tone arm.
6 Remove white protective needle cover by gently
pulling towards the front of the unit.
7 Install the top lid onto the unit
8 Untie the FM antenna and allow it to hang down
in a straight line for optimum FM reception. If
you have trouble tuning in an FM Station, move
the external FM antenna for best reception. Do
not connect FM antenna to outside antenna
1 Flip the LID LOCK HINGE towards the back of
the unit.
2 Position LID over the turntable and press the lid
onto the LOCK HINGE as shown below.
3 As you press the lid into place, align the PIVOT
PINS on the LID with the LID PIVOT POINTS as
shown below.
4 Press the LID all the way in until the PIVOT PINS
snap into the LID PIVOT POINTS and the LOCK
HINGE clicks into place.
1 Untie the wire on the AC Adaptor
2 Plug the AC Adaptor into appropriate wall outlet.
3 Plug the small end of the adaptor into the AC
ADAPTOR JACK on the back of the unit.
4
POWER INDICATOR
FM.ST
INDICATOR
SPEAKER
VOLUME
ON/OFF
KNOB
EARPHONE
JACK
RADIO/
PHONO/LINE IN
SWITCH
DIAL SCALE
AM\FM\
FM.ST
SWITCH
TUNING KNOB
SPEAKER
Power Source
Control Locators
SPINDLE
TURNTABLE
ADAPTER FOR
45 RPM RECORDS
TONE ARM
TONE
ARM
REST
SPEED
CONTROL SWITCH
AC ADAPTOR
JACK
EXTERNAL
FM ANTENNA
LINE OUT
JACK
LOCK HINGE
LID PIVOT POINT
LID PIVOT POINT
LINE IN
JACK
Getting Started
Unpacking
Lid Installation
