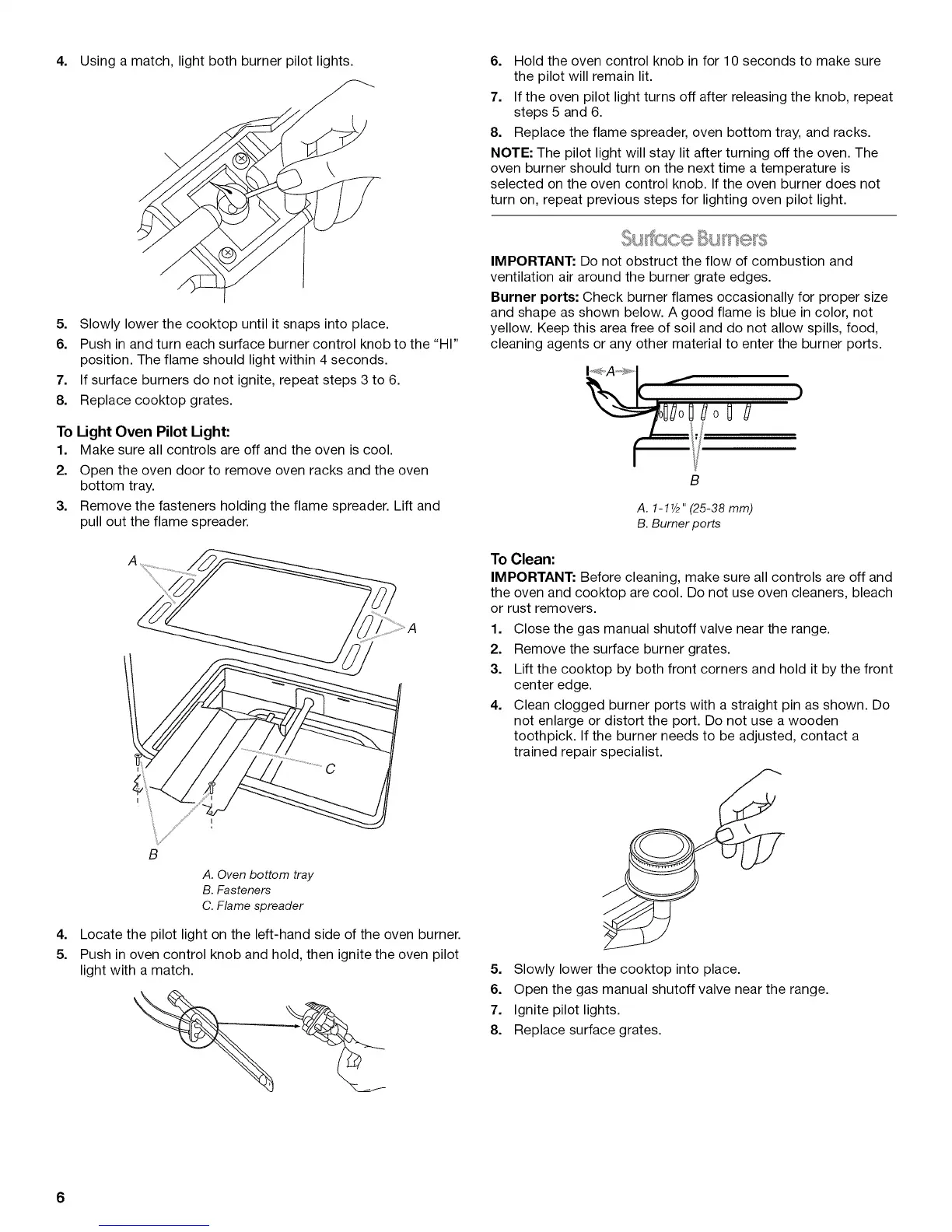

4. Usingamatch,lightbothburnerpilotlights.
5. Slowlylowerthecooktopuntilitsnapsintoplace.
6. Pushinandturneachsurfaceburnercontrolknobtothe"HI"
position.Theflameshouldlightwithin4seconds.
7. Ifsurfaceburnersdonotignite,repeatsteps3to6.
8. Replacecooktopgrates.
To Light Oven Pilot Light:
1. Make sure all controls are off and the oven is cool.
2. Open the oven door to remove oven racks and the oven
bottom tray.
3. Remove the fasteners holding the flame spreader. Lift and
pull out the flame spreader.
6. Hold the oven control knob in for 10 seconds to make sure
the pilot will remain lit.
7. If the oven pilot light turns off after releasing the knob, repeat
steps 5 and 6.
8. Replace the flame spreader, oven bottom tray, and racks.
NOTE: The pilot light will stay lit after turning off the oven. The
oven burner should turn on the next time a temperature is
selected on the oven control knob. If the oven burner does not
turn on, repeat previous steps for lighting oven pilot light.
IMPORTANT: Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Burner ports: Check burner flames occasionally for proper size
and shape as shown below. A good flame is blue in color, not
yellow. Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner ports.
I_ A"-__'_I
OOo! o
y
B
A. 1-1Y2" (25-38 mm)
B. Burner ports
To Clean:
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Do not use oven cleaners, bleach
or rust removers.
1. Close the gas manual shutoff valve near the range.
2. Remove the surface burner grates.
3. Lift the cooktop by both front corners and hold it by the front
center edge.
4. Clean clogged burner ports with a straight pin as shown. Do
not enlarge or distort the port. Do not use a wooden
toothpick. If the burner needs to be adjusted, contact a
trained repair specialist.
4=
5.
A. Oven bottom tray
B. Fasteners
C. Flame spreader
Locate the pilot light on the left-hand side of the oven burner.
Push in oven control knob and hold, then ignite the oven pilot
light with a match. 5. Slowly lower the cooktop into place.
6. Open the gas manual shutoff valve near the range.
7. Ignite pilot lights.
8. Replace surface grates.
6
