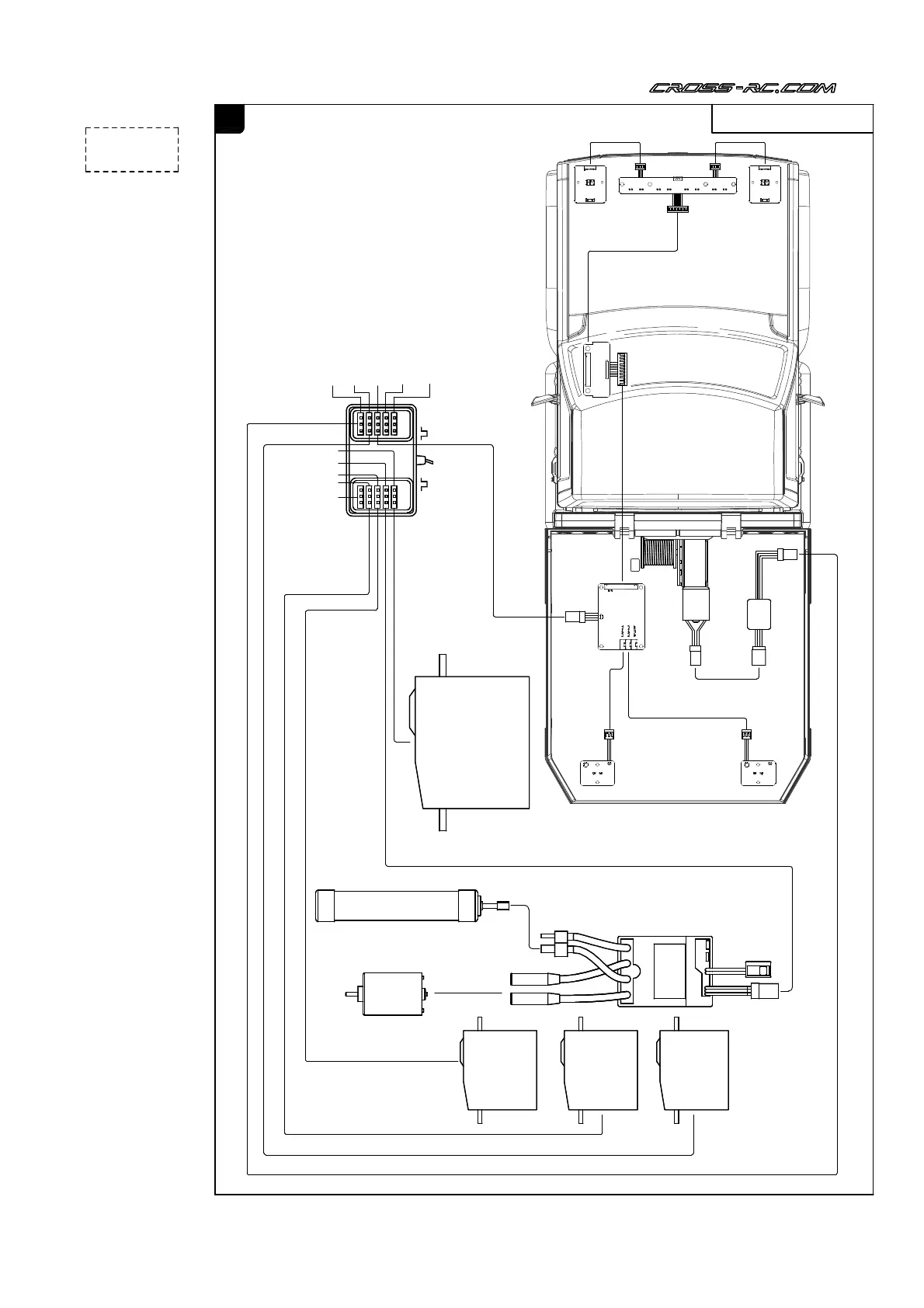

CROSS-RC EMO X3 - Final Wiring Connections; Receiver Channel Assignments and Layout

BAG(Y)
45
EMOX3
Electronics
speed control
ON/OFF
Switch
CH2
(Not included)
Battery
(Not included)
Motor
CH1
Steering
(Not included)
CH7
Shift
(Not included)
CH3
(Not included)
servo
servo
Front
diffrerntial lock
servo
CH4
(Not included)
Rear
diffrerntial lock
servo
ESC
Bottom
CH1
CH2
CH3
CH4
CH5
-
+
-
+
CH6 CH7 CH8 CH9 CH10
CH8
CH6
87175
87179
87178
87180
87177
87176 87176
95102
