3 Assembly description
The EDS-3000 is a robust detector which includes big indication led prism that can be easily
observed from long distance. Having a back metal bracket, the EDS-3000 can be easily mounted
to walls and poles using mounting screws or metal bands (supplied).
The EDS-3000 is combined of three detection elements:
Upper PIR element
Lower PIR element
Microwave element
The upper PIR element has an adjustable detection height while the other two are fixed.

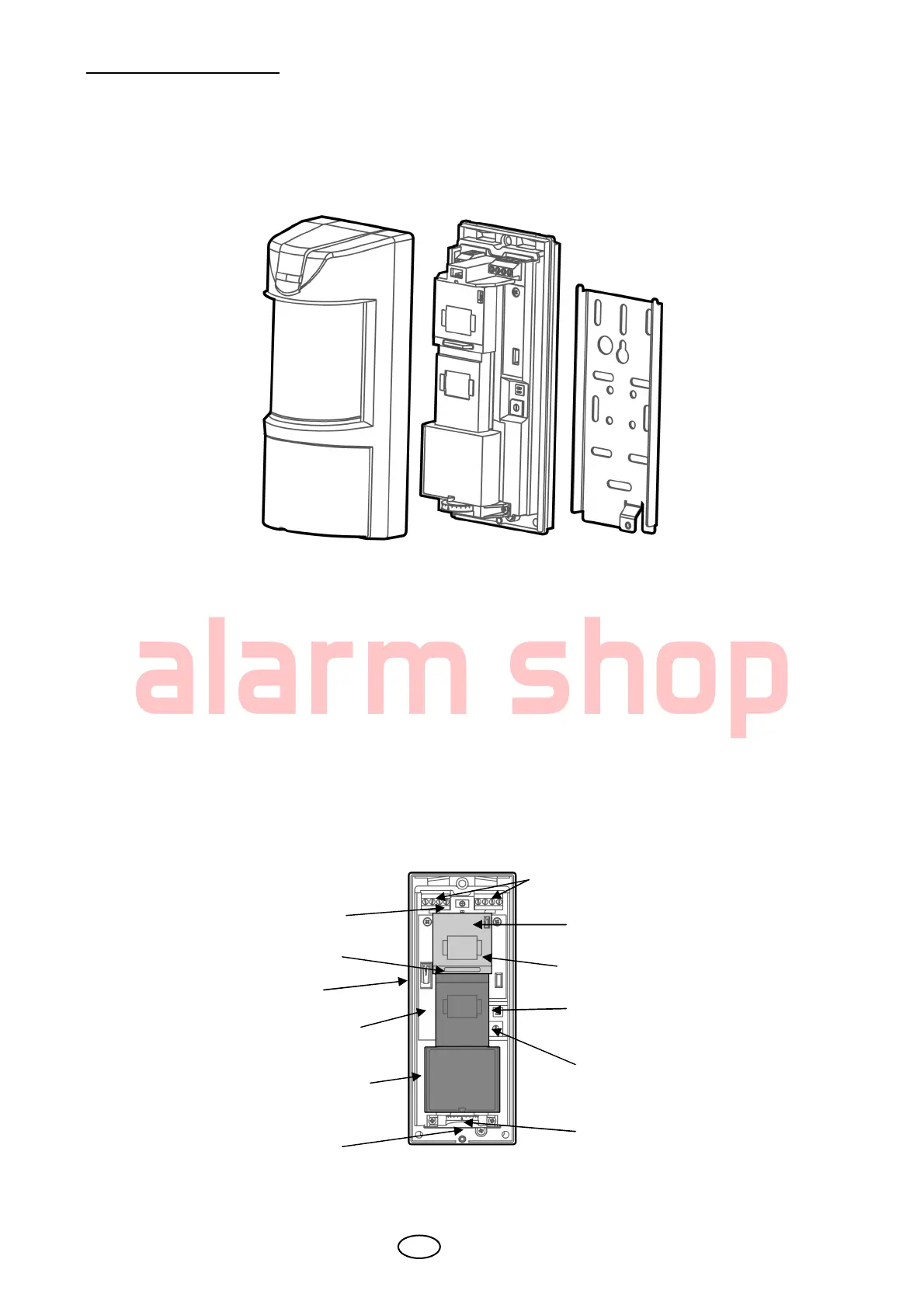

The following drawing shows all internal elements:
Upper PIR element
Lower PIR element
Mi
c
r
owave
e
l
e
m
e
n
t
LED
Terminal Connection Blocks
LED and Buzzer dipswitches
Sensitivity setting
Direction An
g
le Indicato
r
Range setting handle
Range Indication
Tamper switch
Bracket locking screw
