Crown CM-311AE - WIRING DIAGRAMS; Wiring CM-311 AE, CM-312 AE or GLM-100 E to TA3 F and TA4 F Connectors

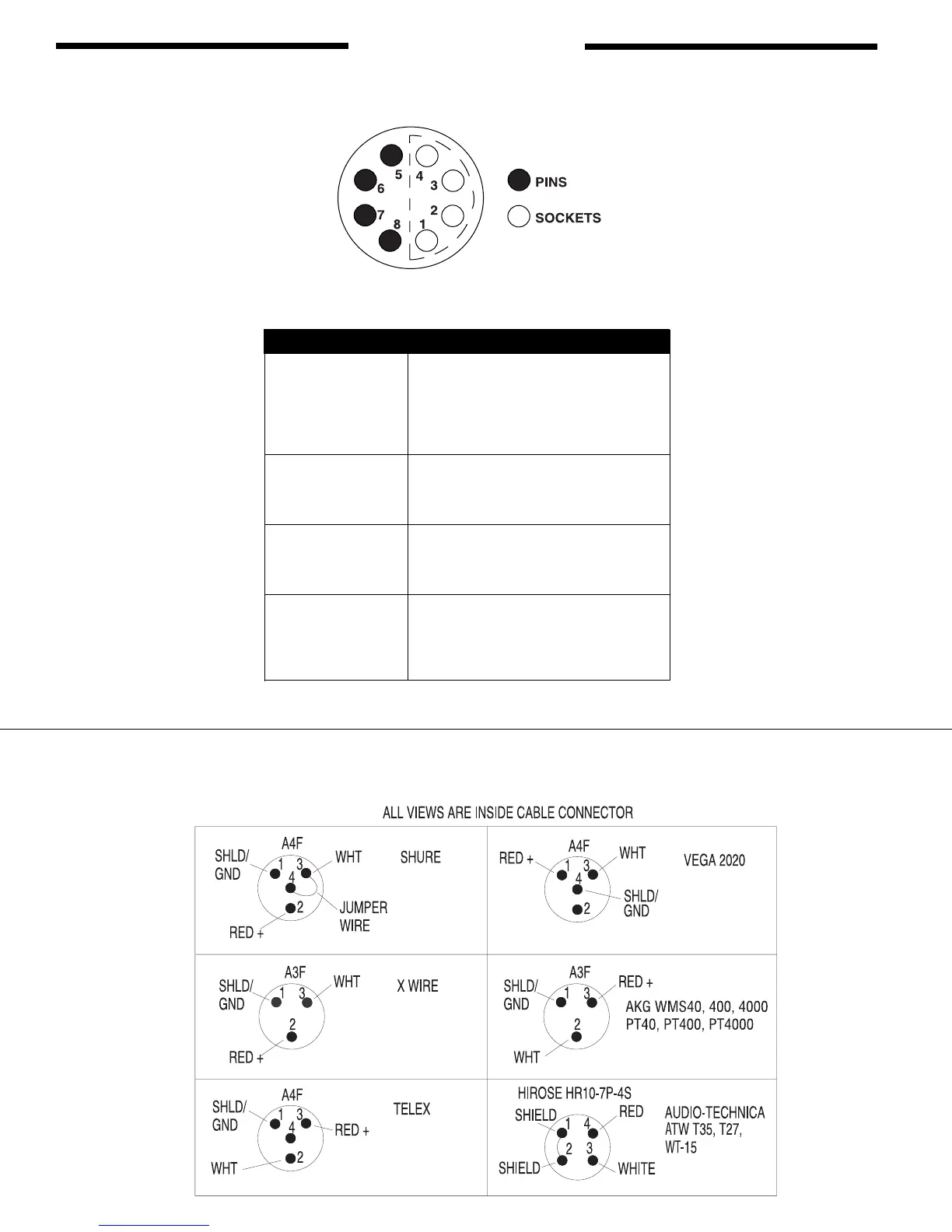

WIRING DIAGRAMS
LEMO FFA2C308 MIC CABLE CONNECTOR
(VIEW FROM SOONNECTORLDERING SIDE OF C)
CM-10E 3 - yellow
6 - shield
4 - black
Jumper between 5 & 6
4.7K between 8 & 3
CM-311AE 8 - red
3 - white
6 - shield
Jumper between 5 & 6
CM-312AE 8 - red
3 - white
6 - shield
Jumper between 5 & 6
GLM-100E 8 - red
3 - white
6 - shield
Jumper between 5 & 6
MODEL PINS
Wiring CM-311AE, CM-312AE or GLM-100E
to TA3F and TA4F Connectors
Connecting Crown Microphones to a Micron Transmitter
