Crown CM-311AE - CONNECTIONS TO CM-311 E; Audio-Technica; Beyerdynamic; Comtek

CONNECTIONS TO CM-311E
MODEL CONNECTOR PINS
Nady Switchcraft TA3F 1-shield
All models
2-red. Remove connection,
connect pin 2 to battery +.
3-white
Samson Hirose HR10- 1-red
TX-3, UT-4 7P-6S Remove connection,
BT-3, CT-2 connect pin 1 to battery +.
4-white
6-shield
UT-5 Hirose HR10- 1-red
7P-6S 2-white
6-shield
ST-2 No connector 1 + 2-shield
3-red (B+)
4-white (audio)
CT-3 No connector 1-red (B+)
2-white (audio)
3 + 4-shield
Shure Switchcraft TA4F 1-shield
L-11, SC1, LX1, 2-red. For Cm-311E
U-1 (UHF), T-1 only, contact Shure for 9V
bias, mod.
3-white
4-jumper to pin 3
Sony SMC-9 CM-312E only:
WRT-28, 1-red
WRT-820A 2-white
3 and 4-shield
or try 1-red, 3-white,
4-shield
Telex Switchcraft TA4F 1-shield
WT-55, WT-60, or Lemo 4-pin 2-white
WT-80, WT-150,
4-red
WT-450
Vega Lemo 4-pin 1-white
F.O. 304
2-red
NYL U/3.2
4-shield
Switchcraft TA4F 1-red. Remove connection,
connect pin 1 to battery +.
3-white
4-shield
MODEL CONNECTOR PINS
Audio-Technica Hirose HR10- 1and 2-shield
ATW 7P-4S 3-white
T35, T27 4-red. For T31 only, remove
connection, connect pin 4
to battery +.
ATW 1031 Hirose HR10- 1-shield
7P-4S 3-white
4-red. Remove connection,
connect pin 4 to
battery +.
ATW T21 4 pin DIN case-shield
1-white
3-red
Beyerdynamic Lemo FG331 1-shield
2-red
3-white
TS-190, 4-pin binder 2-shield
TS-900 (UHF) conn. #711 3-white
4-red. Remove connection,
connect pin 4 to battery +.
Comtek 750 mono mini, 1-shield
M-72, M72-B 851 micro mini, 2-white
M-182, M-82 Switchcraft TA4F 3-red. Remove connection,
or TA3F, Lemo connect pin 3 to battery +.
4-pin
Electro-Voice TA4F 1-red
MB2000A 3-white
MB2500 4-shield. 470 pF cap. bet.
pins 3 and 4
HME Switchcraft TA4F 1-shield
All models 2-white
3-red
HME note: To increase bass and reduce treble at the expense of output
level, solder a 6.8K resistor between pin 2 and its wire inside the trans-
mitter.
Lectrosonics Switchcraft TA5F 1-shield
M185, M187 2-red. Remove connection,
UM190, UM195 connect pin 2 to battery +.
UM200 3-white
Lightspeed Hirose HR10- 1-shield
Technologies 7P-4S 3-white
BP Series 4-red
The CM-311E works only on 9V.
If your transmitter supplies 9V at its connector, you can connect a CM-311E to your transmitter as described in the chart below.
NOTE:
To convert a CM-311 or CM-311A for wireless use, either cut the cable and add the CM-311AE EQ module or connect the beltpack XLR output to the transmitter input.

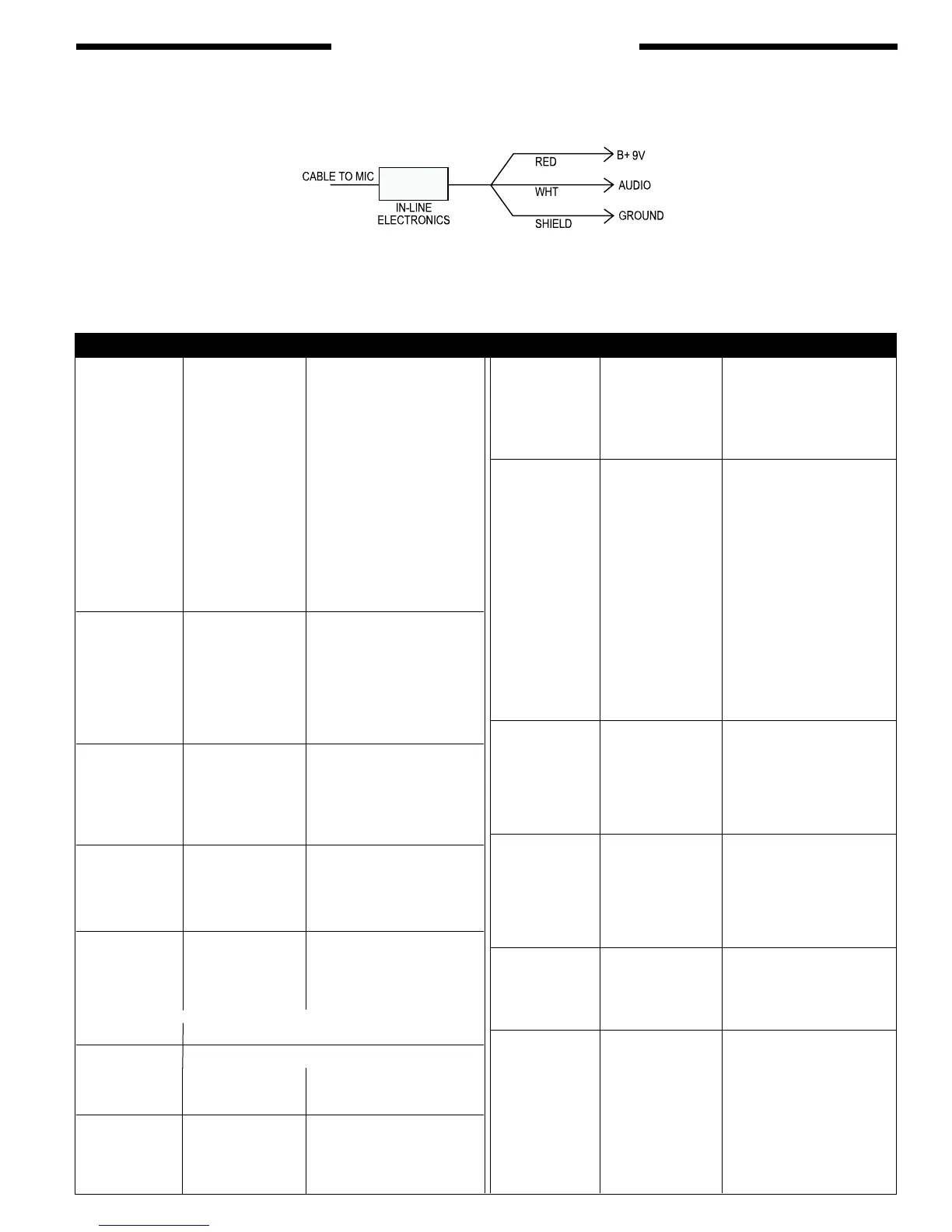

CM-311AE EQ module: shield = ground, white = audio, red = B+.
XLR: 1 + 3 = shield, 2 = audio (no B+ needed).
