AKG TA3F 1-shield
WMS40 (PT40) 2-white
WMS400 (PT400) 3-red
WMS4000 (PT4000)
Audio-Technica Hirose HR10- 1 and 2-shield
ATW 7P-4S 3-white
T35, T27, 4-red
WT-15
ATW T21 4 pin DIN case-shield
(now obsolete) 1-white
3-red
Beyerdynamic Lemo FG331 1-shield
TS-170, TSP 2-red
TS-600 3-white
TS-190, 4-pin binder 2-shield
TS-900 (UHF) conn. #711 3-white
4-red
Comtek 750 mono mini, 1-shield
M-72, M72-B 851 micro mini, 2-white
M-182, M-82 Switchcraft TA4F 3-red
or TA3F, Lemo
4-pin
Electro-Voice TA4F 1-red
MB2000A 3-white
MB2500 4-shield. If RFI, use
200-560 pF capacitor
between
pins 3 and 4
R100 see Telex notes
R200 see Telex notes
HME Switchcraft TA4F 1-shield
All models 2-white
3-red
HME note: To increase bass and reduce treble at the expense of output
level, solder a 6.8K resistor between pin 2 and its wire
inside the transmitter.
Lectrosonics Switchcraft TA5F 1-shield
M185, M187 2-red
UM190, UM195 3-white
UM200
Lightspeed Hirose HR10- 1-shield
Technologies 7P-4S 3-white
BP Series 4-red
Nady Switchcraft TA3F 1-shield
All models 2-red
3-white

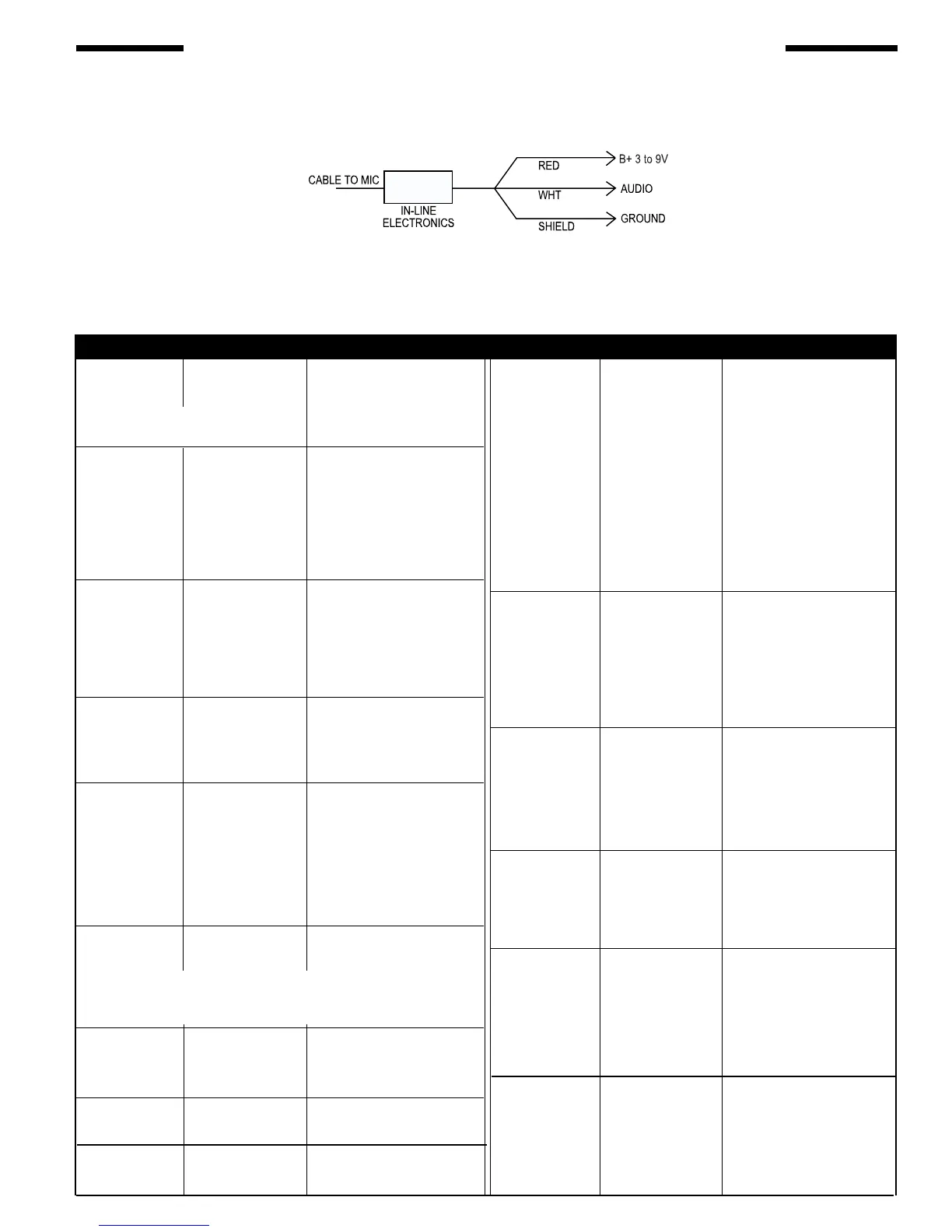

CONNECTIONS TO CM-311AE, CM-312AE AND CM-312E
MODEL CONNECTOR PINS
Samson Hirose HR10- 1-red
TX-3, UT-4, 7P-6S 4-white
BT-3, CT-2 6-shield
UT-5 Hirose HR10- 1-red
7P-6S 2-white
6-shield
ST-2 No connector 1 + 2-shield
3-red (B+)
4-white (audio)
CT-3 No connector 1-red (B+)
2-white (audio)
3 + 4-shield
Shure Switchcraft TA4F 1-shield
L-11, SC1, LX1, 2-red
U-1 (UHF), T-1 3-white
4-jumper to pin 3
U1L-VA Lemo 4-pin 1-white
UC1L 2-red
4-shield
3-jumper to pin 1
Sony
WRT-820A SMC-9 1-red +5V
2-white
4-shield
WRT-805A 3.5 mm T-white
mini-plug R-red +5V
S-ground
Telex Switchcraft TA4F 1-shield
WT-55, WT-60, or Lemo 4-pin 2-white
WT-80, WT-150,
3-red
WT-450
Vega Lemo 4-pin 1-white
F.O. 304
2-red
NYL U/3.2
4-shield
Switchcraft TA4F 1-red
3-white
4-shield
X-wire TA3F 1-shield
2-white
3-red
MODEL CONNECTOR PINS
