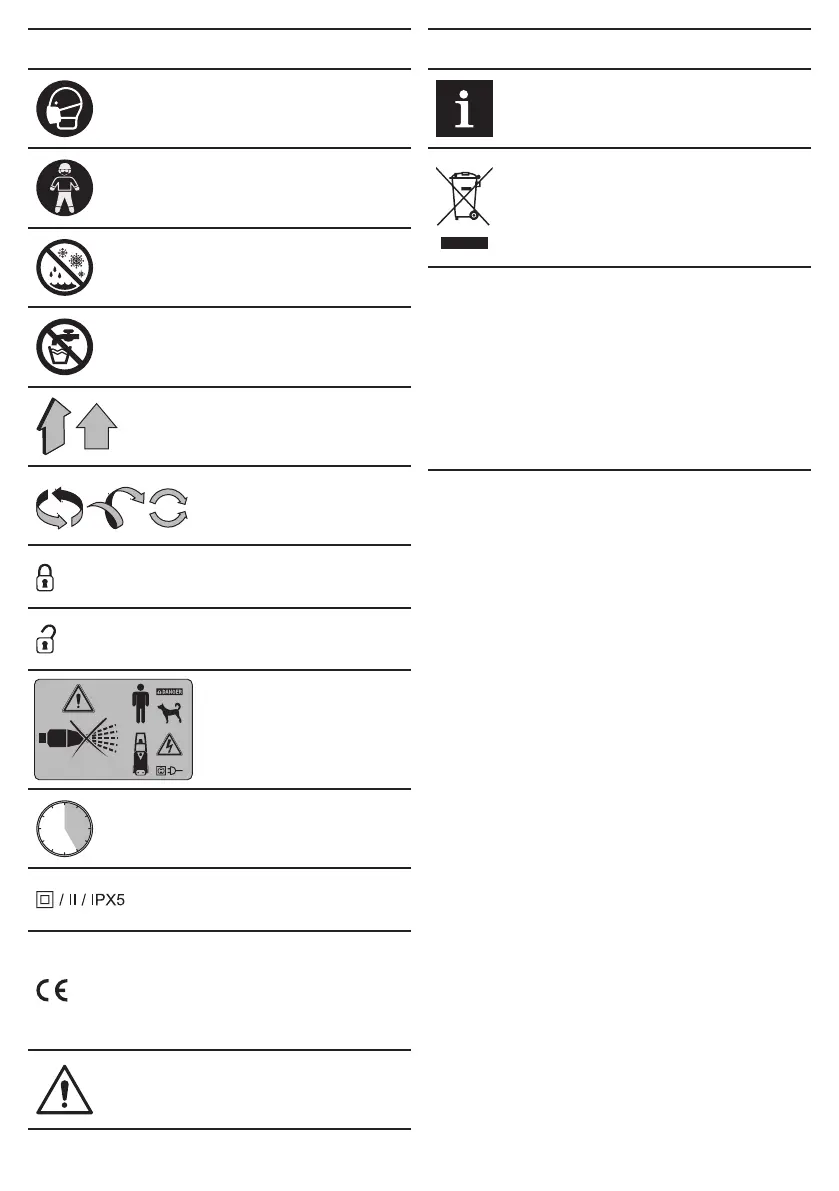

Symbol Meaning
Wear a dust mask�
Wear dense texture clothes
and rugged footwear with
non-slip soles�
Do not work in rain or snow�
Not suitable for connection
to the potable water mains�
Movement direction�
Rotation direction�
Locked�
Unlocked�
Forbid to point the gun to
people, animals, live electri-
cal equipment or the appli-
ance itself�
Maximum wait time�
Double insulation / protec-
tion class�
A sign certifying that the
product complies with es-
sential requirements of the
EU directives and harmo-
nized EU standards�
Attention� Important�
Symbol Meaning
Useful information�
Do not dispose of the appli-
ance in a domestic waste
container�
Appliance designation
The appliance is intended for washing works with a
pressure water jet�
The intended use of this appliance covers the cleaning
of vehicles, buildings, terraces, facades and garden
equipment using clean water and biodegradable
chemical detergents� Likewise the appliance can be
used to clean paving slabs or rain gutters�
Use this appliance for private households only�
Appliance components
1 Washer gun holder (upper) *
2 On / off switch
3 Detergent quantity knob
4 Housing
5 Washer gun holder (lower) *
6 Inlet tting (low pressure)
7 Cable holder *
8 Wheel *
9 Power cable
10 Handle *
11 Pressure hose holder *
12 Detergent supply pipe
13 Detergent tank plug
14 Rear holder *
15 Detergent tank *
16 Outlet tting (high pressure)
17 Pressure hose *
18 Spray gun *
19 Jet pipe *
20 Filter (assembly) *
21 Reel *
22 Extension tube *
23 Fixing screw for rear holder
24 Fixing screw for washer lower holder
25 Fixing screw for handle *
26 Fixing screw for hose holder *
27 Fixing screw for reel *
28 Filter housing *
29 Filter element *
30 Pressure hose tting lock *
31 Trigger *
32 Lock button of trigger *
* Optional extra
Not all of the accessories illustrated or described
are included as standard delivery.
