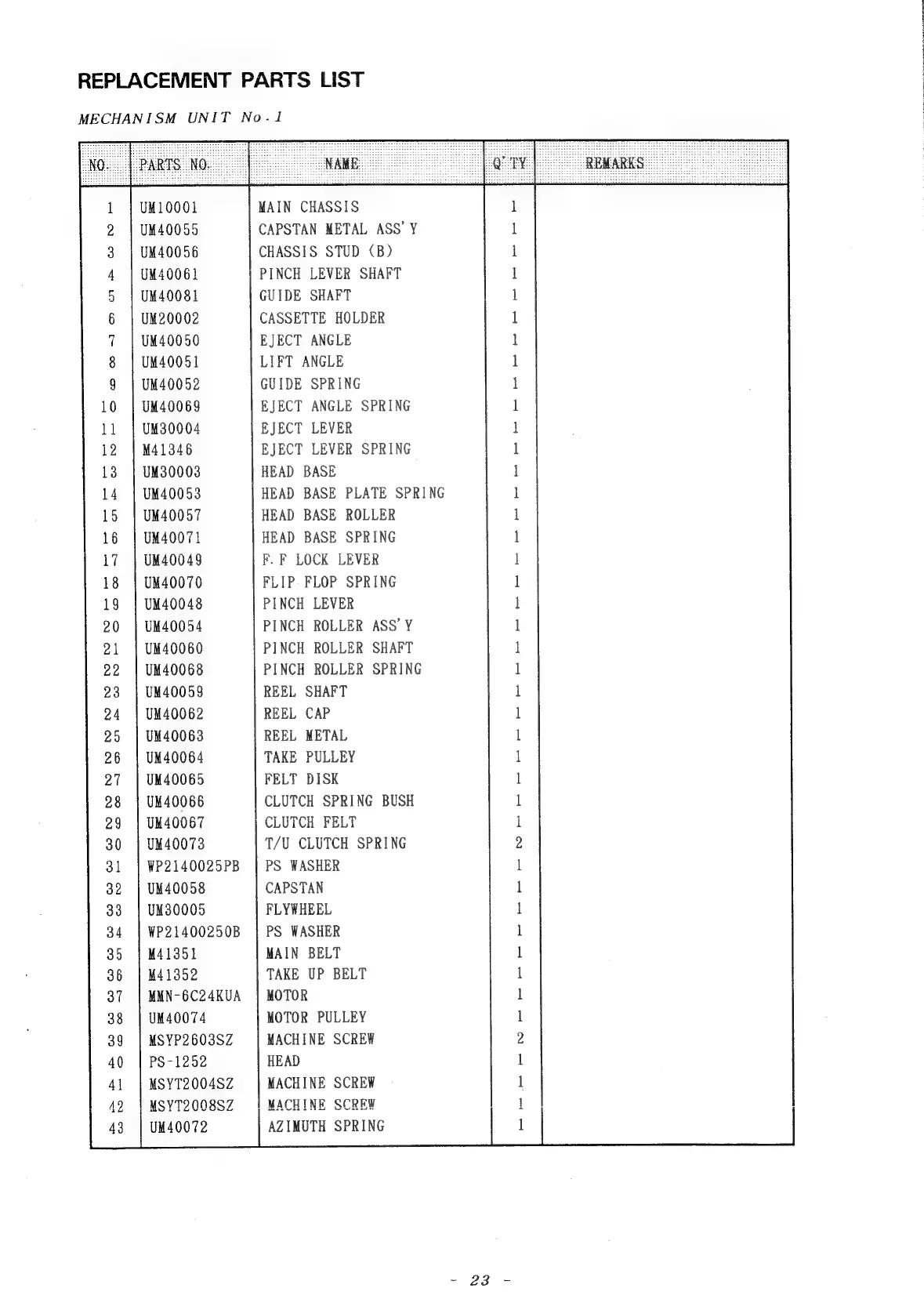

REPLACEMENT PARTS LIST
MECHANISM UNIT No.1
1 | UM10001 MAIN CHASSIS 1
2 | UM40055 CAPSTAN METAL ASS’ Y 1
3 | UM40056 CHASSIS STUD (B) 1
4 | UM40061 PINCH LEVER SHAFT 1
5 | UM40081 GUIDE SHAFT 1
6 | UM20002 CASSETTE HOLDER l
7 | UM40050 EJECT ANGLE 1
8 | UM40051 LIFT ANGLE 1
§ | UM40052 GUIDE SPRING 1
10 | UM40069 EJECT ANGLE SPRING l
11 | UM30004 EJECT LEVER 1
12 | M41346 EJECT LEVER SPRING 1
13 | UM80003 HEAD BASE 1
14 | UM40053 HEAD BASE PLATE SPRING 1
15 ) UM40057 HEAD BASE ROLLER 1 |
16 | UM40071 HEAD BASE SPRING 1
17 | UM40049 F. F LOCK LEVER 1
18 | UM40070 FLIP. FLOP SPRING 1
19 | UM40048 PINCH LEVER 1
20 | UM40054 PINCH ROLLER ASS’ Y 1
21 | UM40060 PINCH ROLLER SHAFT 1
22 | UM40068 PINCH ROLLER SPRING 1
23 | UM40059 REEL SHAFT 1
24 | UM40062 REEL CAP 1
25 | UM40063 REEL METAL 1
26 | UM40064 TAKE PULLEY 1
27 | UM40065 FELT DISK 1
28 | UM40066 CLUTCH SPRING BUSH 1
29 | UM40067 CLUTCH FELT 1
30 | UM40073 T/U CLUTCH SPRING 2
31 | WP2140025PB | PS WASHER l
32 | UM40058 CAPSTAN 1
33 | UM30005 FLYWHEEL 1
34 | WP21400250B | PS WASHER 1
35 | M41351 MAIN BELT 1
36 | M41352 TAKE UP BELT 1
37 | MMN-6C24KUA | MOTOR 1
38 | UM40074 MOTOR PULLEY 1
39 | MSYP2608SZ MACHINE SCREW 2
40 | PS-1252 HEAD 1
41
|
MSYT2004SZ
MACHINE
SCREW
1
42 | MSYT2008SZ MACHINE SCREW 1
43
|
UM40072
AZIMUTH
SPRING
1
