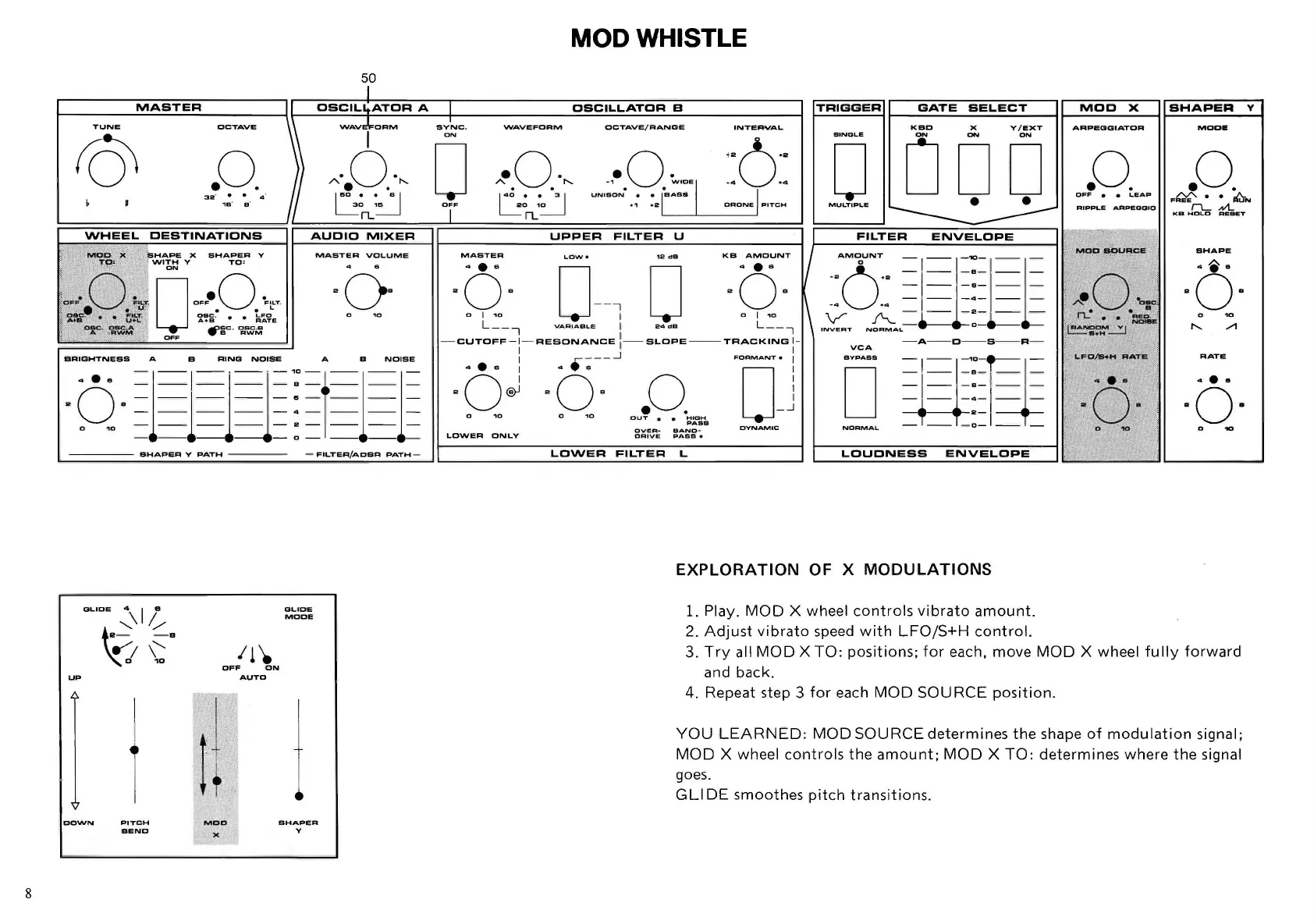

EXPLORATION OF X MODULATIONS
1. Play. MOD X wheel controls vibrato amount.
2. Adjust vibrato speed with LFO/S+H control.
3. Try all MOD X TO: positions; for each, move MOD X wheel fully forward
and back.
4. Repeat step 3
for each MOD SOURCE position.
YOU LEARNED: MOD SOURCE determines the shape of modulation signal;
MOD X wheel controls the amount; MOD X TO: determines where the signal
goes.
GLIDE smoothes pitch transitions.
