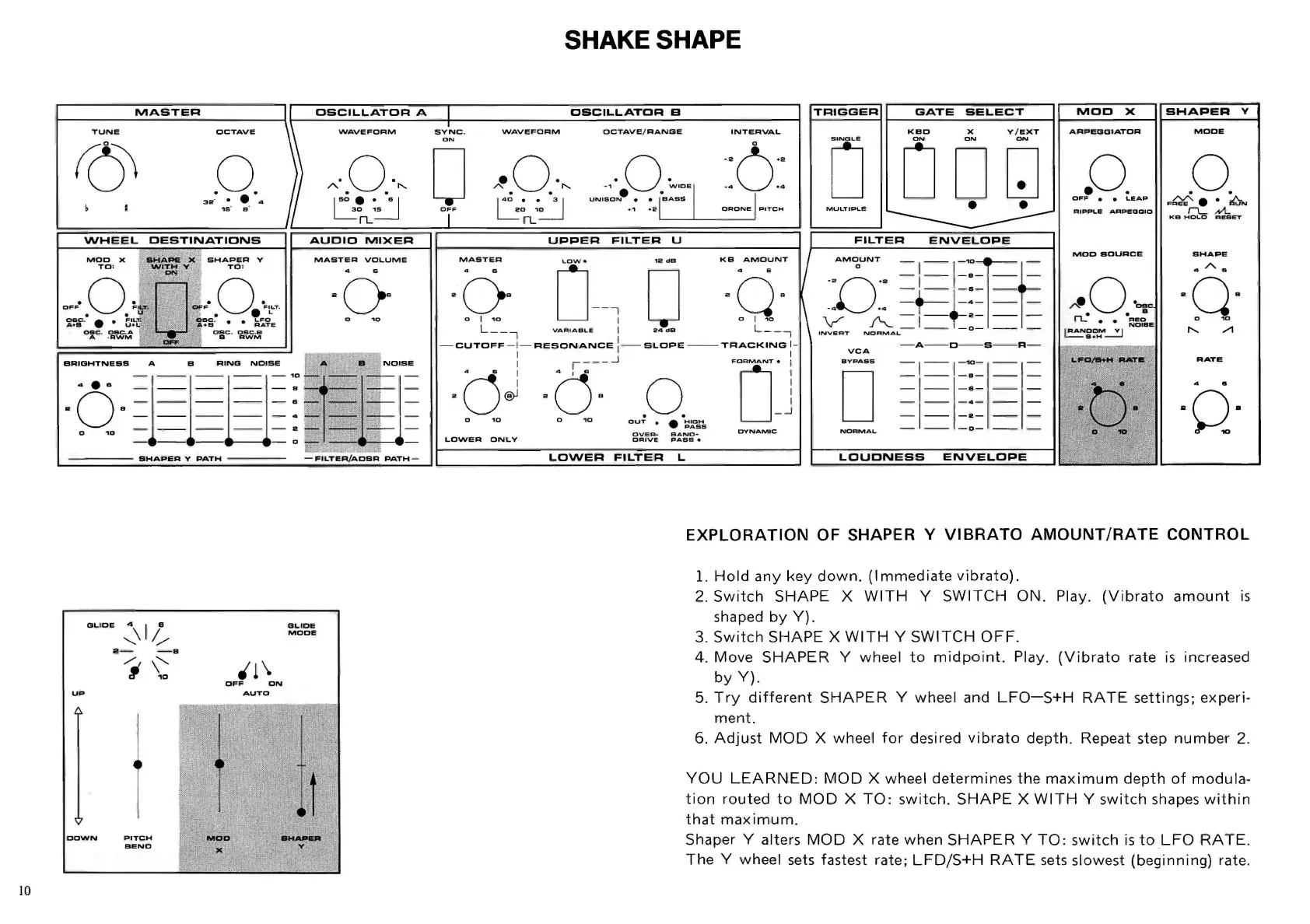

EXPLORATION OF SHAPER Y VIBRATO AMOUNT/RATE CONTROL
1. Hold any key down. (Immediate vibrato).
2. Switch SHAPE X WITH Y SWITCH ON. Play. (Vibrato amount is
shaped by Y).
3. Switch SHAPE X WITH Y SWITCH OFF.
4. Move SHAPER Y wheel to midpoint. Play. (Vibrato rate is increased
by V).
5. Try different SHAPER Y wheel and LFO-S+H RATE settings; experi-
ment.
6. Adjust MOD X wheel for desired vibrato depth . Repeat step number 2.
YOU LEARNED: MOD X wheel determines the maximum depth of modula-
tion routed to MOD X TO: switch. SHAPE X WITH Y switch shapes within
that maximum.
Shaper Y alters MOD X rate when SHAPER Y TO : switch is toLFO RATE.
The Y wheel sets fastest rate; LFD/S+H RATE sets slowest (beginning) rate.
