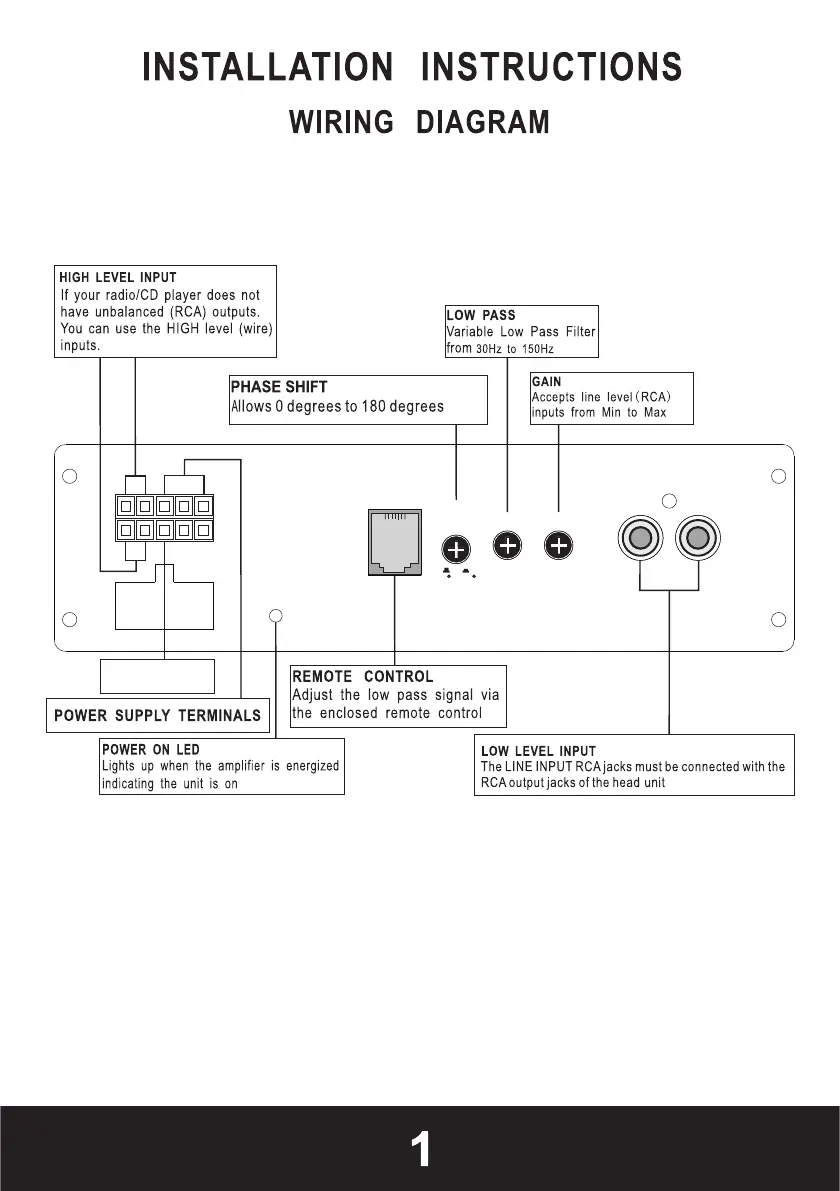

Crunch CR-8A - Installation Instructions and Wiring Diagram; Input Connections; Signal Adjustment Controls; Remote Control and Power Status

REMOTE
LPF GAIN
INPUT
PHASE
SHIFT
R L
+12VGNDR+L+
+12VGND
REM
OUT
R-L-
REM
IN
30Hz 150Hz MIN MAX
0
180
POWER
REM OUTPUT
